Home >> Ford >> 1994 >> F 350 2WD Pickup V8-7.3L DSL >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Master Window Control Switch >> With Remote/Keyless Entry

April 5, 2026: LEMON Manuals is launched! Read the announcement.

With Remote/Keyless Entry

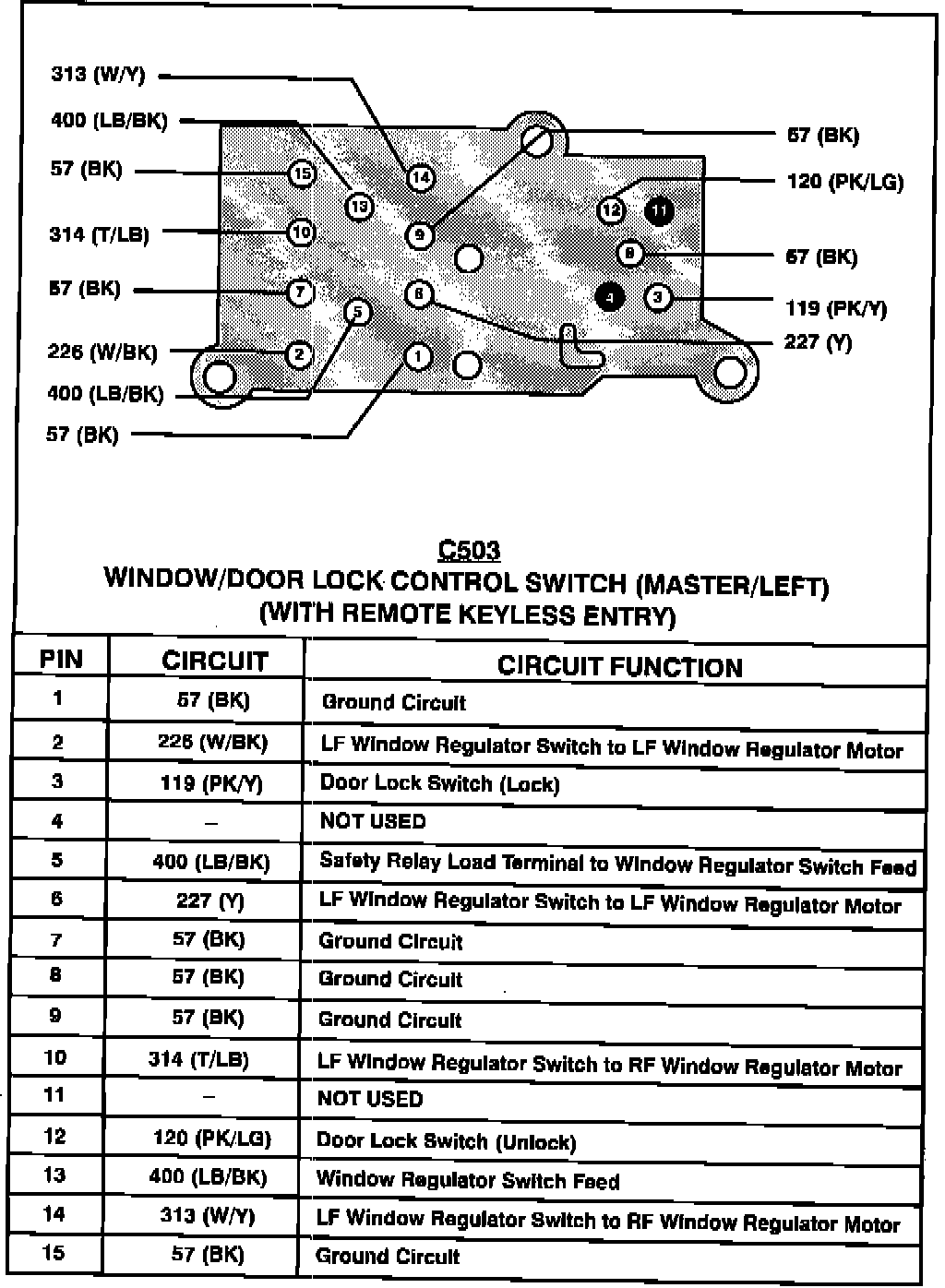

Window/Door Lock Control Switch (Master/Left):
