Diagnostic Aids
Perform this test when instructed during QUICK TEST or if directed by other test procedures. This test is used to diagnose the following:

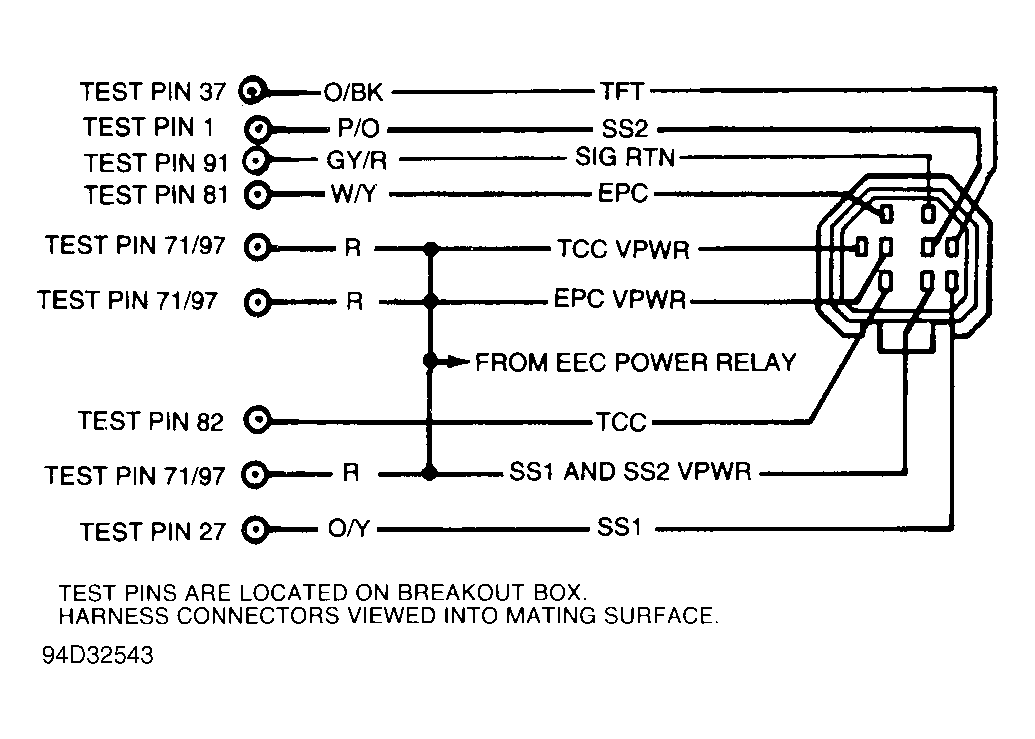

- Wiring harness circuits (EPC, MLP, SS1, SS2, TCC & TFT).
- Faulty PCM.
MLP SENSOR SPECIFICATIONS
| Position | Volts | Ohms |
|---|---|---|
| Park | 4.23-4.68 | 3770-4607 |
| Reverse | 3.52-3.89 | 1304-1593 |
| Neutral | 2.80-3.10 | 660-807 |
| Overdrive | 2.09-2.31 | 361-442 |
| Drive | 1.39-1.53 | 190-232 |
| First | 0.68-0.76 | 78-95 |
