Diagnostic Trouble Code (DTC) Ref Charts (Codes PO306-P1138)

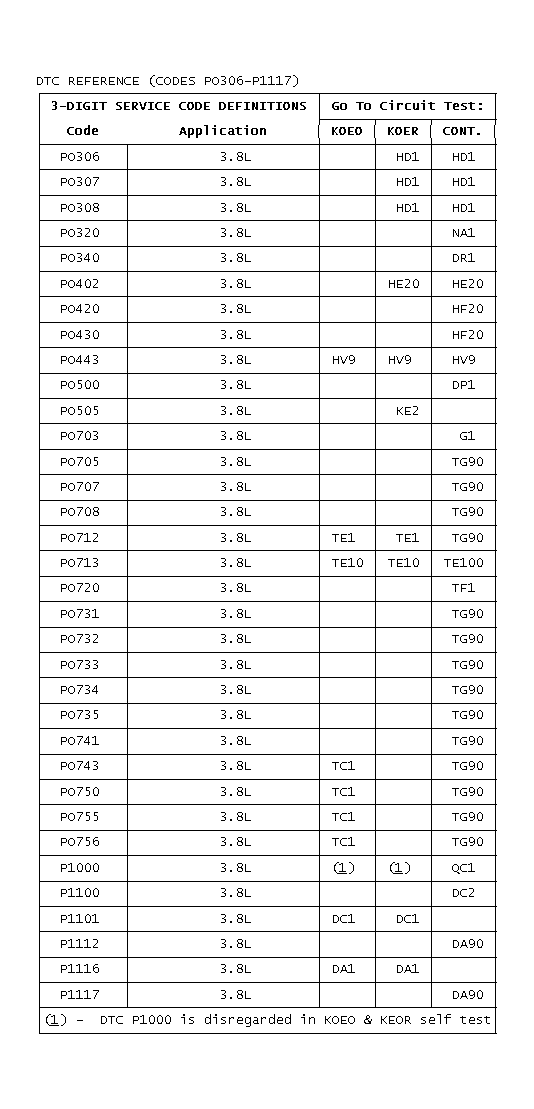

Fig 1: DTC REFERENCE (CODES PO306-P1117)
GB0049152

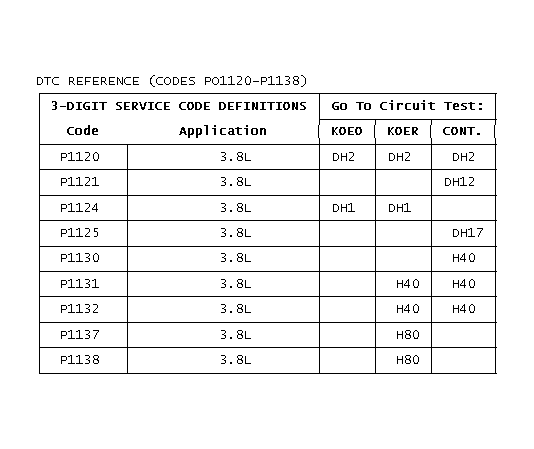

Fig 2: DTC REFERENCE (CODES PO1120-P1138)
GB0049153
