Diagnostic Trouble Code (DTC)(Codes P1150-P1787)

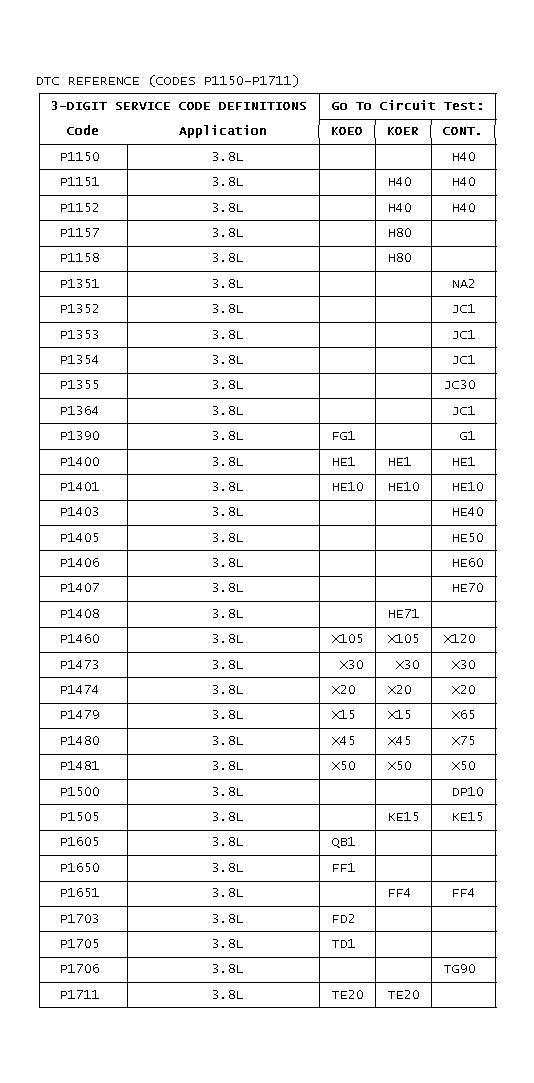

Fig 1: DTC REFERENCE (CODES P1150-P1711)

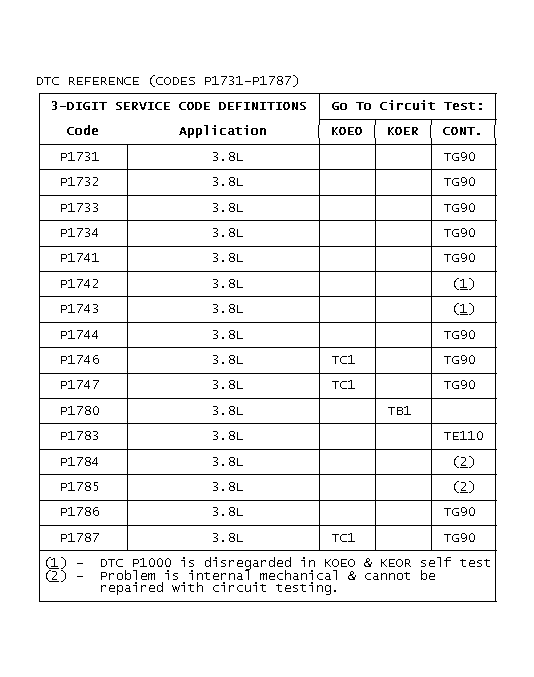

Fig 2: DTC REFERENCE (CODES P1731-P1787)
