Air Flow Meter/Sensor: Locations

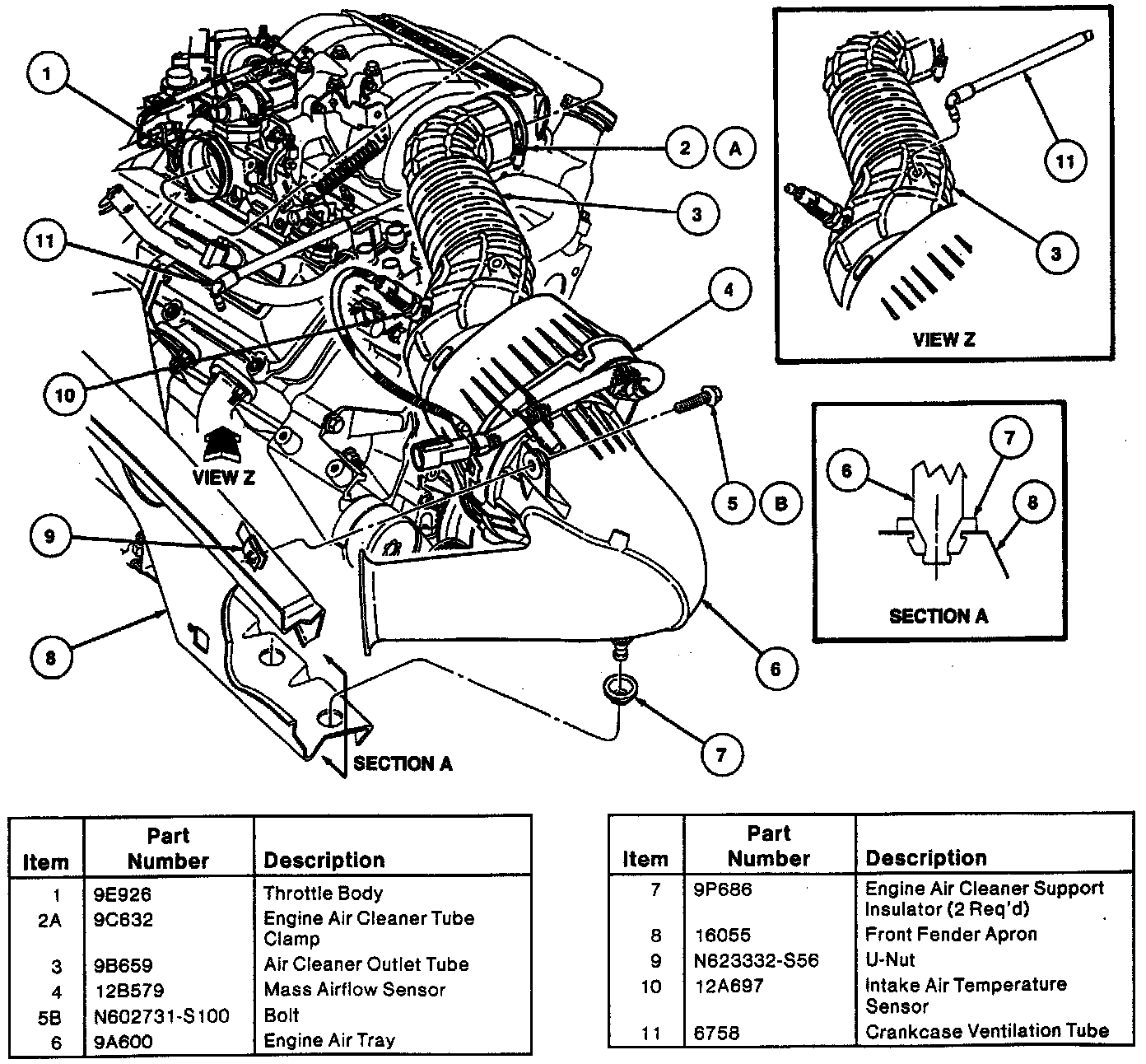

Air Intake Components:






Right hand side of engine compartment, rear of air cleaner assembly.
