Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:

REMOVE

1. Disconnect battery ground cable.

2. Raise vehicle and support with jackstands.

3. Disconnect engine control sensor wiring connector from Crankshaft Position (CKP) sensor.

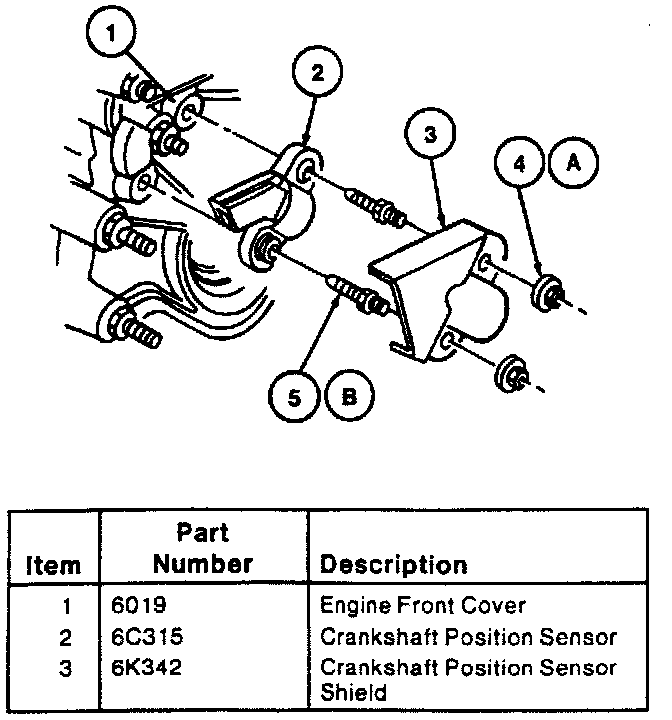

4. Remove CKP sensor shield.

5. Remove CKP sensor retaining bolts and sensor.

INSTALL

1. Position CKP sensor on engine front cover.

2. Install CKP sensor retaining bolts. Tighten to 4.5-7.0 Nm (40-61 in lb).

3. Install CKP sensor shield. Tighten to 2-4 Nm (18-35 in lb).

4. Route CKP sensor wiring harness and connect engine control sensor wiring connector.

5. Lower vehicle.

6. Connect battery ground cable.
