Electrical Diagrams

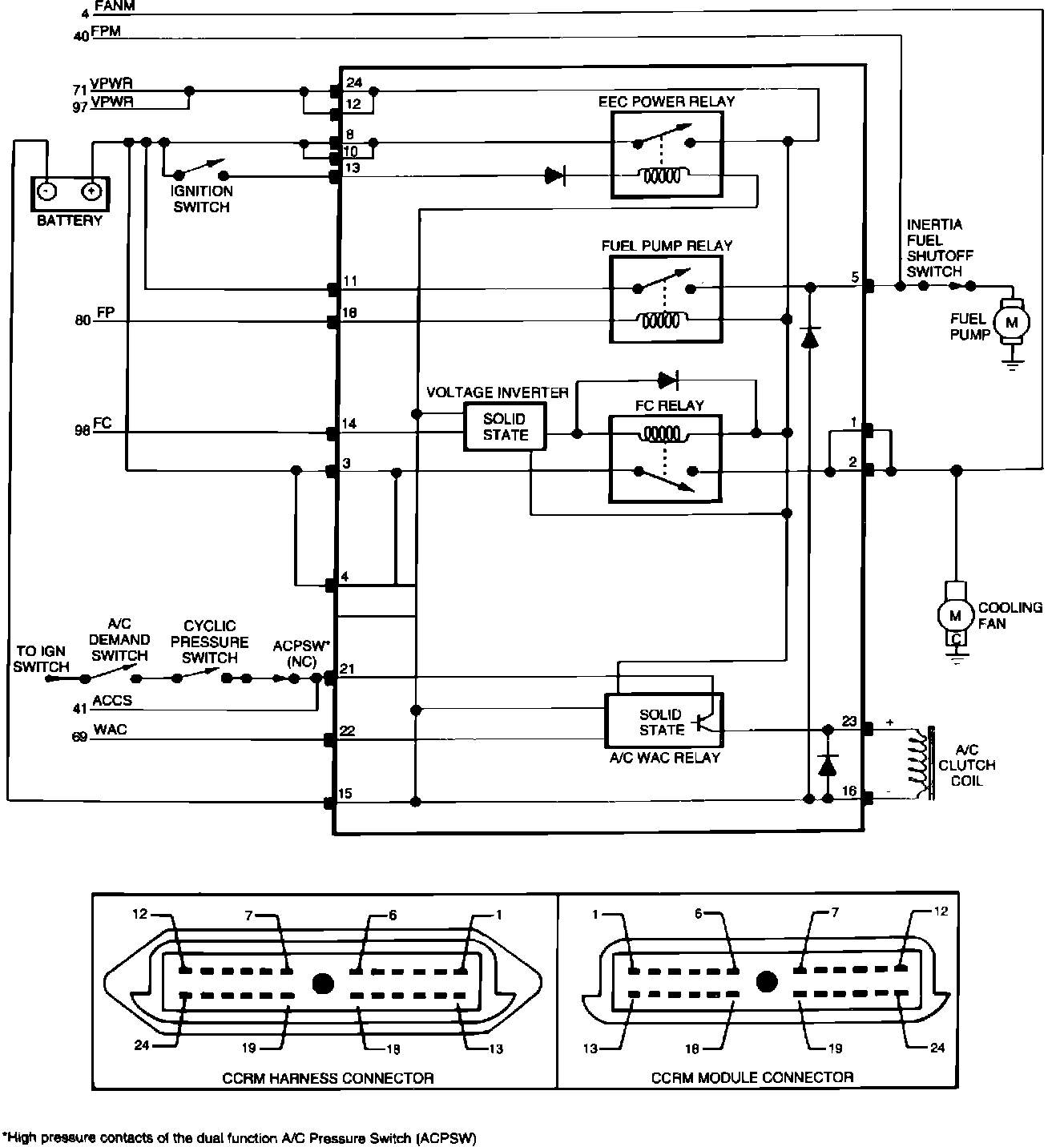

Constant Control Relay Module Schematic:

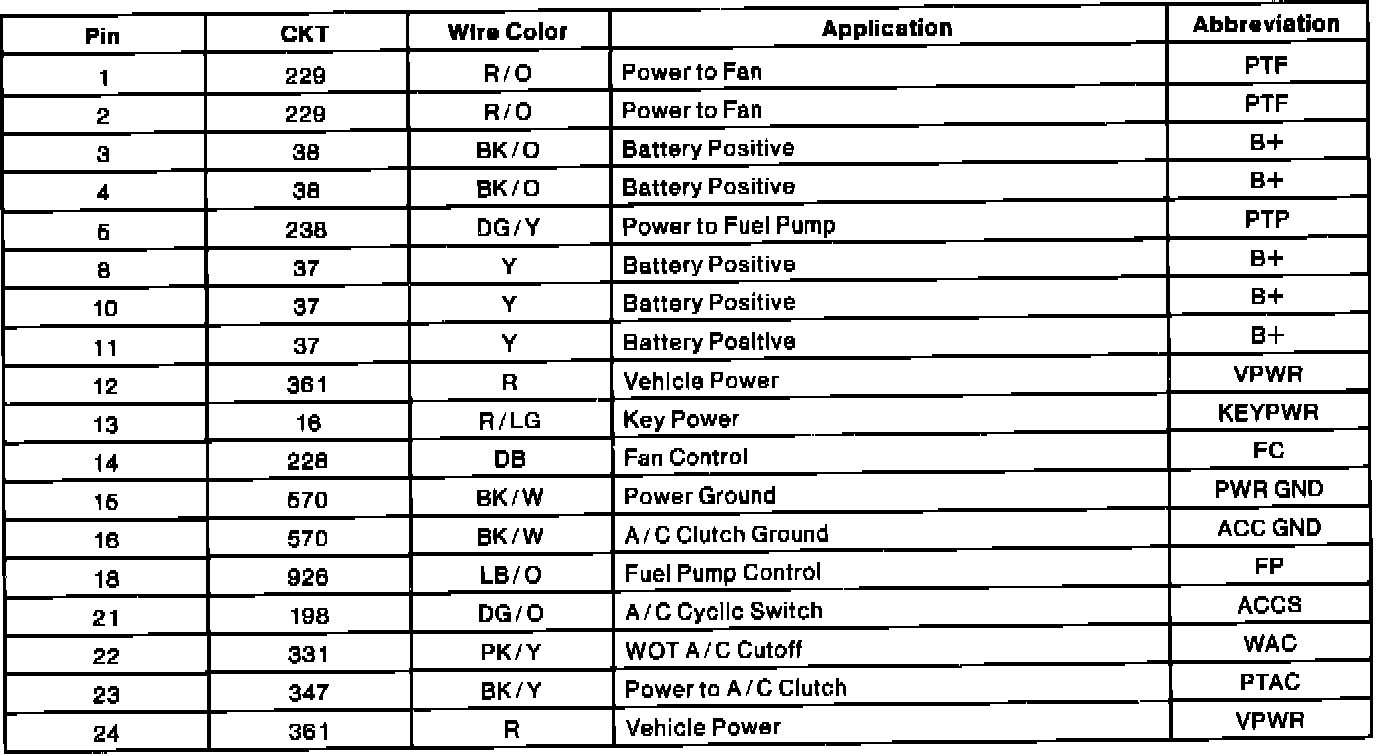

Constant Control Relay Module Pin Usage:
