Expanded Diagnostic Protocol Table For NGS PIDs

Parameter Identification Access Mode 1:

Parameter Identification Access Mode 1:

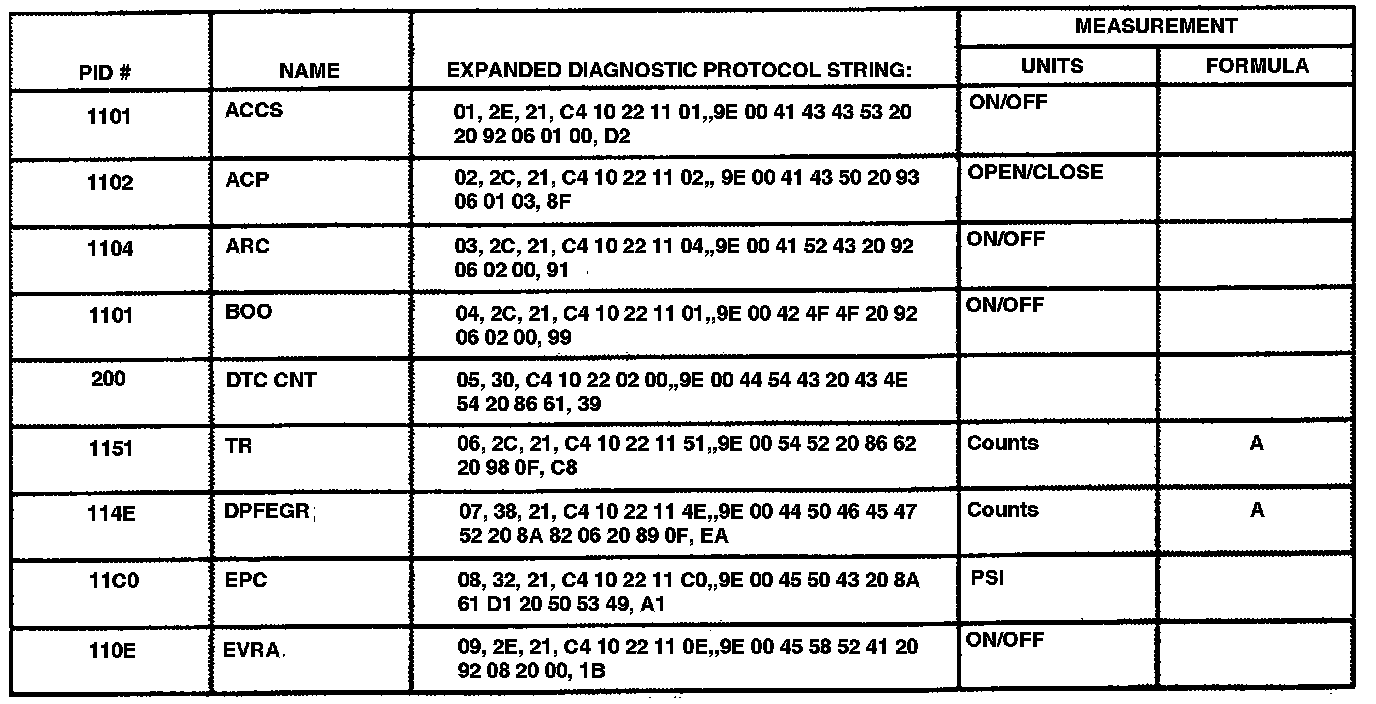

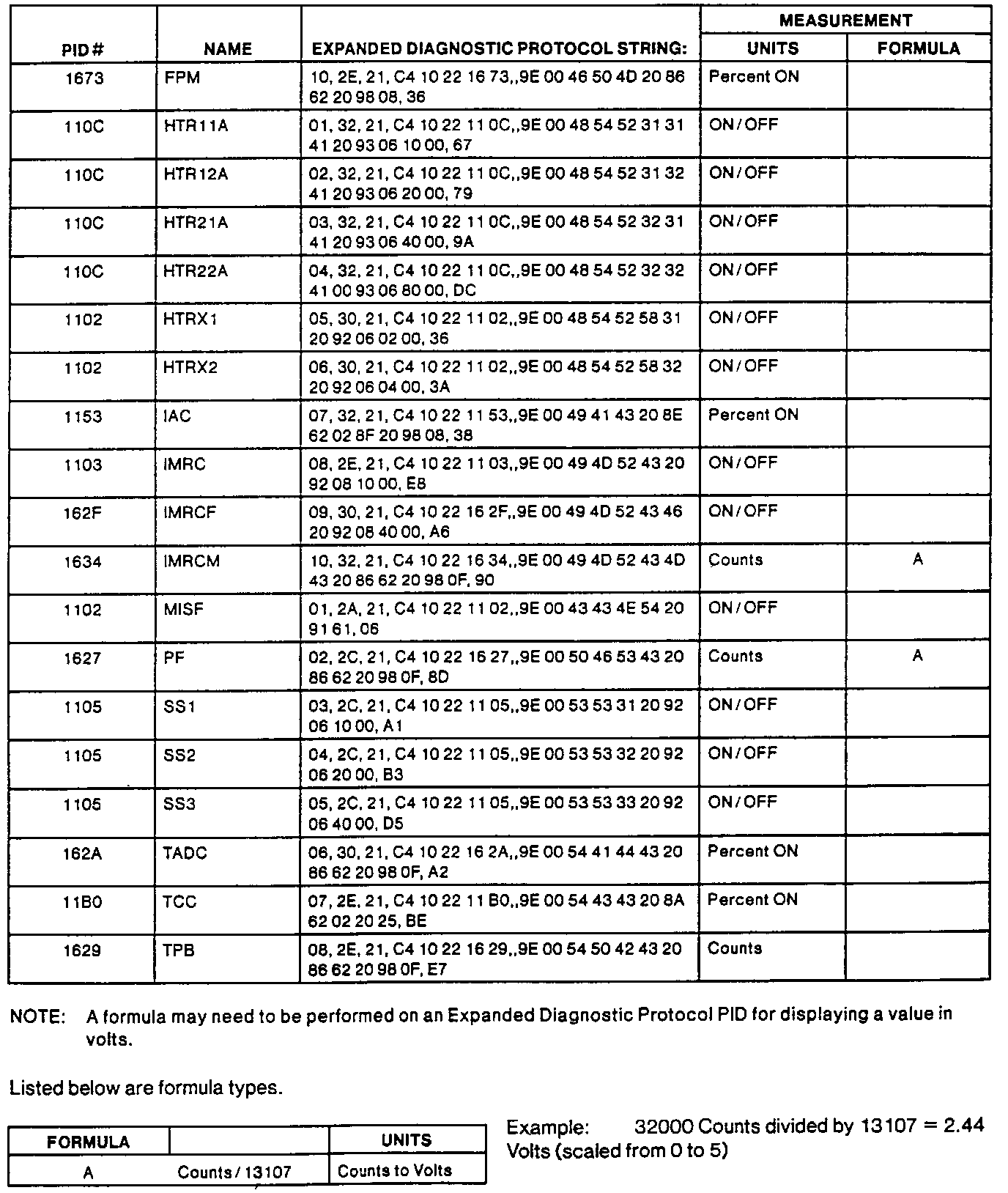

The table lists the string of characters entered in a generic scan tool when accessing the enhanced diagnostic PID information that may not be common on all OBD II vehicles.

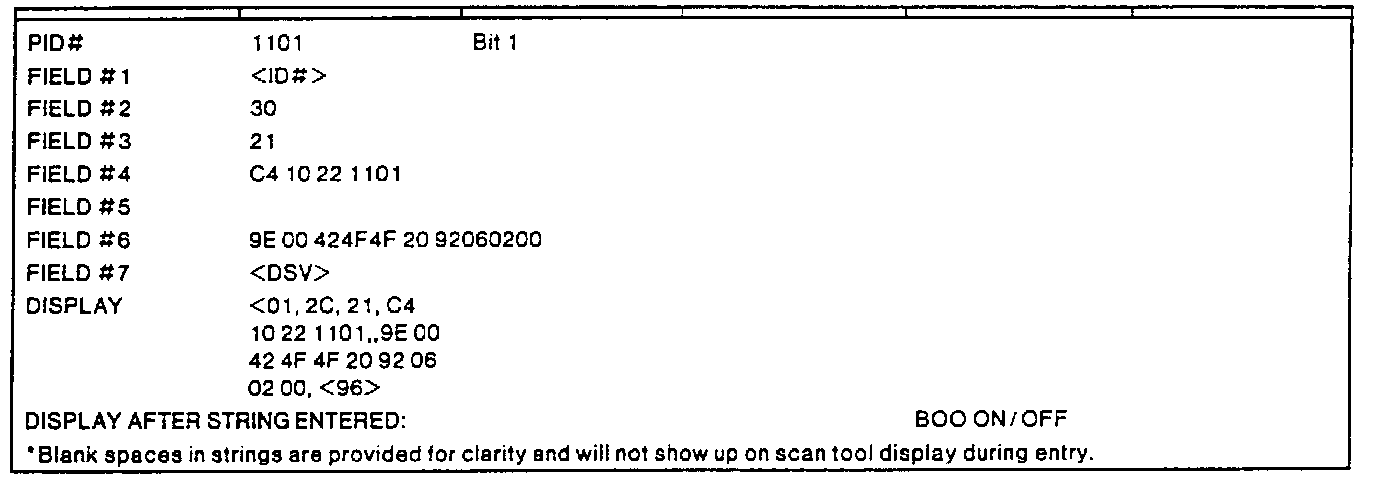

Character String Example:

The XX represents the string I.D. number and the represents the string length determined by the scan tool.
