A/T Torque Data

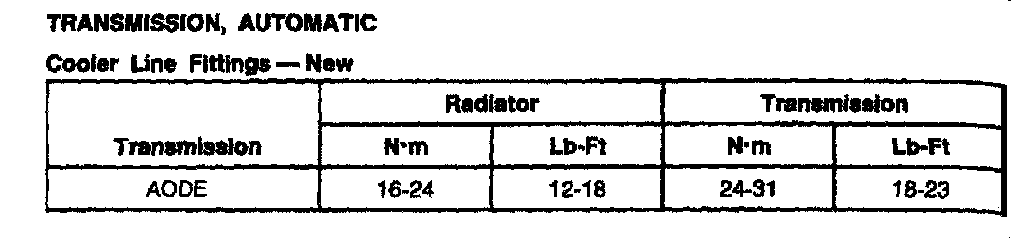

AODE 4-spd A/T, Cooler Line Fittings:

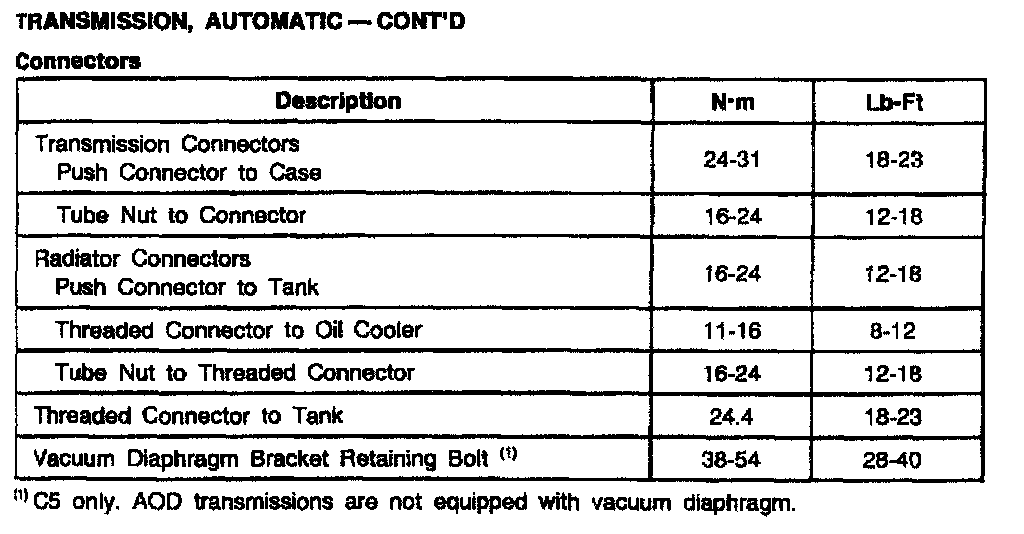

AODE 4-spd A/T, Transmission Connectors:

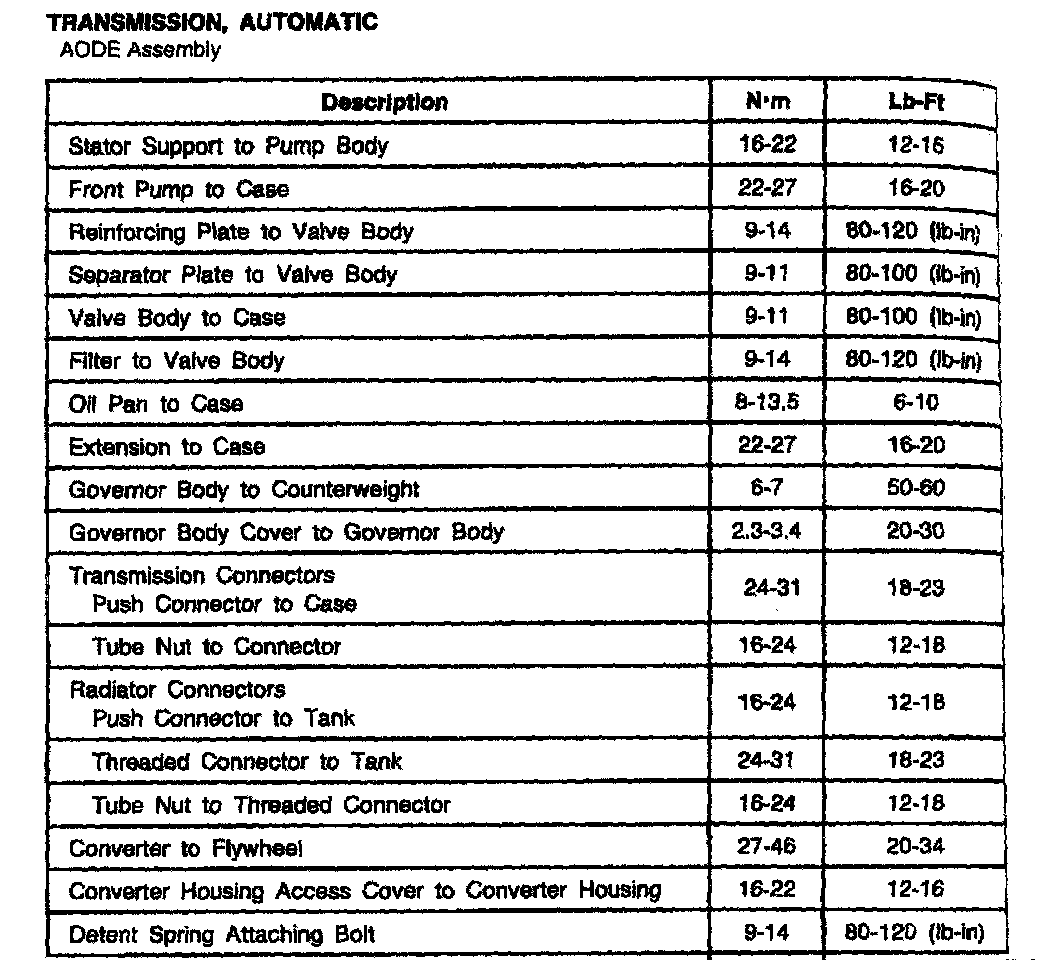

AODE 4-spd A/T, Transmission Assembly:
