Wiper Control Module: Locations

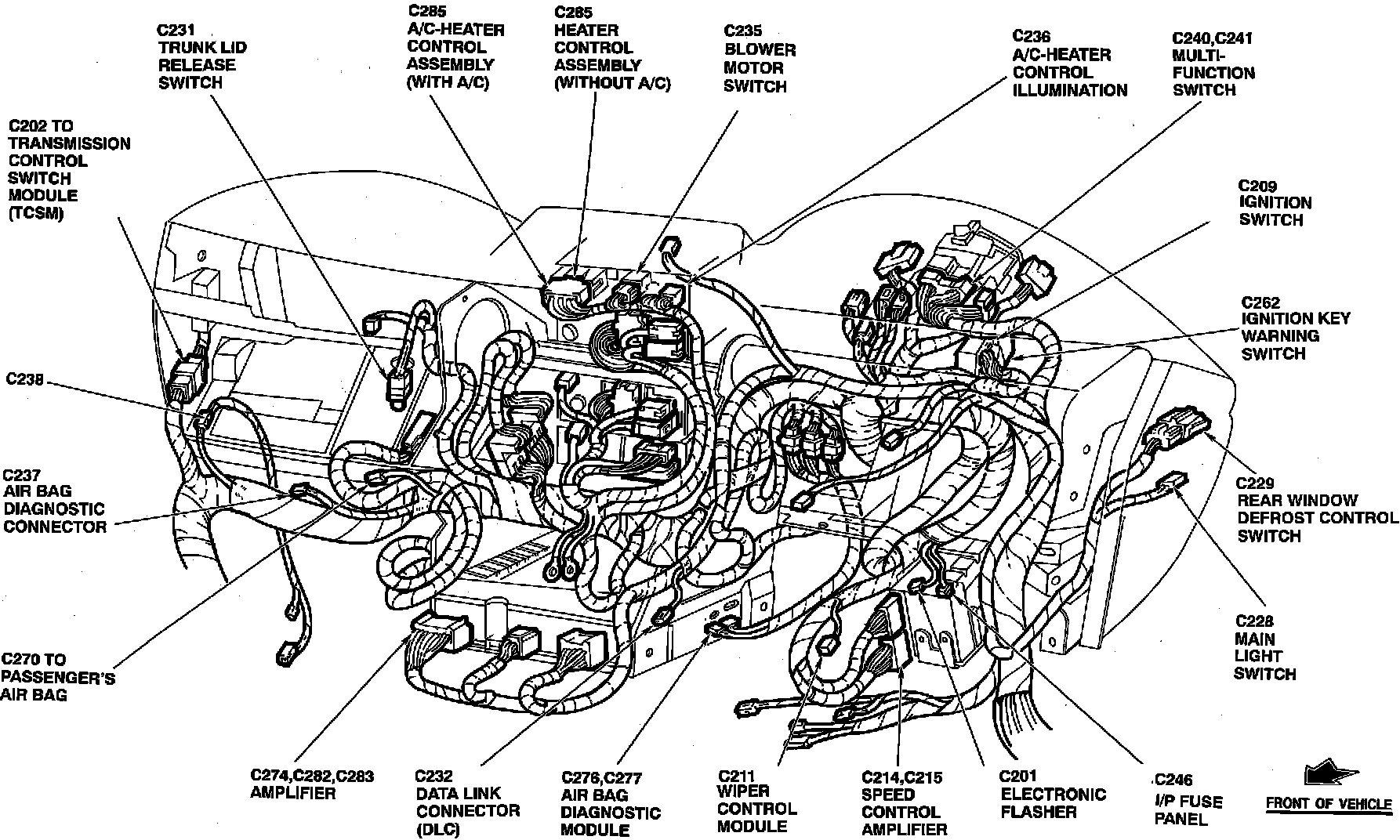

Component Locations - Instrument Panel:
The Wiper Control Module is located behind the instrument panel, near the top of the LH cowl panel.
