Air Flow Meter/Sensor: Diagrams

Black Connector Testing Schematic:

BLACK CONNECTOR

Gray Connector Testing Schematic:

GRAY CONNECTOR

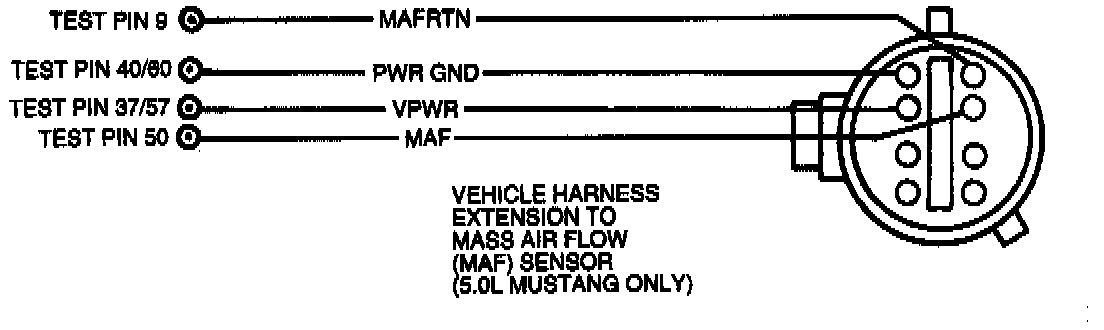

Harness Extension Connector:

HARNESS CONNECTOR
