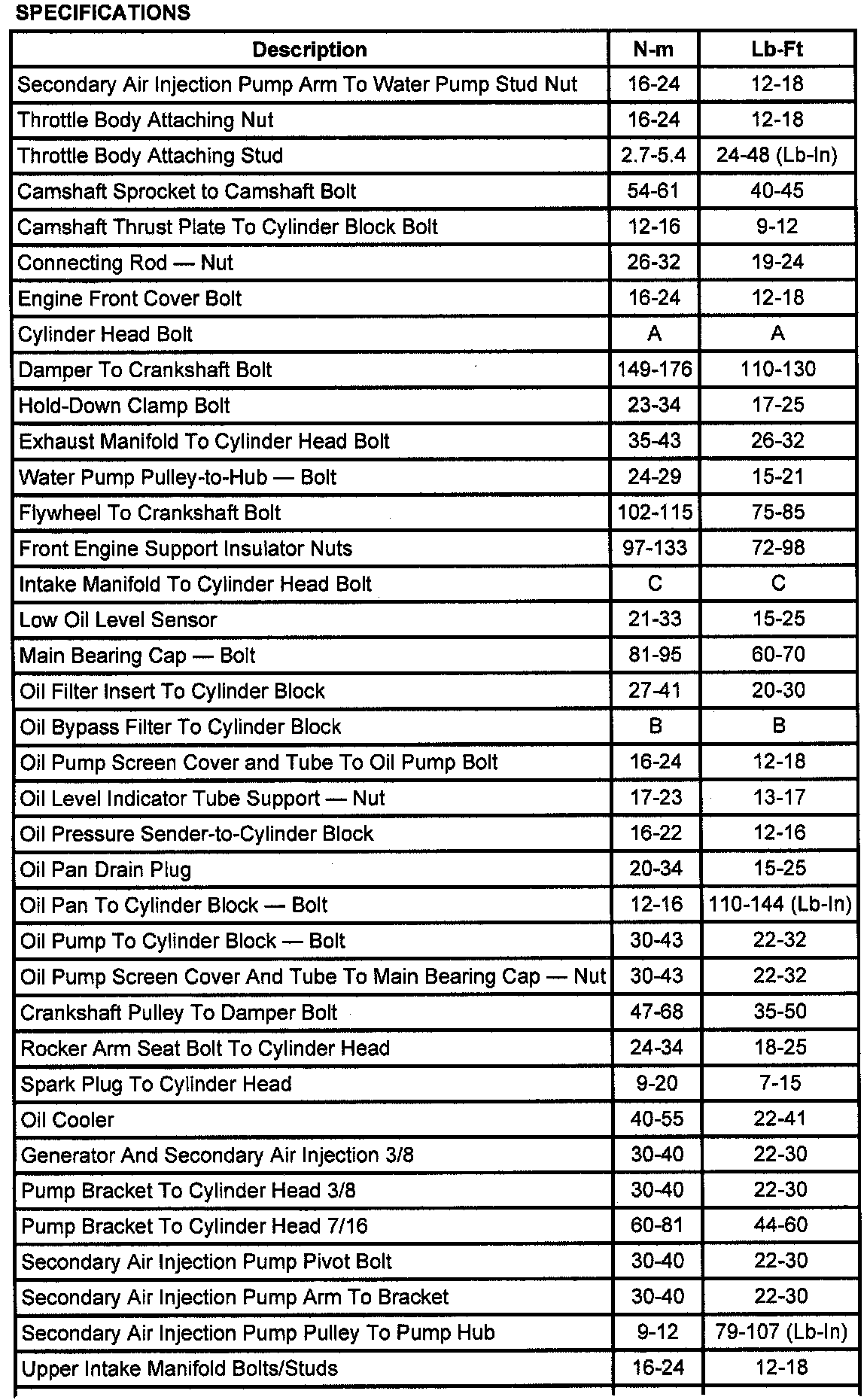

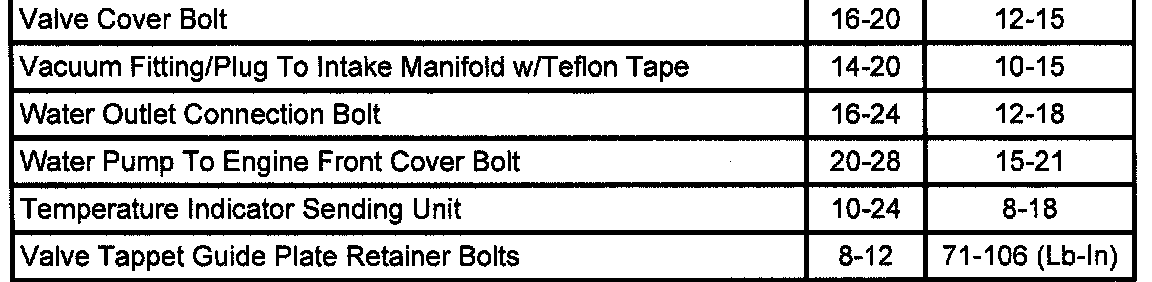

Torque Specifications

A. Flanged Hex Head Bolt (new bolts required)
1. Tighten all bolts in sequence to 34-47 Nm (25-35 Lb-Ft).
2. Tighten all bolts in sequence to 61-75 Nm (45-55 Lb-Ft).
3. Tighten all bolts in sequence an additional 1/4 turn (85-95 degrees).
B. 1/2 turn after gasket contacts sealing surface.
C. Tighten in three steps:
- First step 11 Nm (8 Lb-Ft).
- Second step 22 Nm (16 Lb-Ft).
- Third step 31-34 Nm (23-25 Lb-Ft).
