Diagnostic Aids

WARNING: This page is about a different car, the 1995 Lincoln Mark VIII. However, it is still accessible from the selected car via links, so may be relevant.

Circuits are identified in all capital letters (acronyms). For example, Profile Ignition Pickup is identified as PIP.

Manufacturer's breakout box overlay test terminals are identified by a "J" prefix. For example, J31 (PIP). The J31 indicates that the measurement is to be taken at terminal No. 31 at the breakout box. The (PIP) indicates that the Profile Ignition Pickup circuit is being checked.

When the letter "I" follows the circuit identification, it implies that the measurement is being taken at the ICM. For example, J31 (PIP I). The (PIP I) implies that the measurement is of the PIP circuit at the ICM.

When the letter "S" follows the circuit identification, it implies that the measurement is being taken at the CKP sensor. For example, J32 (CKP+ S). The (CKP+ S) implies that the measurement is of the CKP sensor positive circuit at the CKP sensor.

When the letter "C" follows the circuit identification, it implies that the measurement is being taken at the coil. For example, J10 (LC3C). The (LC3C) implies that the measurement is of the C3 circuit at the left coil pack.

The following information should also be noted during testing:

NOTE: A 12-volt incandescent (high voltage) test light should not be used to test circuit signals. It will load circuit and may cause incorrect measurements or faulty EI/PCM operation (engine stall).
EI PINPOINT TEST INDEX

Result Pinpoint Test/Step
No Start
No Codes A/1
PASS Code 111 A/1
Code 226 A/1
Code 211 (PIP Signal At PCM Fault) A/1
Malfunction Indicator Light (MIL) On During Cranking A/1
Engine Runs
Code 212 Or 226 (IDM Signal Fault At PCM) B/1
Code 213 (SPOUT Circuit Fault) C/1
Code 215 And/Or 216 (Coil 1 Or Coil 2 Fault) D/19
Code 217 And/Or 238 (Coil 3 Or Coil 4 Fault) D/3
Lack Of Power Or Poor Fuel Economy C/1
NOTE: Steps in pinpoint tests are designed to correct one ignition failure at a time. When a component is replaced or service is completed, remove all test equipment. Reconnect all components, and perform QUICK TEST. See TESTS W/CODES - EEC-IV article.
WARNING: DO NOT connect PCM to EI diagnostic cable; 60-pin connector on this harness may be connected to a breakout box only. If PCM is connected to EI diagnostic cable, PCM may be damaged. Some tests may require a second breakout box to be connected to PCM 60-pin connector. When a second breakout box is used, PCM should be disconnected at all times. Never connect PCM to breakout box when performing EI diagnostics.
Fig 1: EI Diagnostic Cable Diagram
G93D41486
Fig 2: EI Wiring Diagram
G93E41487

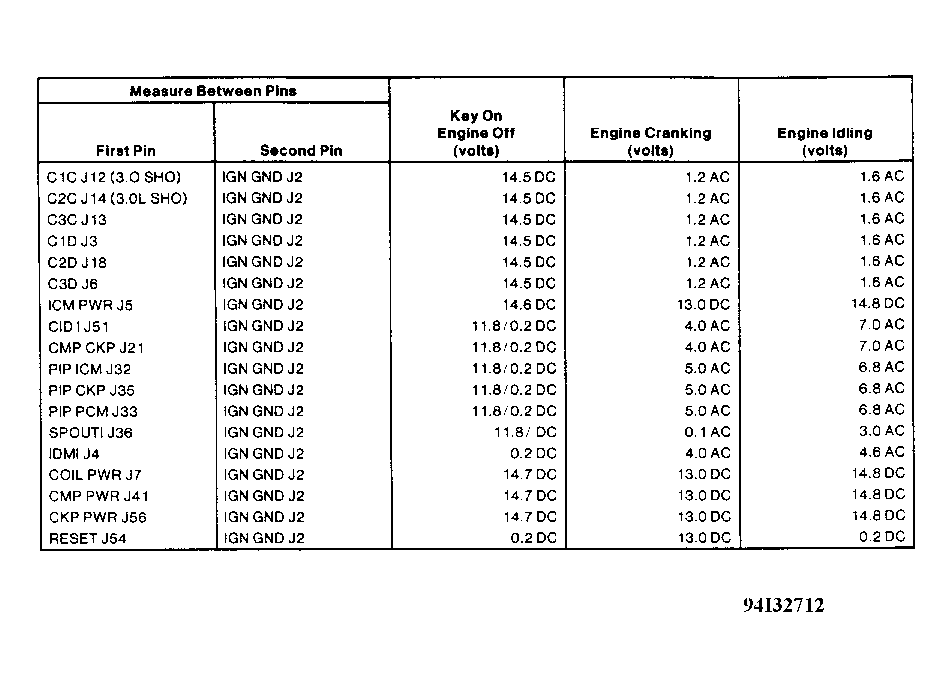

Fig 3: EI System Pin Voltage Chart
G94I32712
Fig 4: EI Signal Diagram
G93J41490
Fig 5: EI Block Diagram
G93B41492
