Wiper Switch Test
WARNING: This page is about a different car, the 1994 Mercury Tracer and 1994 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.

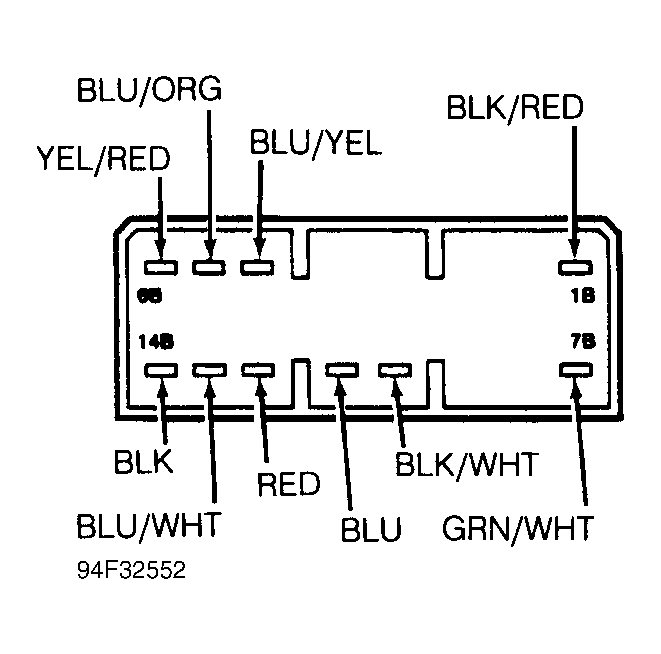

Unplug wiper switch. Measure resistance between specified switch terminals. See WIPER SWITCH TEST table. See Fig 1. If resistance is less than 5 ohms between each terminal pair, wiper switch is okay. If resistance is 5 ohms or more between any terminal pair, replace wiper switch.
NOTE:
Wiper switch internal connections are such that INT position cannot be tested with an ohmmeter. If wiper motor and wiring are okay, but INT function does not operate, replace wiper switch.
WIPER SWITCH TEST
| Switch Position | Wire Colors |
|---|---|
| HI | Blue & Red |
| LO | Blue & Blue/White |
| MIST | Blue & Red |
| WASH | Blue & Blue/Orange |
| OFF | Blue/Yellow & Blue/White |
