Connector Identification
WARNING: This page is about a different variant/trim than selected.

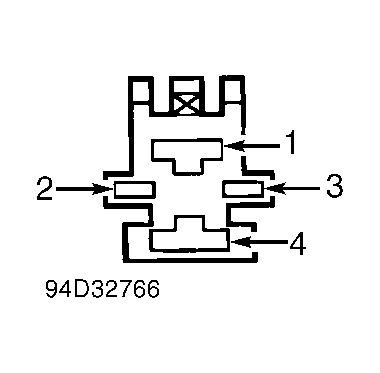

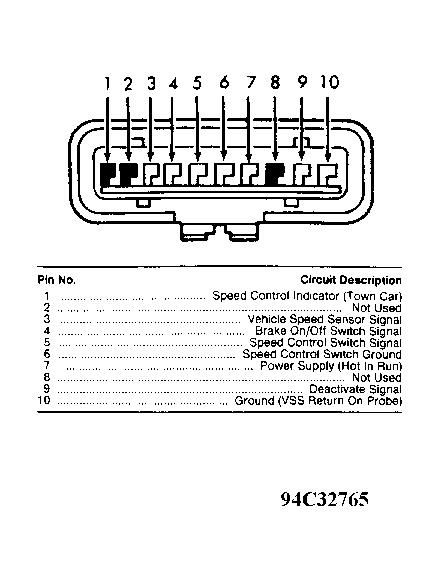

Courtesy of FORD MOTOR CO. SERVO CONNECTOR TERMINALS CHART
| Pin No. |
Circuit Description |
| 2 |
Not Used |
| 3 |
Vehicle Speed Sensor Signal |
| 4 |
Brake On/Off Switch Signal |
| 5 |
Speed Control Switch Signal |
| 6 |
Speed Control Switch Ground |
| 7 |
Power Supply (Hot In Run) |
| 8 |
Not Used |
| 9 |
Deactivate Signal |
| 10 |
VSS Return |
Courtesy of FORD MOTOR CO.
