Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Alarm Module, (Vehicle Antitheft)

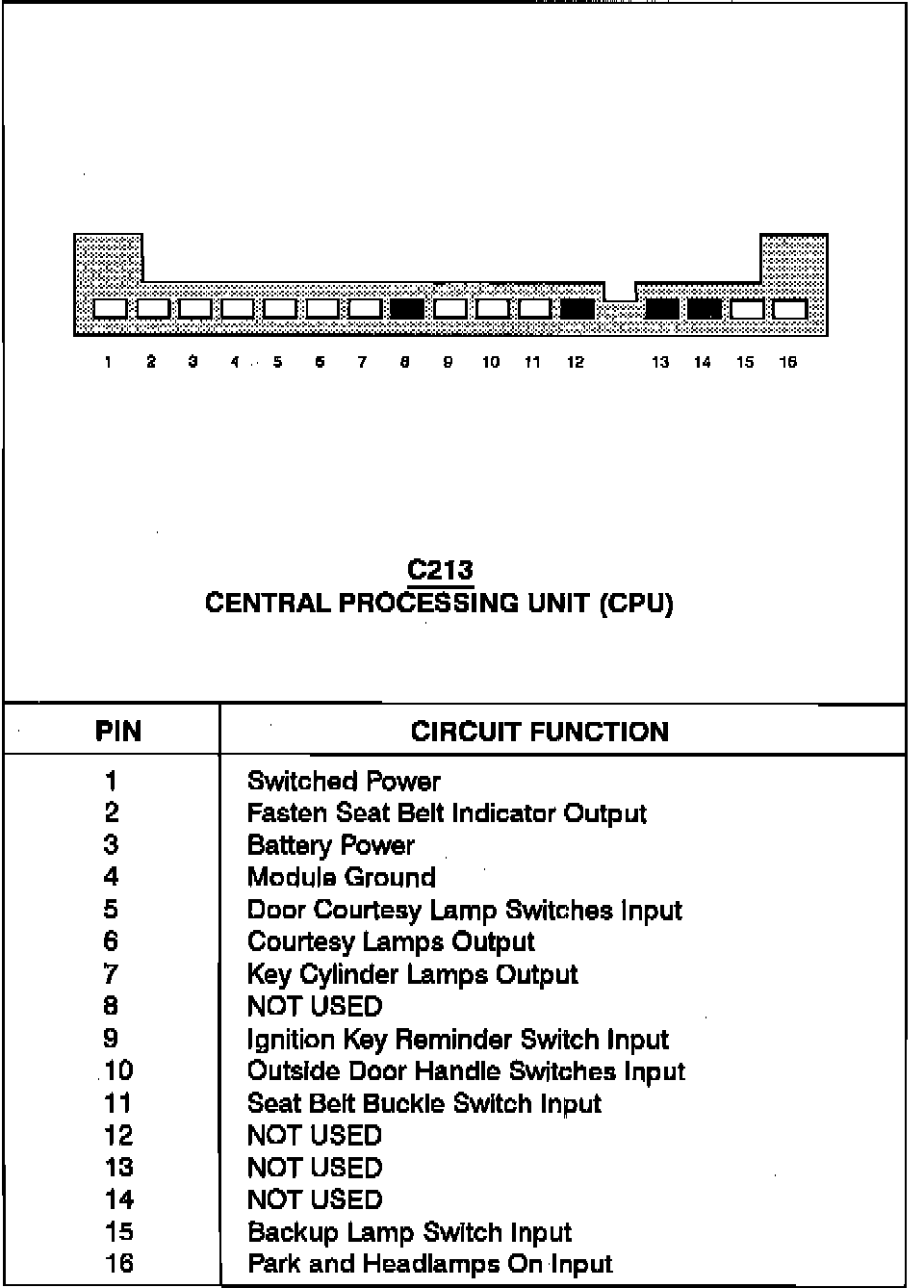

Central Processing Unit (CPU):

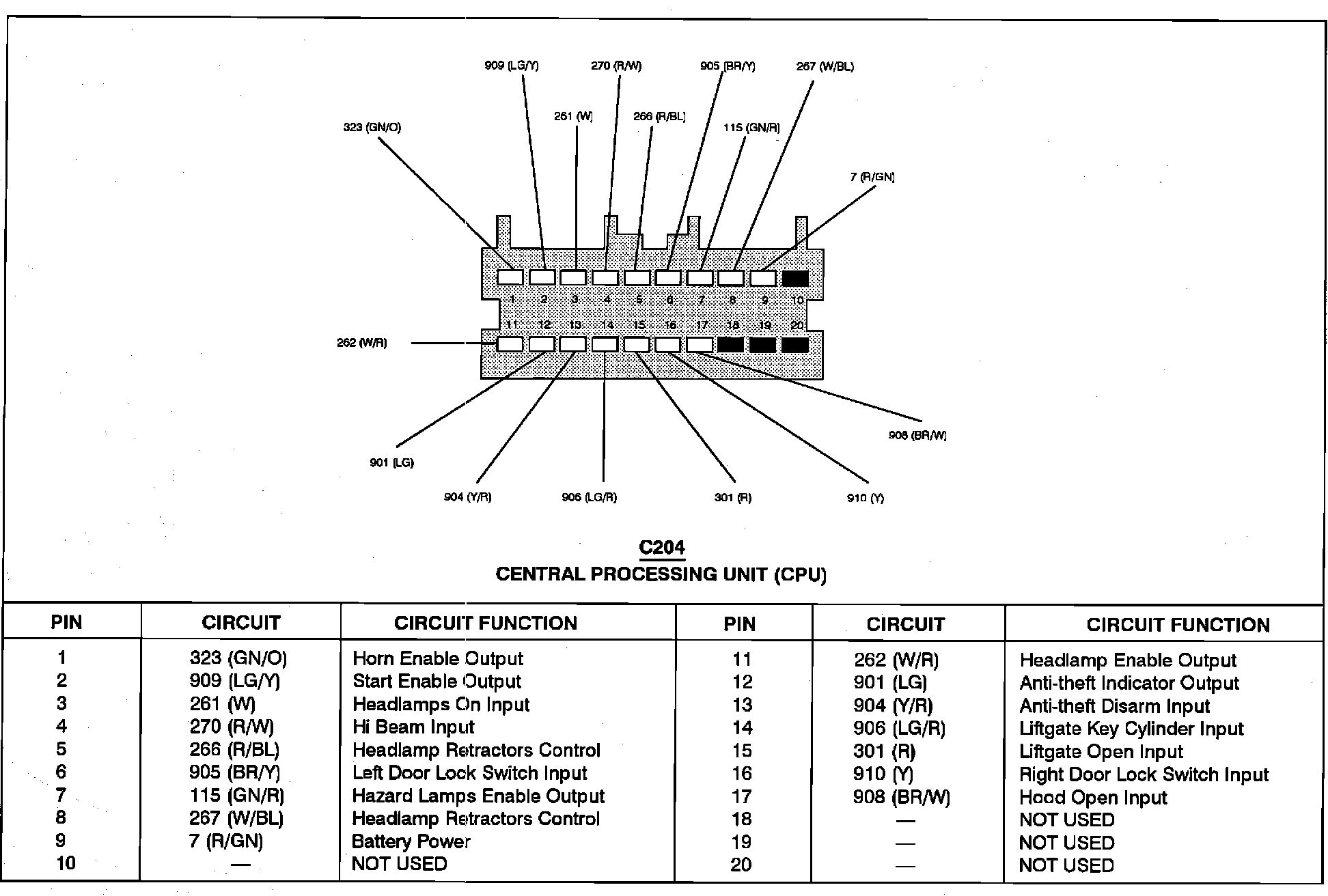

Central Processing Unit (CPU):
