Timing Component Alignment Marks: Locations

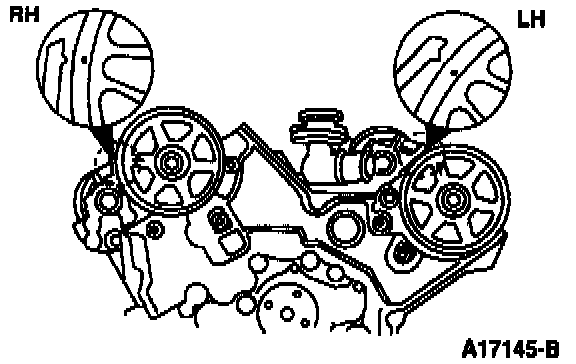

Camshaft Timing Marks:

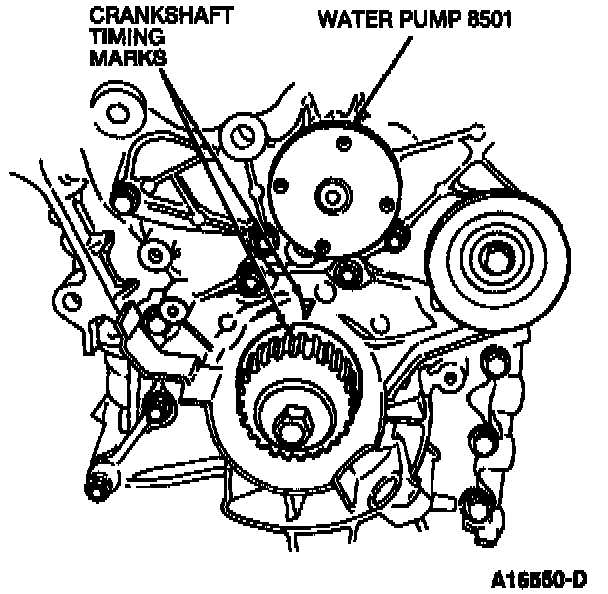

Crankshaft Timing Marks:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
