Automatic Transmission

NOTE: For tests involving switches, the values will be: switch OFF (released)/switch ON (depressed).

Inputs

Diagnostic Reference Values:

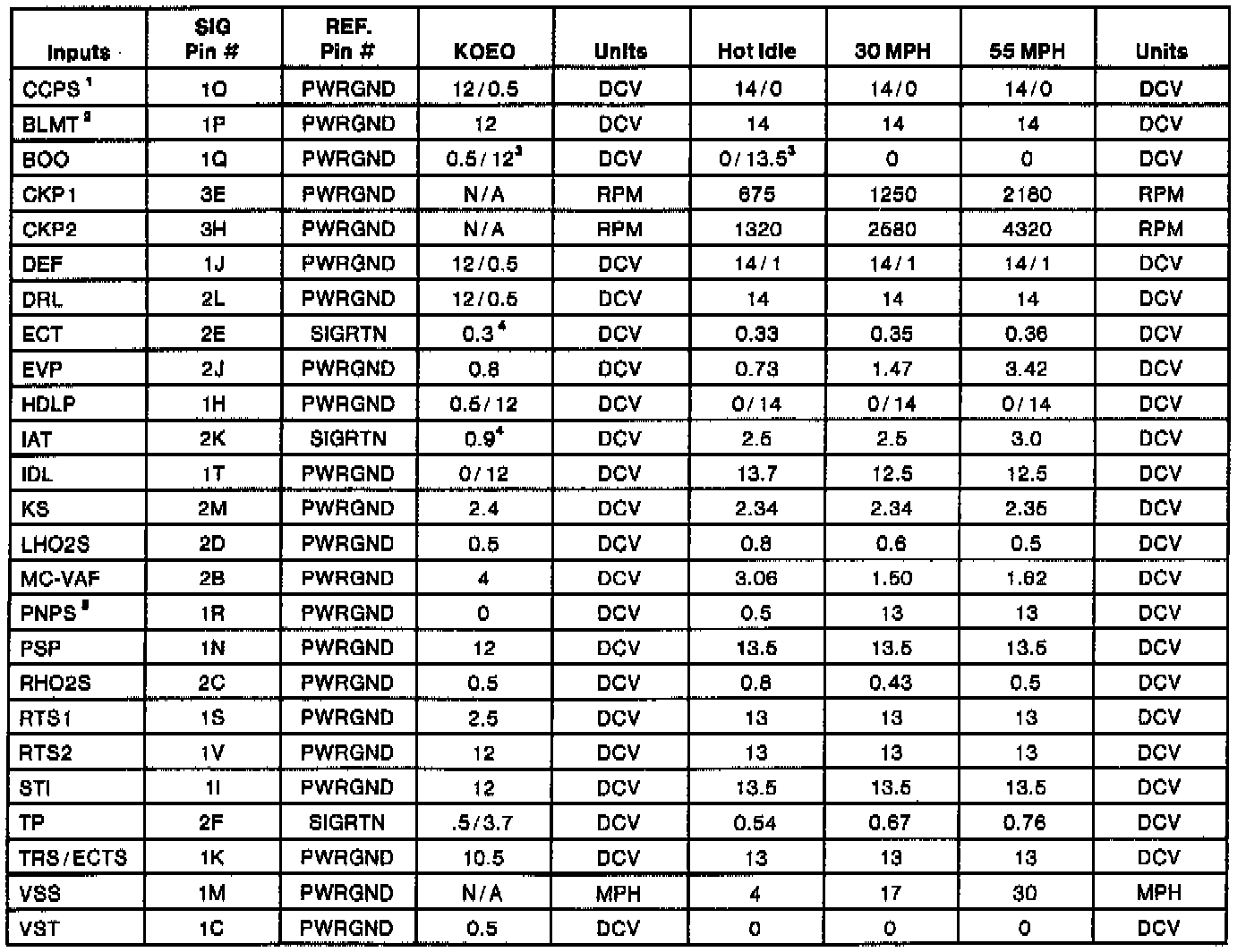

2.5L 4EAT Diagnostic Reference Values

1 Switch is ON with A/C ON, blower ON.

2 0 volts in position 3 or more.

3 12 volts with brake pedal depressed, 0 volts with brake pedal released

4 At 20°C(68°F).

5 0 volts in P or N position; 12 volts in R, D, 1 or 2.

Outputs

Diagnostic Reference Values:

1 Switch is ON with A/C ON, blower ON.

2 Value switches between 1 volt and 13 volts.


NOTE: Reference values shown may vary approximately +/- 2O percent depending on operating conditions and other factors.
