Ford 7.5 Inch

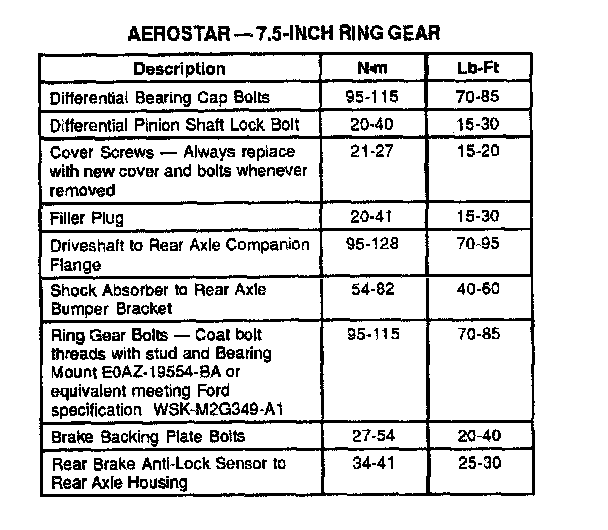

Ford 7.5 Inch, Differential Torque (Aerostar):

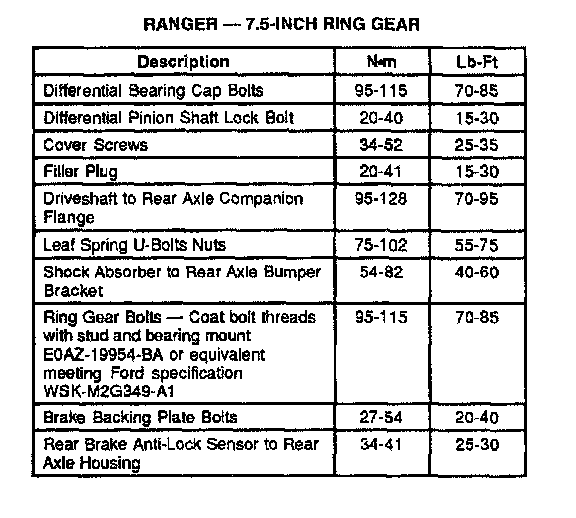

Ford 7.5 Inch, Differential Torque (Ranger):

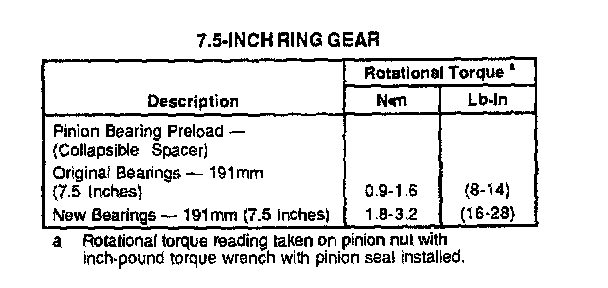

Ford 7.5 Inch, Pinion Bearing Preload:

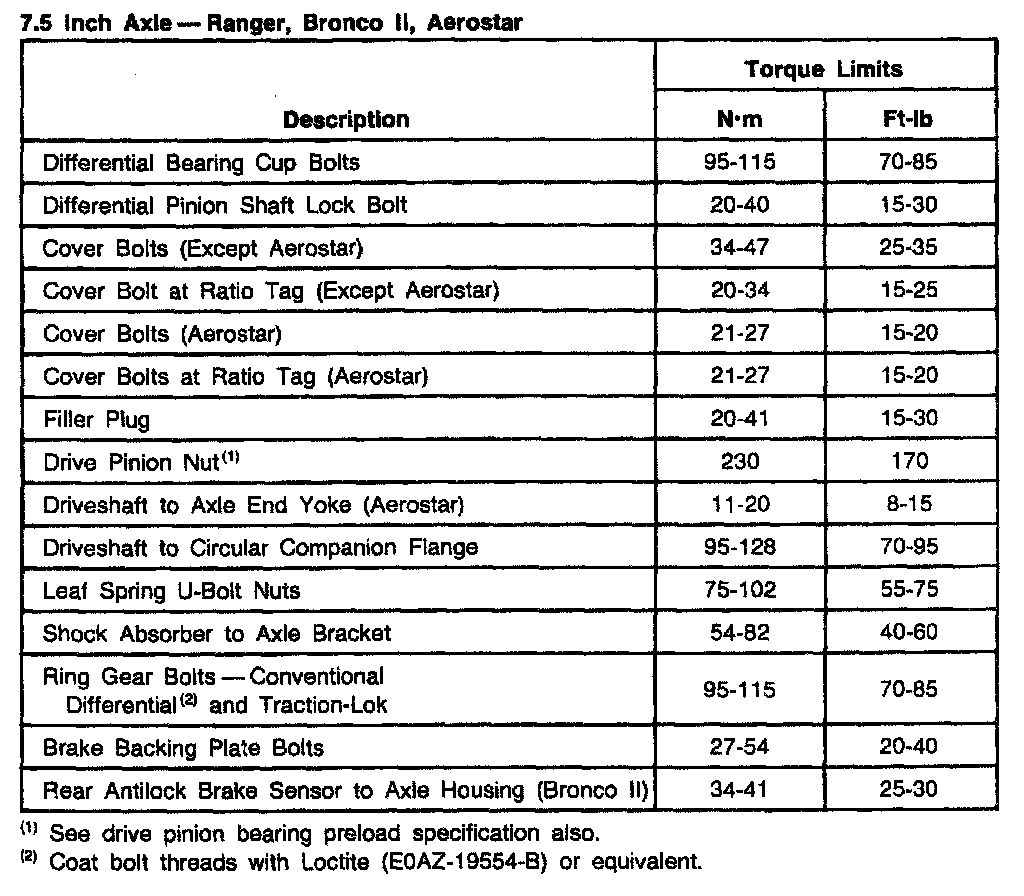

Ford 7.5 Inch, Differential Torque:
