Control Module, Transfer Case

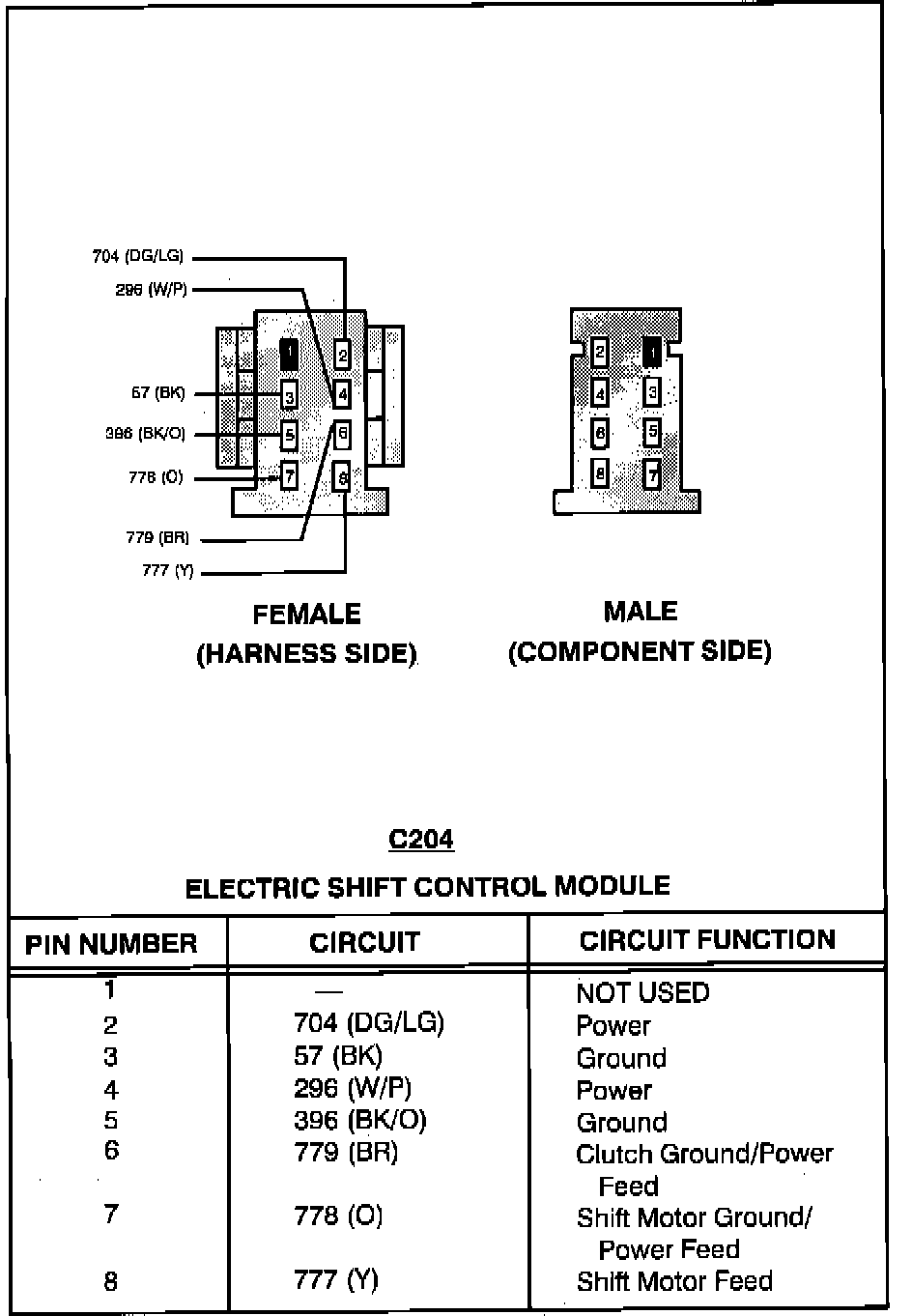

Electronic Shift Control Module C204:

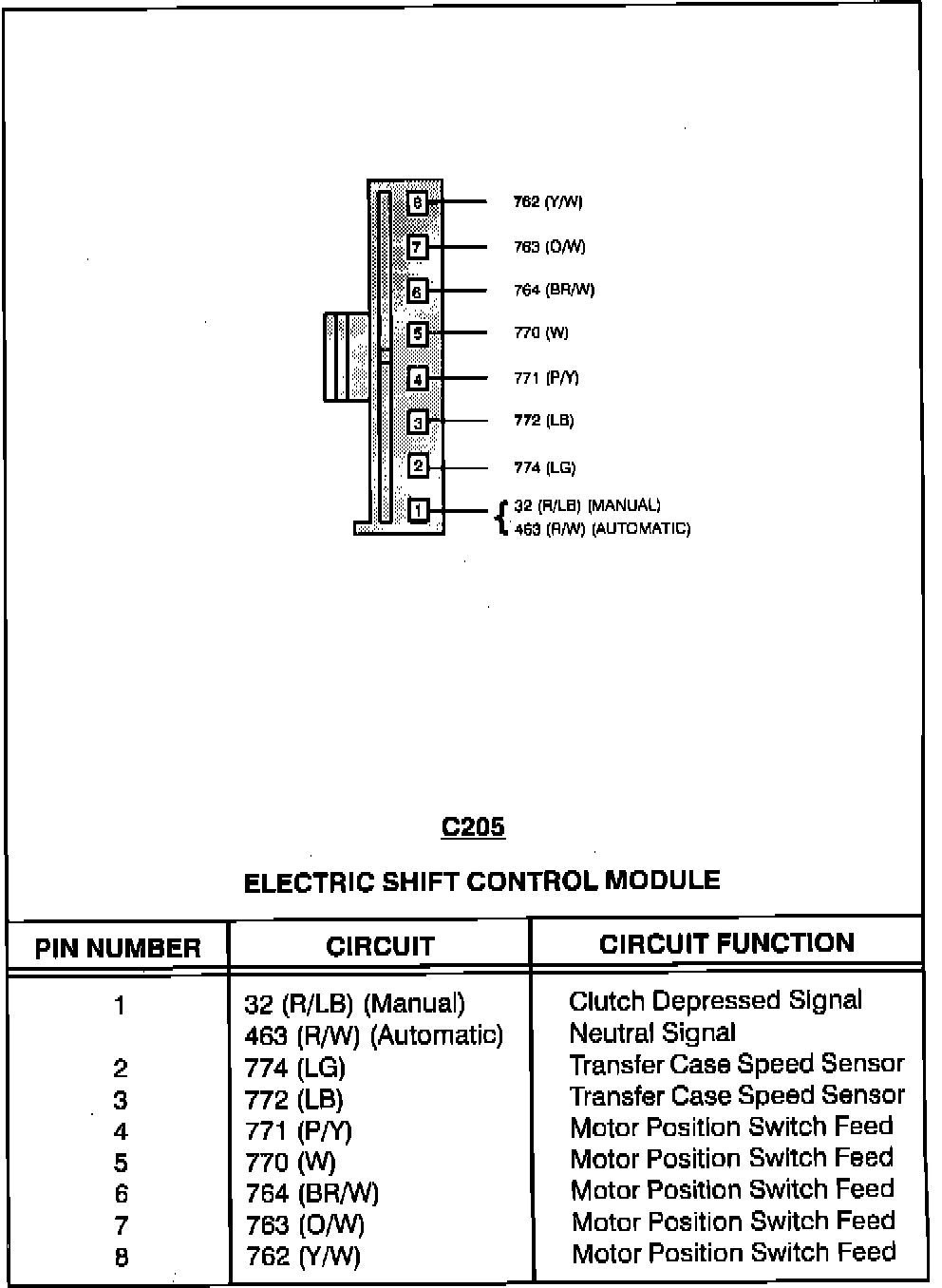

Electronic Shift Control Module C205:

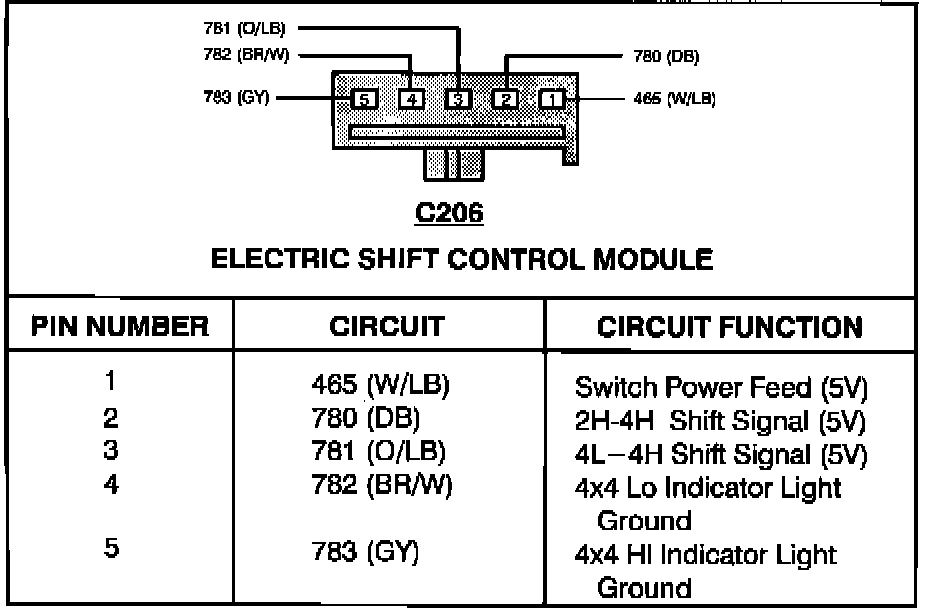

Electronic Shift Control Module C206:
