Supercab

Component Locations:

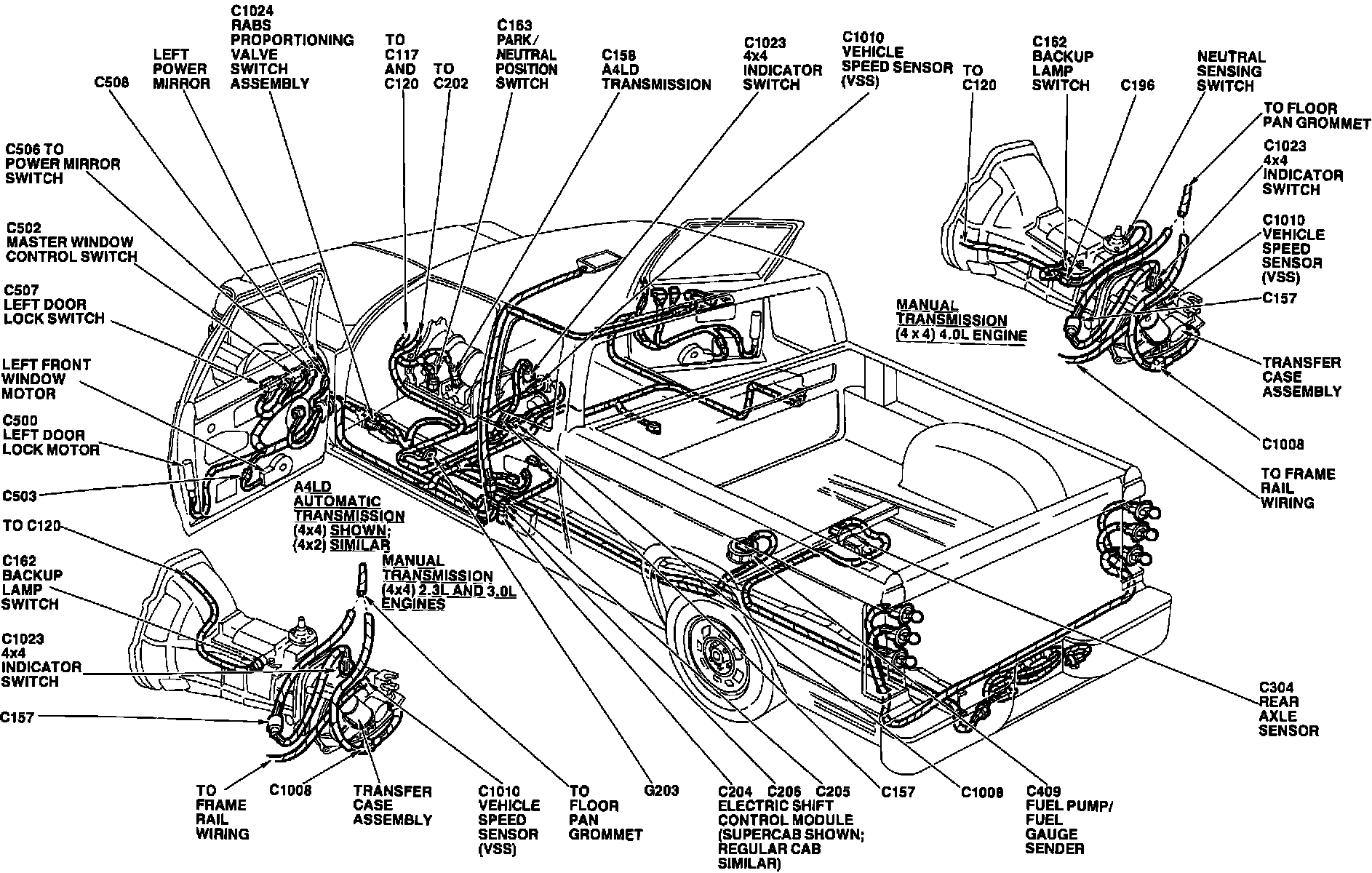

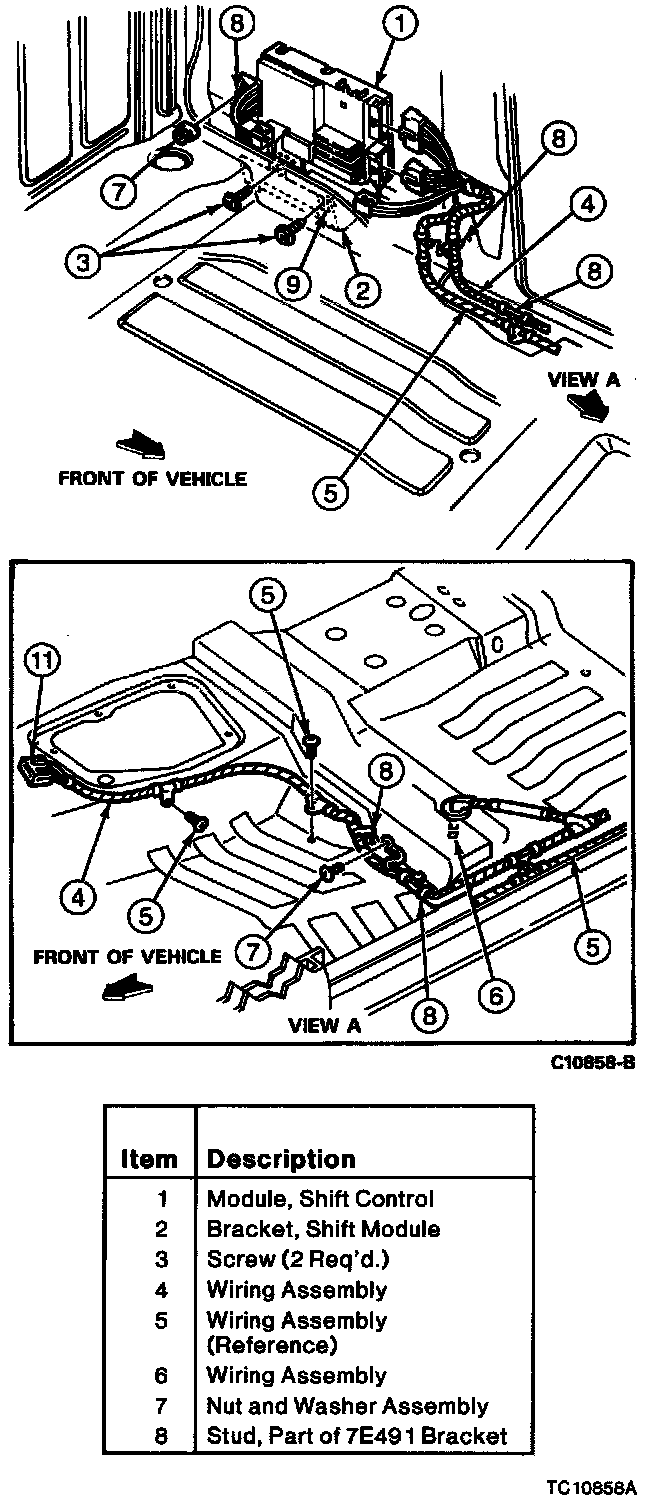

Control Module And Wiring Harness, Ranger Supercab:





The Electric Shift Control Module is located between the bottom of the Left Hand "B" pillar and the rear of the cab.
