Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | ||
| 3.0L & 3.8L | On front of right front inner fender. See Figure . | |
| 3.0L SHO | In left front corner of engine bay. See Figure . | |

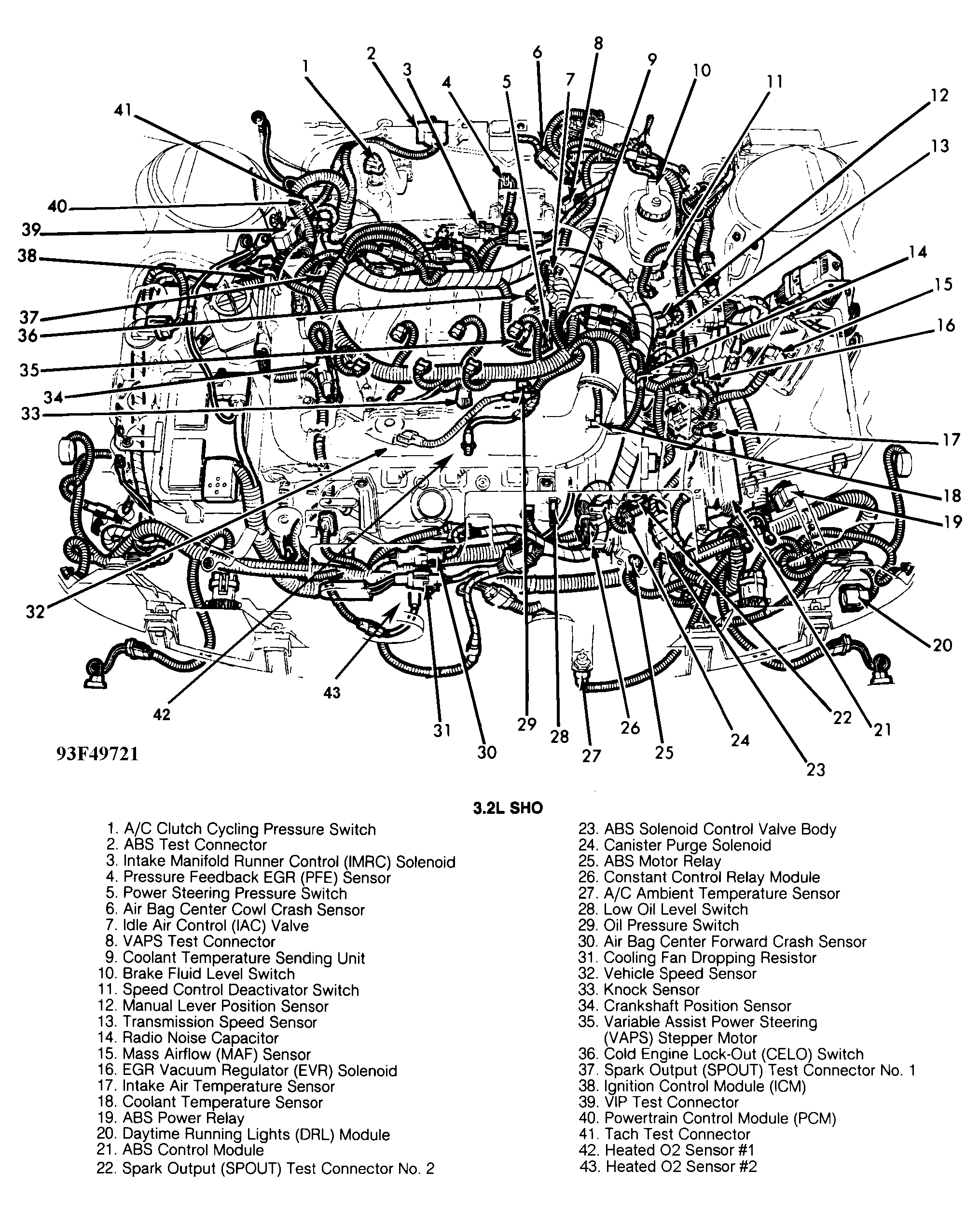

| 3.2L SHO | In left front corner of engine bay. See Figure . | |
| A/C-Heater Blower Speed Controller | Behind right side of dash, near A/C-heater blower motor. See Figure . | |
| Air Bag Diagnostic Module | Behind right side of dash, near top of kick panel. See Figure . | |
| Constant Control Relay Module | ||

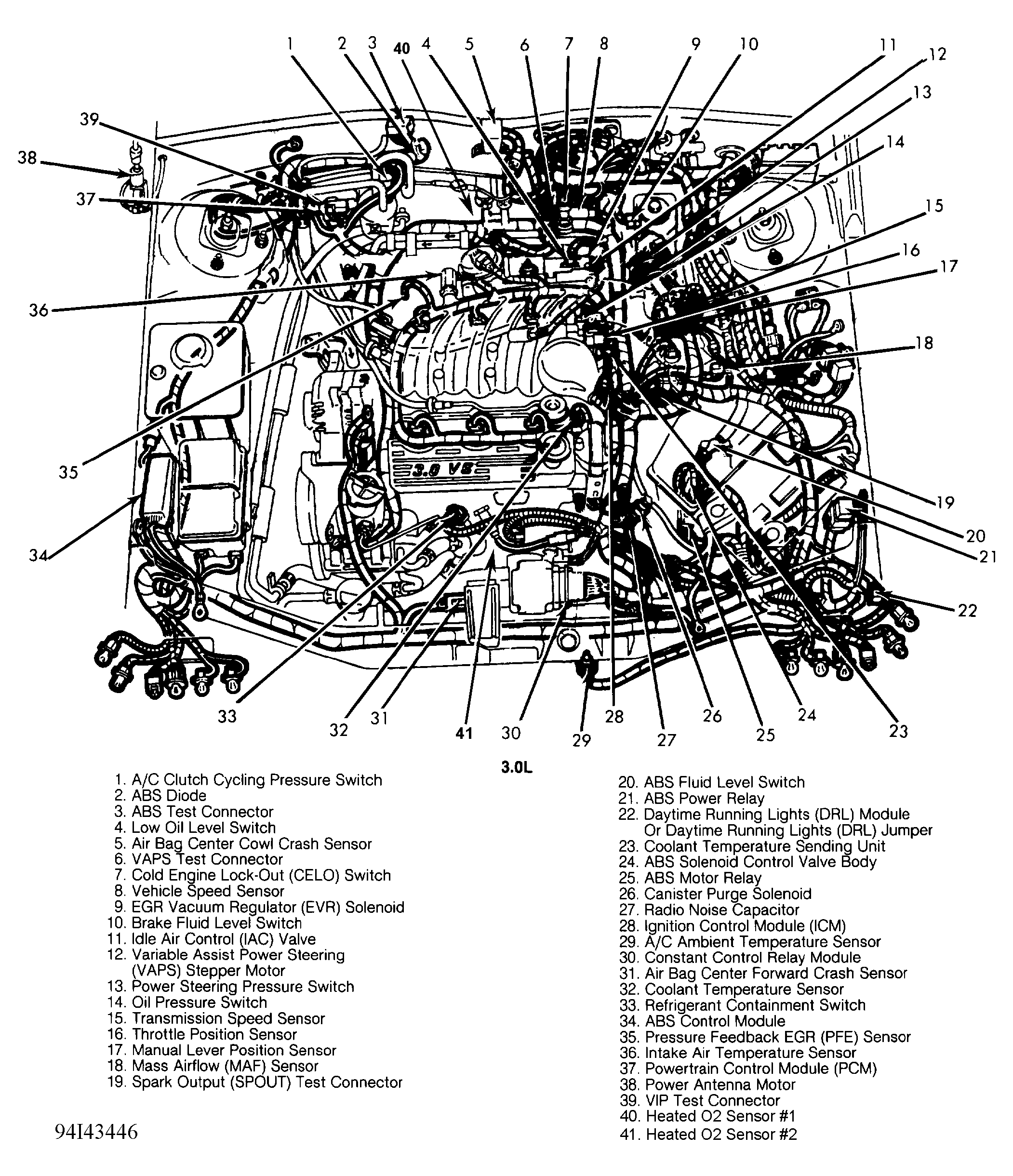

| 3.0L | On upper radiator support. See Figure . | |
| 3.0L SHO | On upper radiator support. See Figure . | |
| 3.2L SHO | On upper radiator support. See Figure . | |
| 3.8L | On upper radiator support. See Figure . | |
| Daytime Running Lights (DRL) Module | ||
| 3.0L | In lower left front of engine bay. See Figure . | |
| 3.0L SHO | In lower left front of engine bay. See Figure . | |
| 3.2L SHO | In lower left front of engine bay. See Figure . | |
| 3.8L | In lower left front of engine bay. See Figure . | |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure . | |
| Ignition Control Module (ICM) | ||
| 3.0L | On top rear side of engine, on distributor. See Figure . | |
| 3.0L SHO | On front of engine. See Figure . | |
| 3.2L SHO | On front of engine. See Figure . | |
| 3.8L | On top right side of firewall. See Figure . | |
| Illuminated Entry Module | ||
| Sedan | Below right side of rear package shelf, behind rear seat. | |
| Wagon | Behind left rear quarter panel, rear of wheelwell. | |
| Light Out Warning Module | ||
| 3.0L & 3.8L | Behind lower left side of dash, to right of fuse block. See Figure . | |
| 3.0L SHO & 3.2L SHO | Behind top right side of dash, above glove box. See Figure . | |
| One Touch Window Down Module | In center of left front door. | |
| Power Antenna Module | Behind right side of dash, near top of kick panel. See Figure . | |
| Powertrain Control Module (PCM) | ||
| 3.0L | On top right side of firewall. See Figure . | |
| 3.0L SHO | On top right side of firewall. See Figure . | |
| 3.2L SHO | On top right side of firewall. See Figure . | |
| 3.8L | On top right side of firewall. See Figure . | |
| Remote Keyless Entry Module | ||
| Sedan | Below left side of rear package shelf, behind rear seat. | |
| Wagon | Behind left rear quarter panel, rear of wheelwell. | |
| Speaker Interrupt Module | On left rear of vehicle. | |
| Switch Module | On top left side of dash, right of instrument cluster. | |
| Variable Assist Power Steering (VAPS) Module | Behind left side of dash, right of steering column. See Figure . | |
| Warning Chime Module | Behind lower center of dash. See Figure . | |
| Windshield Wiper Control Module | Behind center of dash, on brace. See Figure . | |
