Oil Level Warning Indicator: Service and Repair

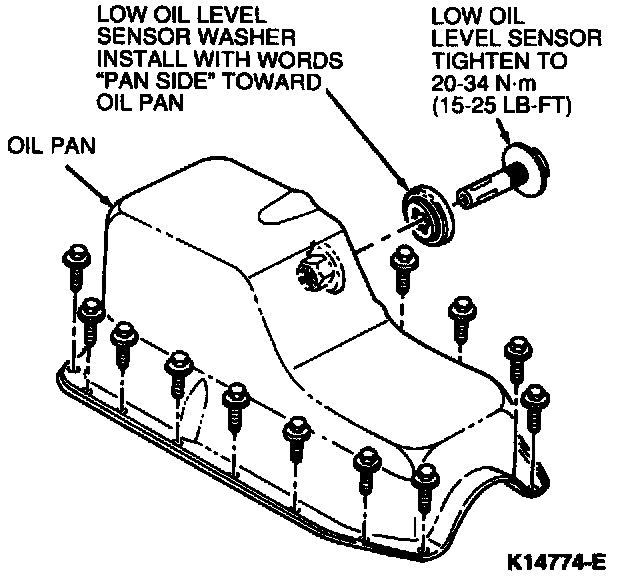

Removal and Installation
1. With engine off, drain at least 1.9 liters (2 quarts) of oil from engine.
2. Disconnect electrical connection.






3. Remove sensor with a 26 mm (1 inch) socket or end wrench. Discard old gasket.
4. To install, reverse Steps 1, 2 and 3.
