Pressure Feedback Exhaust Sensor: Service and Repair

EGR Pressure Valve Sensor:

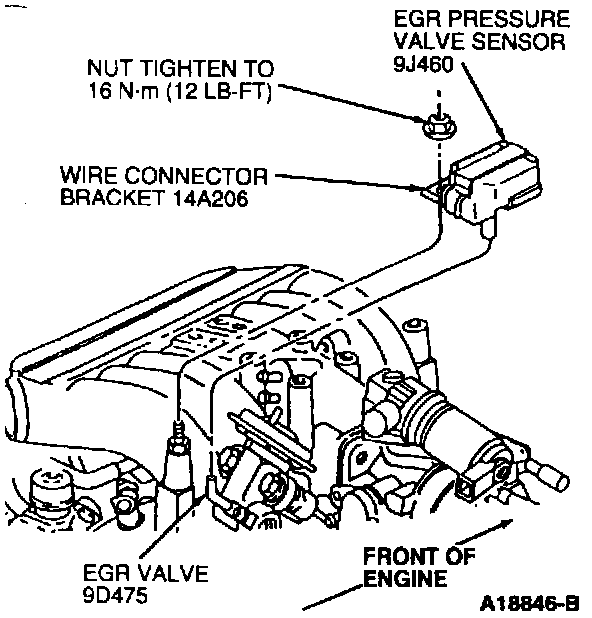

REMOVAL
^ Remove wire connector bracket retainer nut from intake manifold stud bolt.
^ Disconnect EGR pressure valve sensor hoses and engine control sensor wiring from EGR pressure valve sensor. Remove EGR pressure valve sensor from wire connector bracket.

INSTALLATION
^ To install, reverse removal procedure. Tighten retainer nut to 16 Nm (12 ft lb).
