Suspension Control Module

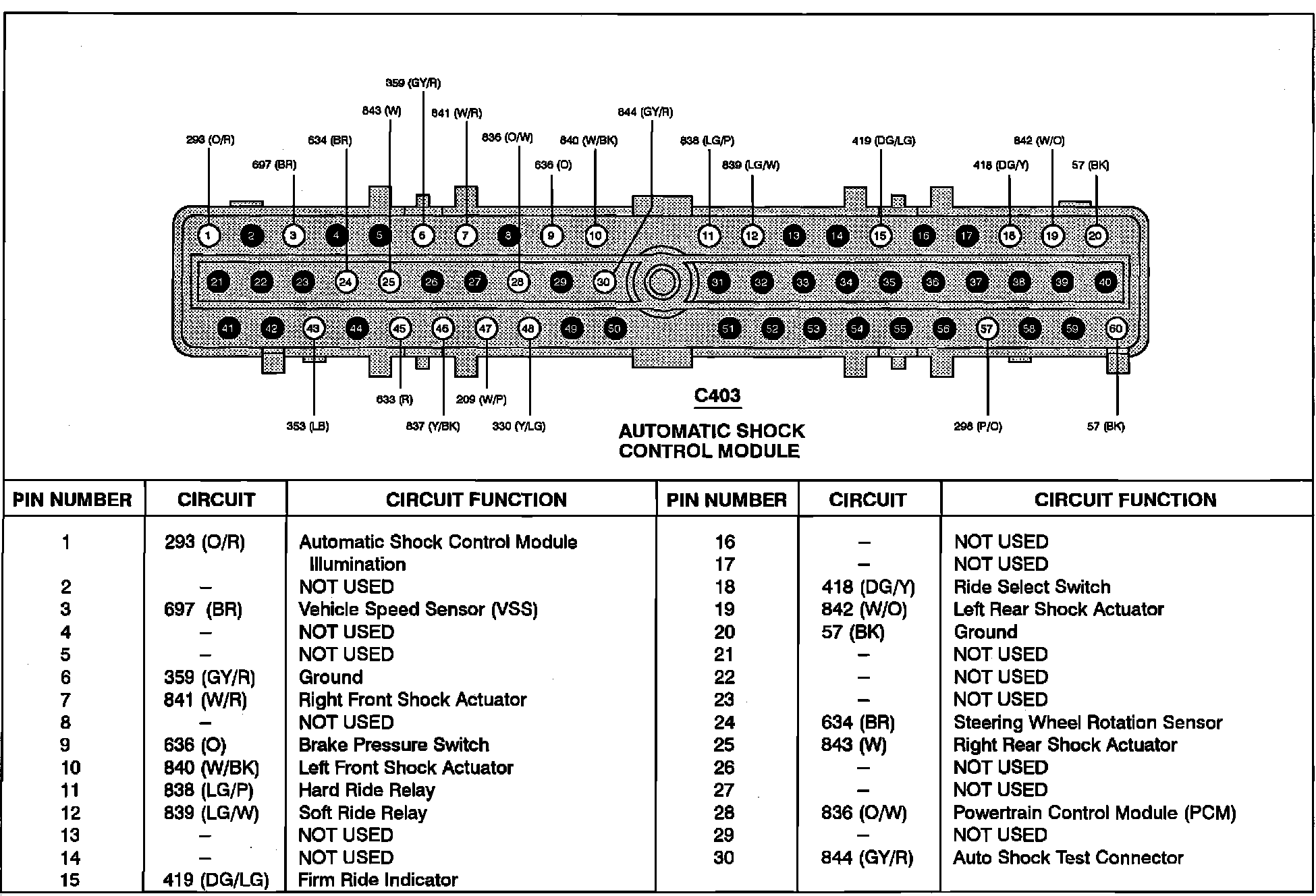

Automatic Shock Control Module/Circuit Function:

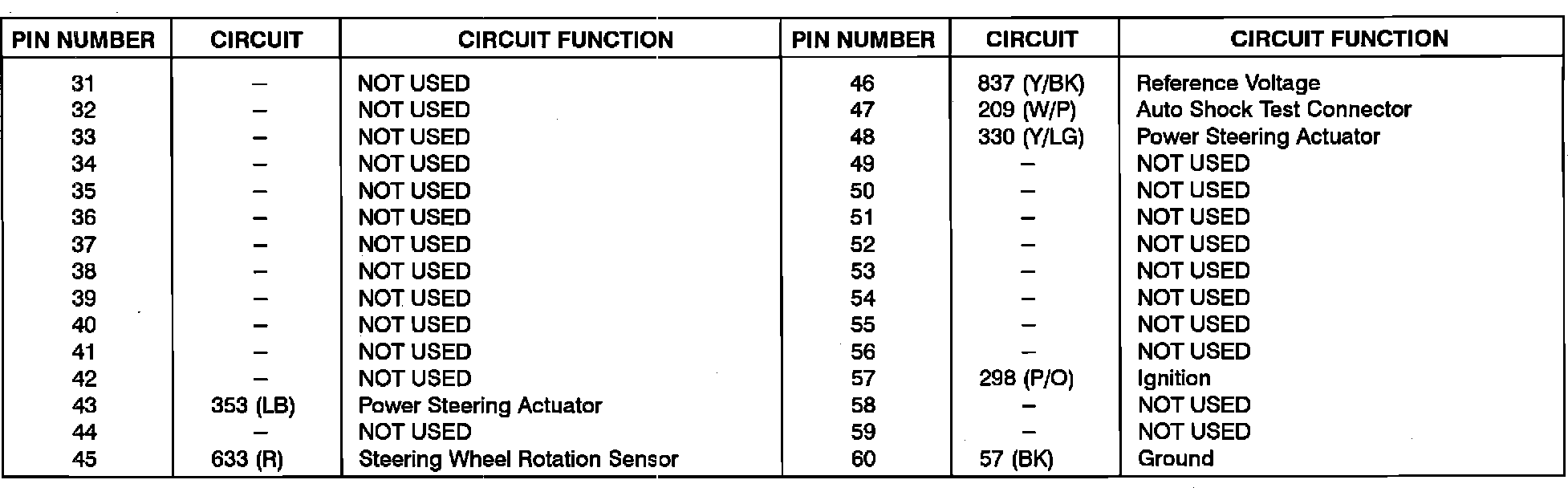

Automatic Shock Control Module Circuit Function:
