Component Locations
COMPONENT LOCATIONS
Component
Location
Circuit Breaker (20 A)
In Fuse Panel, Below Left Side Of Dashboard
Ground G201
Behind Bottom Of Left Kick Panel
Power Window Switch
In Door Trim Panel
Power Window Motor
Inside Door

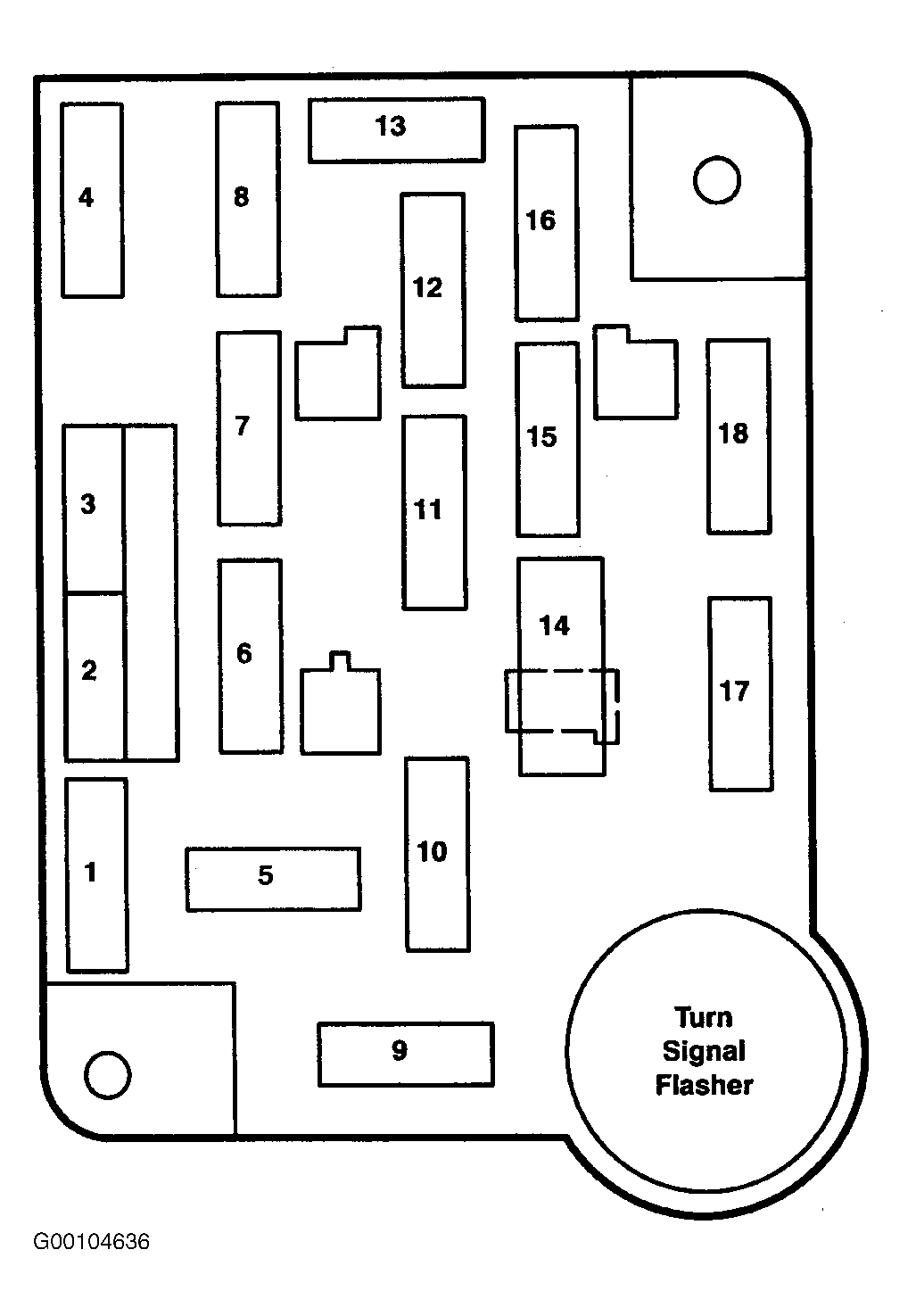

Fig 1: Identifying Fuse Panel Components
Courtesy of FORD MOTOR CO.

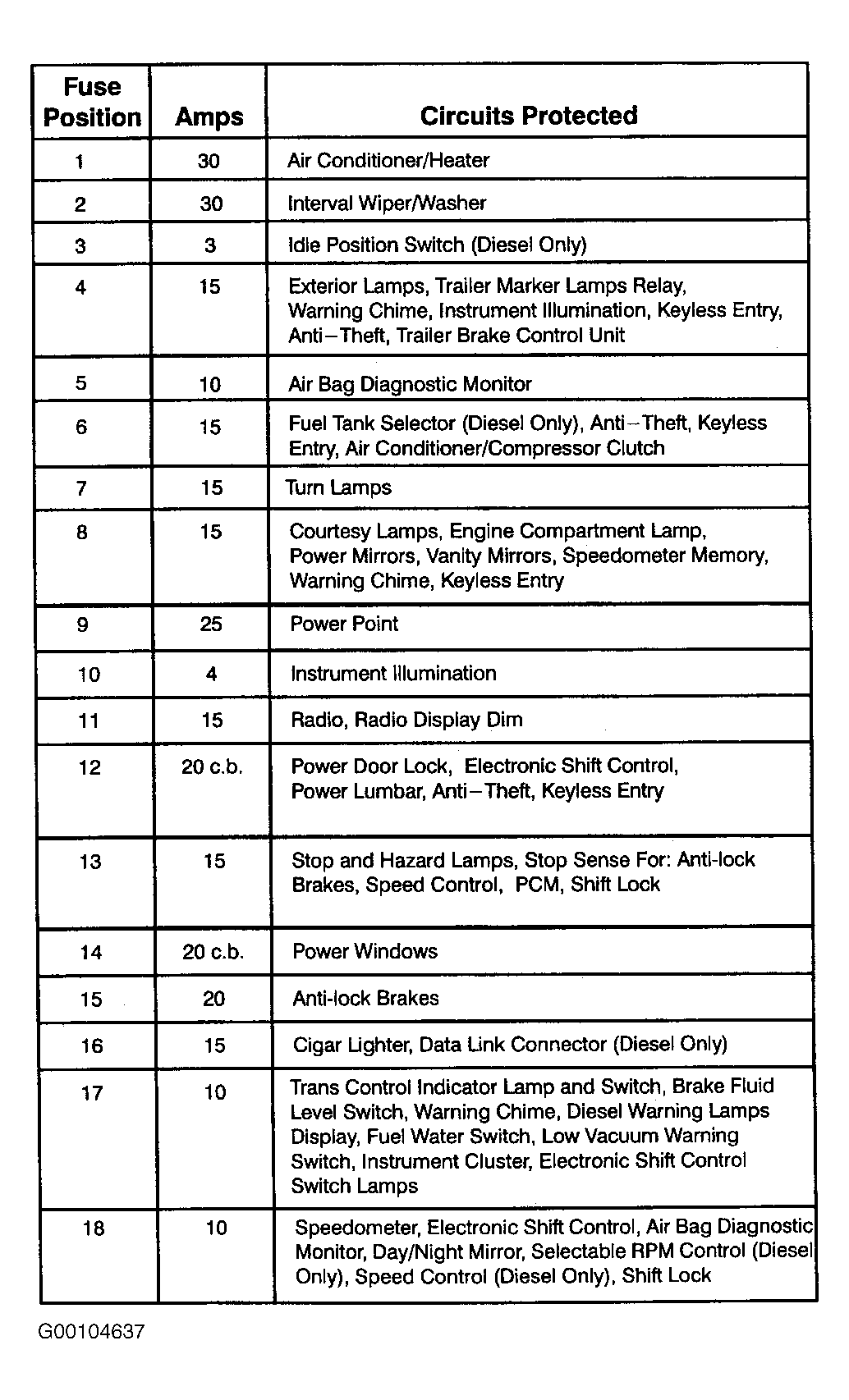

Fig 2: Fuse Panel Legend
Courtesy of FORD MOTOR CO.
