Servicing - A/T: Identification

AUTOMATIC TRANSMISSION APPLICATIONS

Model

⁽¹⁾ Transmission

Bronco

AODE-W/4R70W & E4OD

Pickup & Van

AODE-W/4R70W, C6 & E4OD

⁽¹⁾	Transmission may be identified by oil pan gasket. See Fig 1 -4.

TRANSFER CASE APPLICATIONS

Model

Transfer Case

Bronco & Pickup

⁽¹⁾⁽²⁾ Warner 1356

⁽¹⁾	Available with mechanical or electronic shift.

⁽²⁾	Some F350 Pickups may be equipped with a Power Take-Off (PTO) unit.

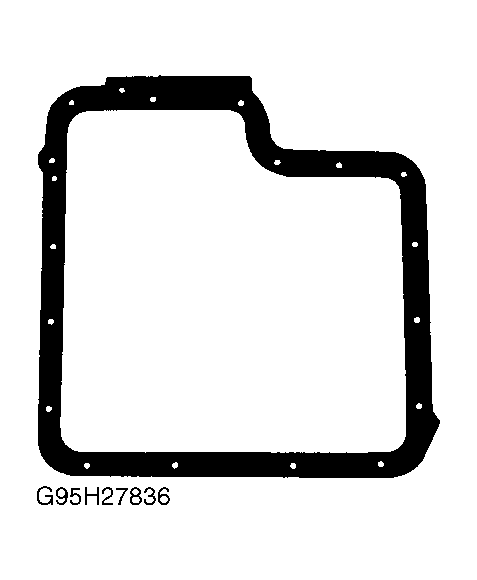

Fig 1: Identifying Oil Pan Gasket (AOD & AODE-W/4R70W)

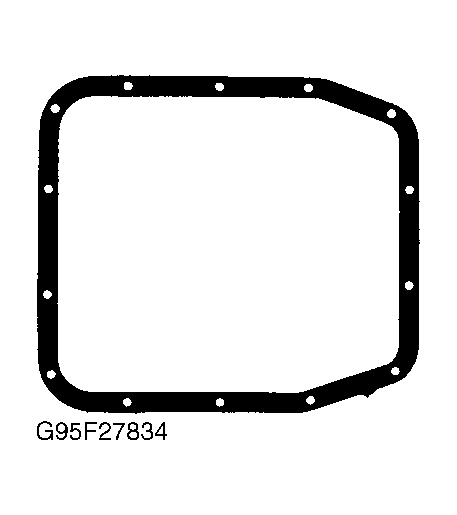

Fig 2: Identifying Oil Pan Gasket (C6)

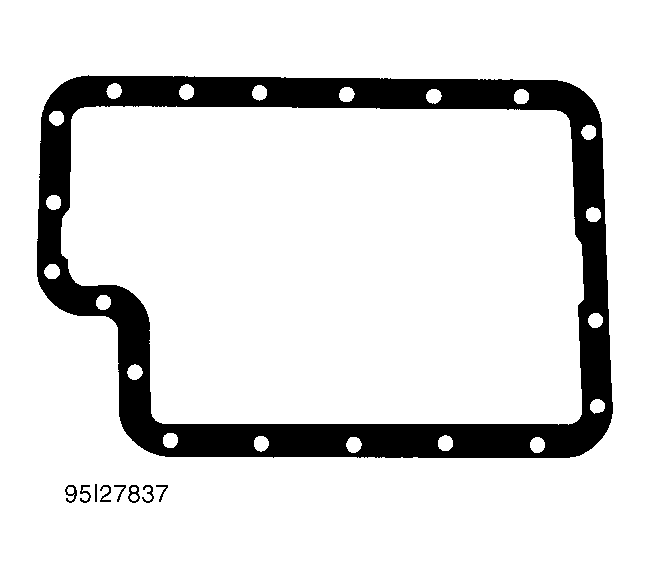

Fig 3: Identifying Oil Pan Gasket (E4OD)

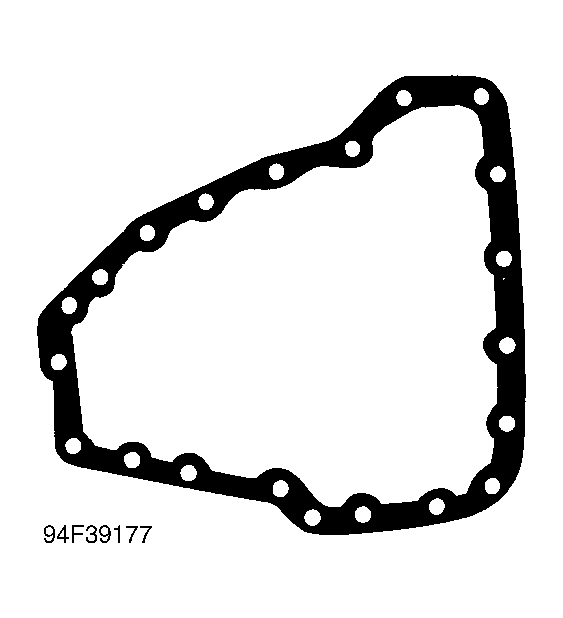

Fig 4: Identifying Oil Pan Gasket (4F20E)
