Headlight Switch Test

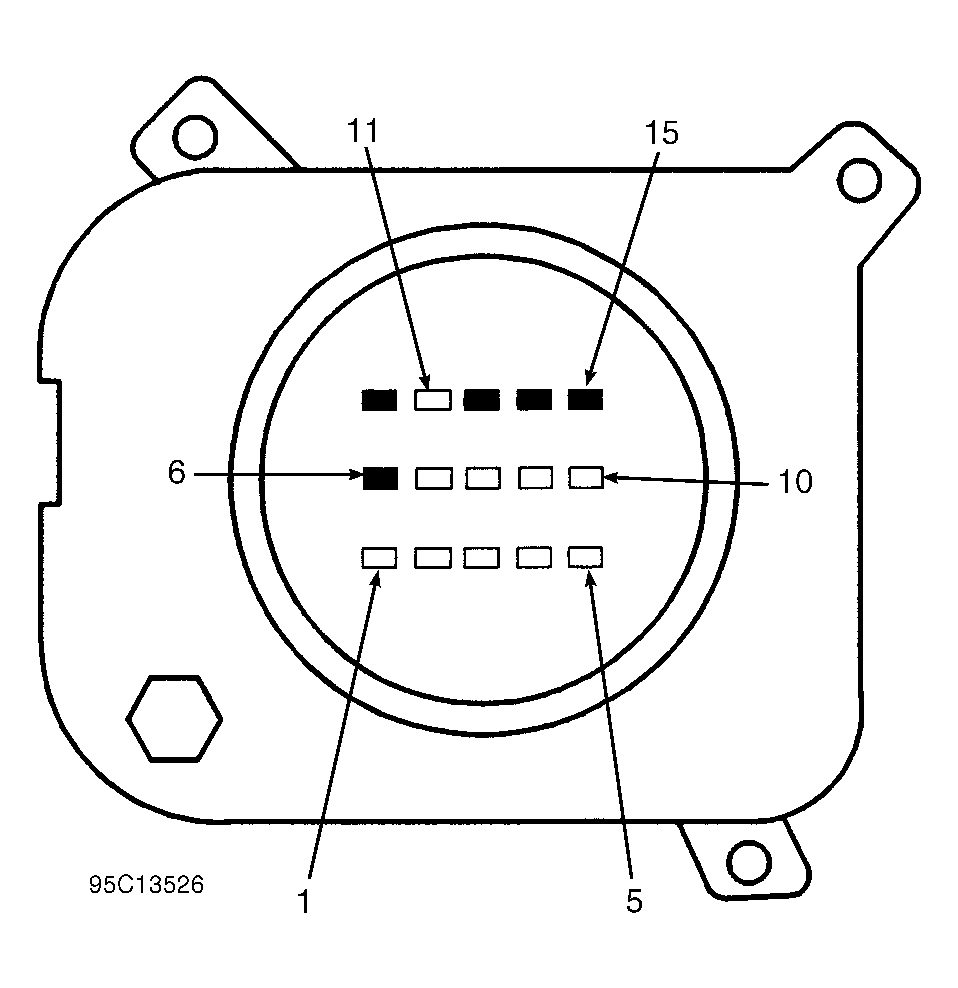

Remove headlight switch. See HEADLIGHT SWITCH under REMOVAL & INSTALLATION. Test headlight switch for continuity between specified terminals at each switch position. See LIGHT SWITCH CONTINUITY table. See Fig 1 . Replace headlight switch if continuity is not as specified.
LIGHT SWITCH CONTINUITY
| Terminal Pair | Condition | |
|---|---|---|
| Switch In OFF Position | ||
| 1-2 | No Continuity | |
| 4-5 | No Continuity | |
| 5-12 | No Continuity | |
| Switch In PARK Position | ||
| 1-2 | No Continuity | |
| 4-5 | Continuity | |
| 5-12 | Continuity | |
| Switch In HEADLIGHTS Position | ||
| 1-2 | Continuity | |
| 4-5 | Continuity | |
| 5-12 | Continuity | |
