Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

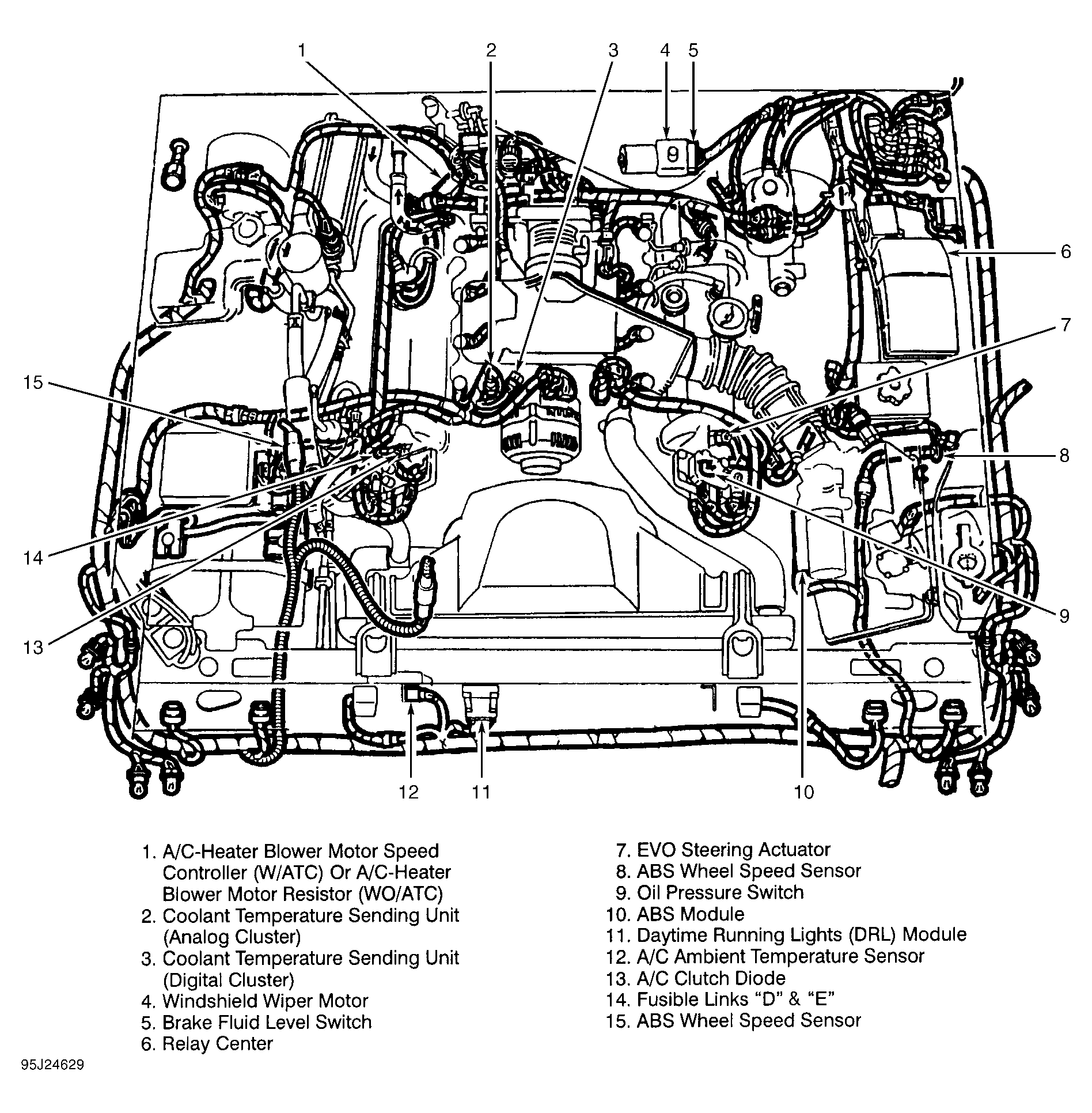

| Anti-Lock Brake Module (ABS) | Left Hand Front Of Vehicle, On Front Of Upper Radiator Support. See Fig 1 . |
| Data Link Connector (DLC) | Under Left Side Of Instrument Panel, To Right Of Steering Column |
| Drivers Door Module (DDM) | In Center Of Driver's Door |
| Drivers Seat Module (DSM) | Below Drivers Seat |

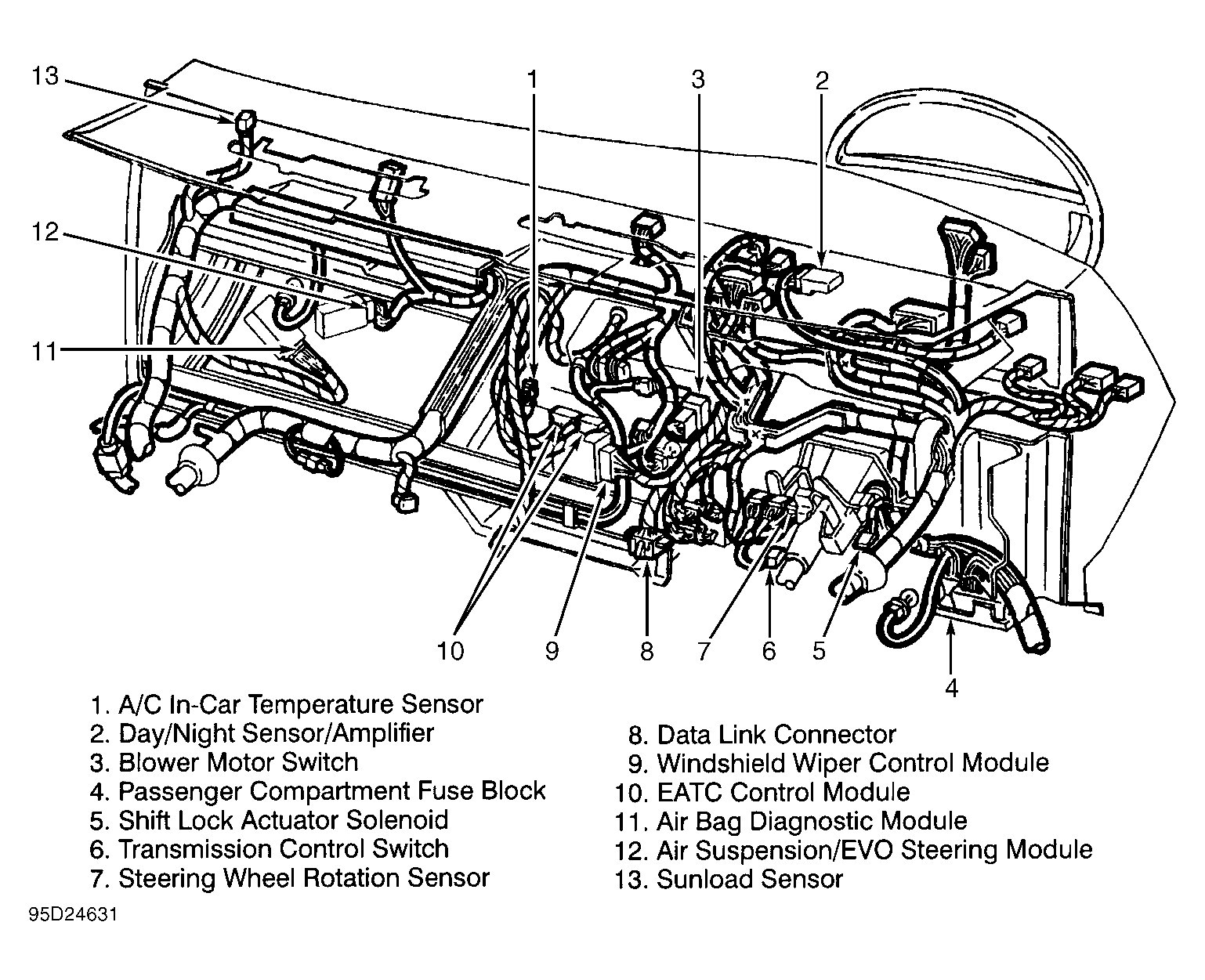

| Electronic Automatic Temperature Control (EATC) Module | Center Of Instrument Panel. See Fig 2 . |
| Lighting Control Module (LCM) | Behind Left Side Of Instrument Panel, Above Accelerator Pedal |

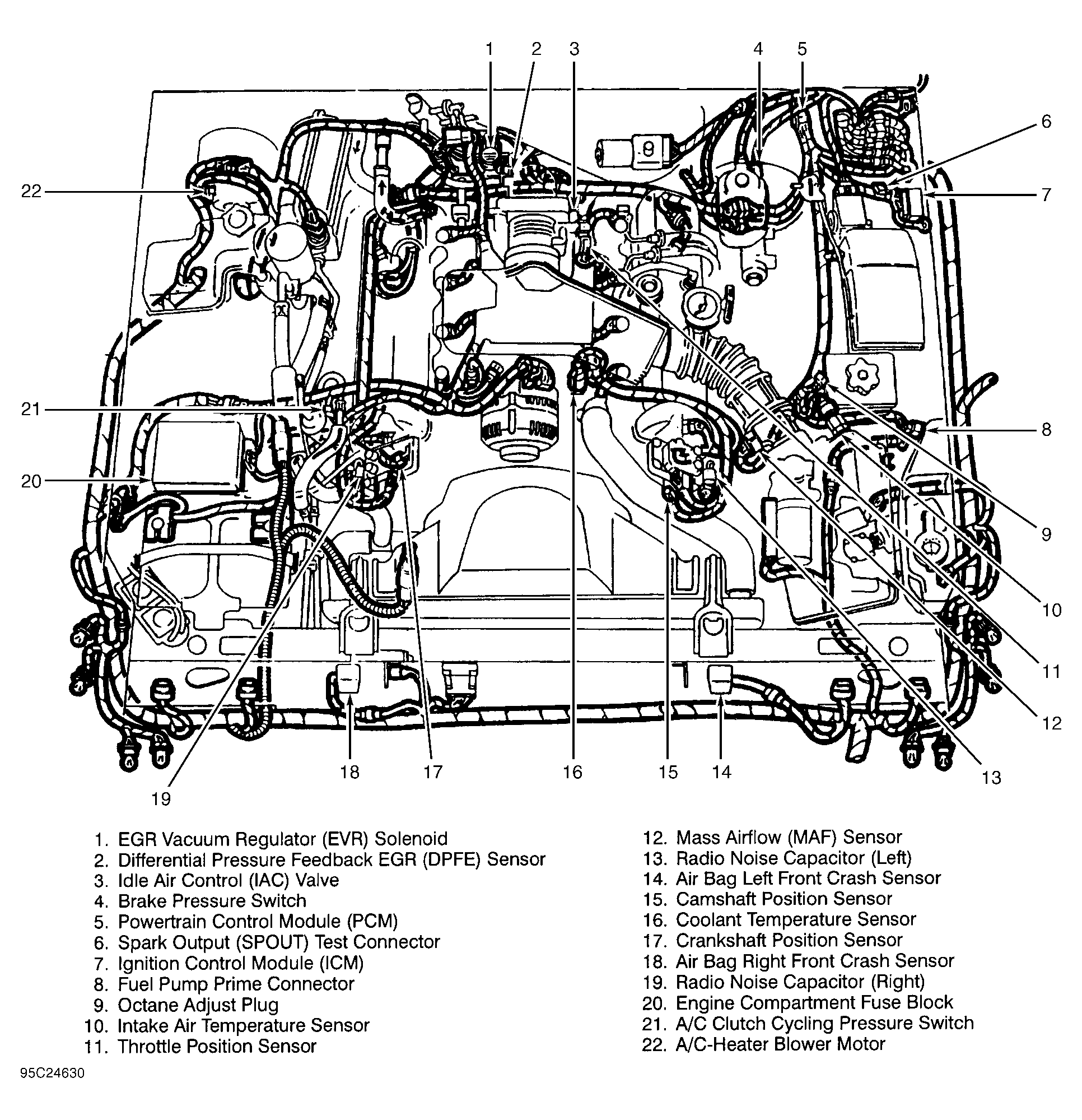

| Powertrain Control Module | Behind left side of dash, on left side of firewall. See Fig 3 . |
