Power Door Lock Switch
- Turn key OFF.
- Disconnect the power door lock switch connector.

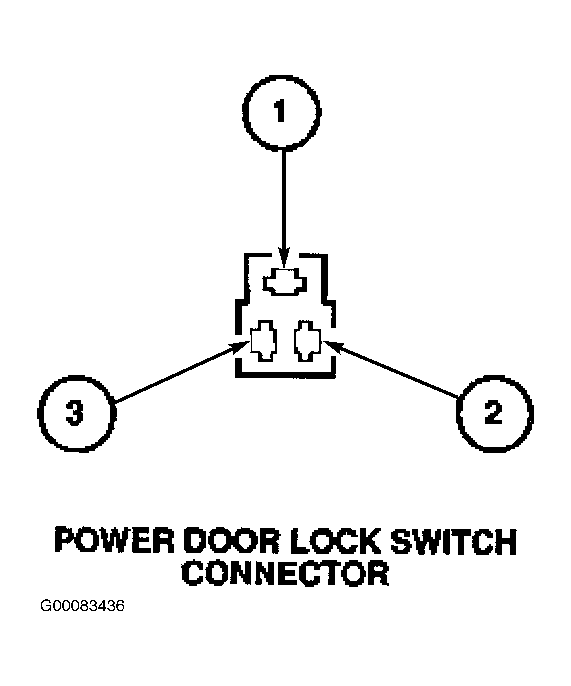

- Measure the resistance between the terminals of the power door lock switch. See Fig 1 . See DOOR LOCK SWITCH RESISTANCE CHECK .
- If the resistances are not as specified, replace the power door lock switch. Otherwise, return to the Pinpoint Test. See PINPOINT TEST A: ONE DOOR LOCK INOPERATIVE .
DOOR LOCK SWITCH RESISTANCE CHECK
| Door Lock Switch Position | Terminal Numbers | Resistance Between Terminals |
|---|---|---|
| Locked | 1 - 3 | Greater Than 10,000 Ohms |
| Locked | 1 - 2 | Less Than 5 Ohms |
| Unlocked | 1 - 3 | Less Than 5 Ohms |
| Unlocked | 1 - 2 | Greater Than 10,000 Ohms |
