Circuit Tests: Notes

NOTE: PCM is located forward of center console. For identification of PCM connector terminals, see Fig 1 or Fig 2 .
Fig 1: Identifying PCM Connector Terminals (A/T)
G94A34033Courtesy of FORD MOTOR CO.

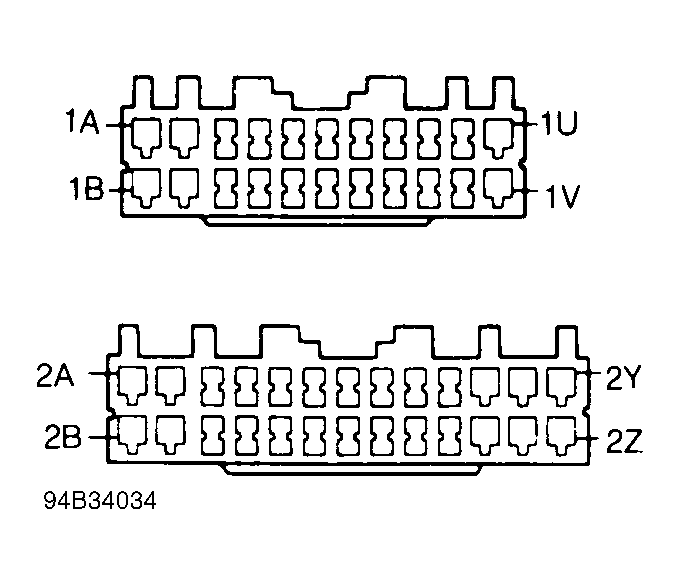

Fig 2: Identifying PCM Connector Terminals (M/T)
G94B34034Courtesy of FORD MOTOR CO.
