Electronic Brake Control Module

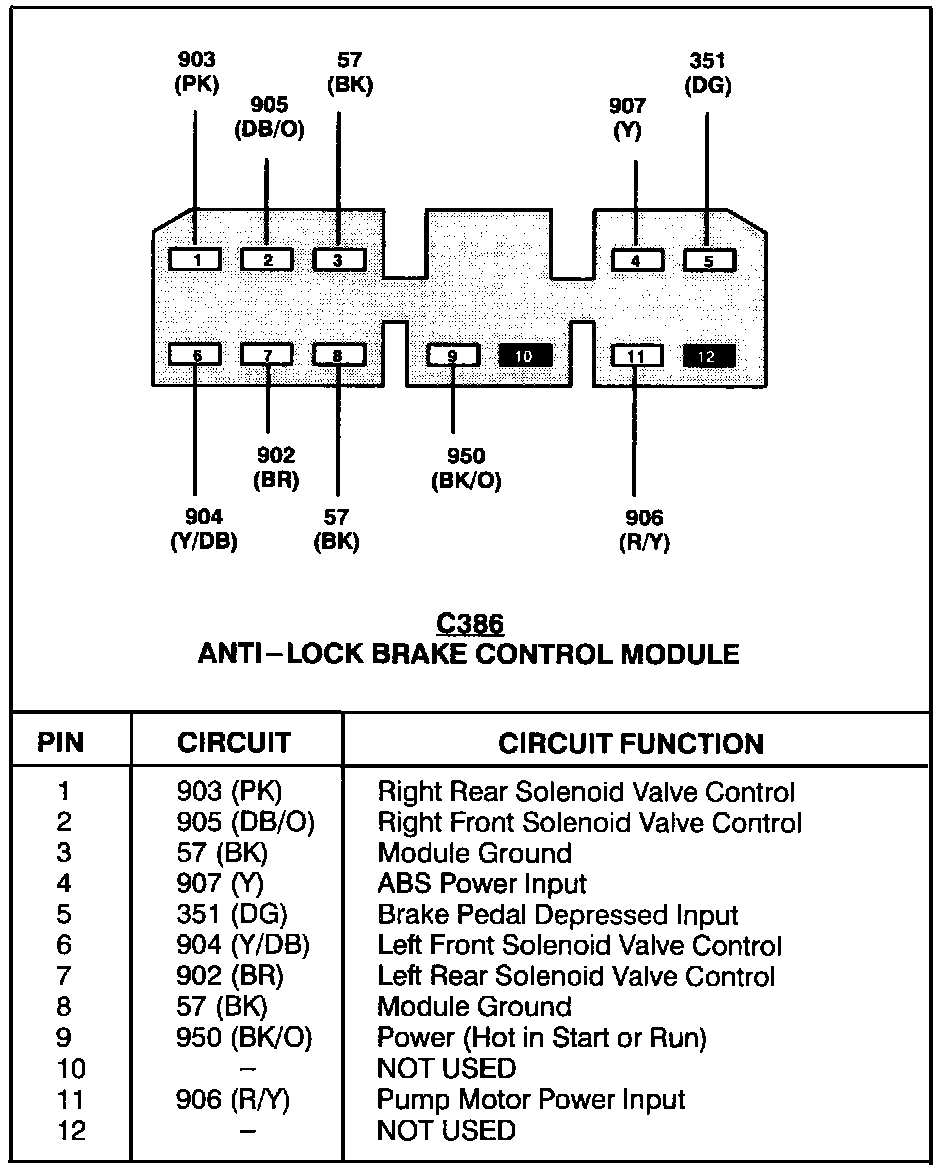

Anti-Lock Brake Control Module (C386):

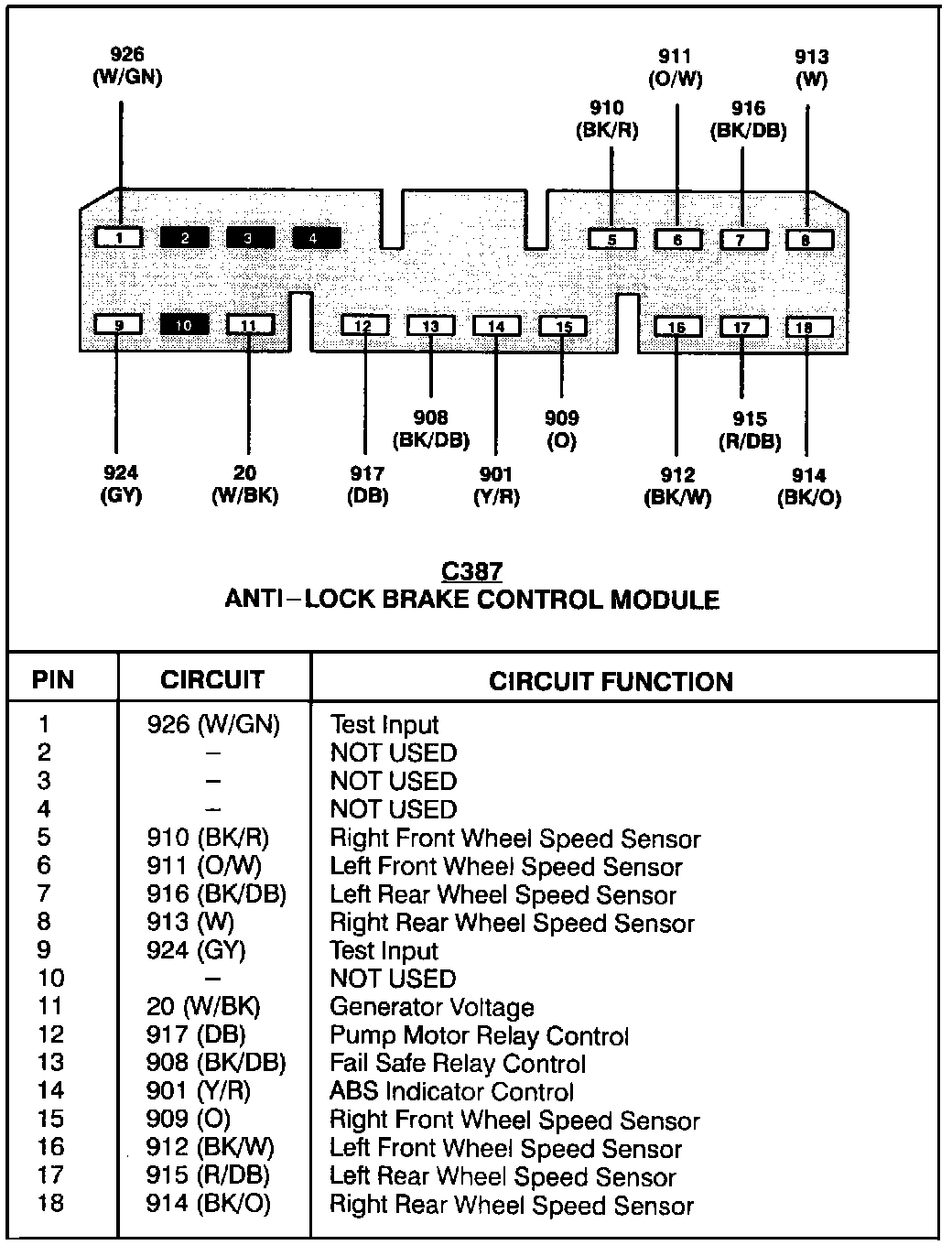

Anti-Lock Brake Control Module (C387):
