Power Circuits
WARNING: This page is about a different car, the 1996 Mercury Villager and 1995 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

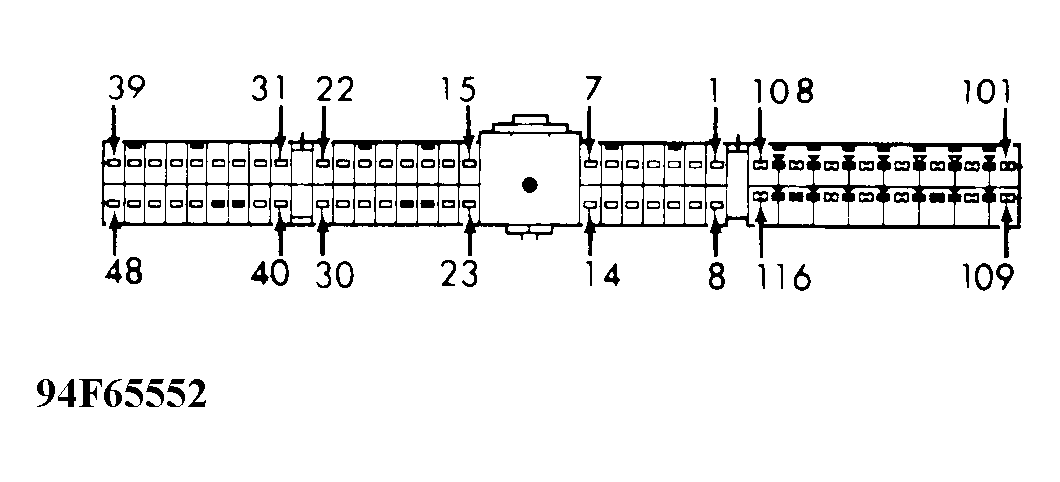

Using a voltmeter, check for battery voltage between PCM terminal No. 46 (KAPWR) and ground. Check for battery voltage at terminals No. 38, 47 and 109 (VPWR). If battery voltage is not present, power is not being supplied from EEC power relay. See CIRCUIT TEST VPWR in TESTS W/CODES article.
PCM LOCATION
| Application | Location |
|---|---|
| Villager | Behind Right Side Of Instrument Panel |
