Diagnostic Trouble Code (DTC) Reference Charts

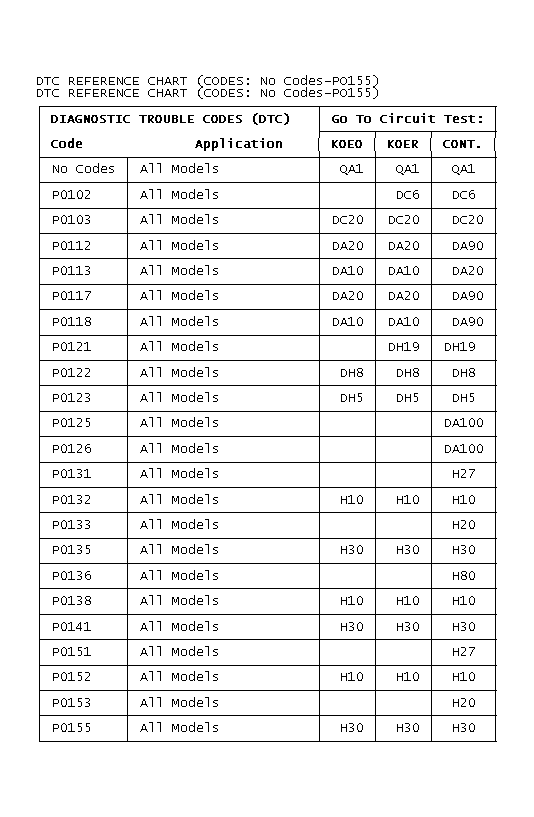

Fig 1: DTC REFERENCE CHART (CODES: No Codes-PO155)

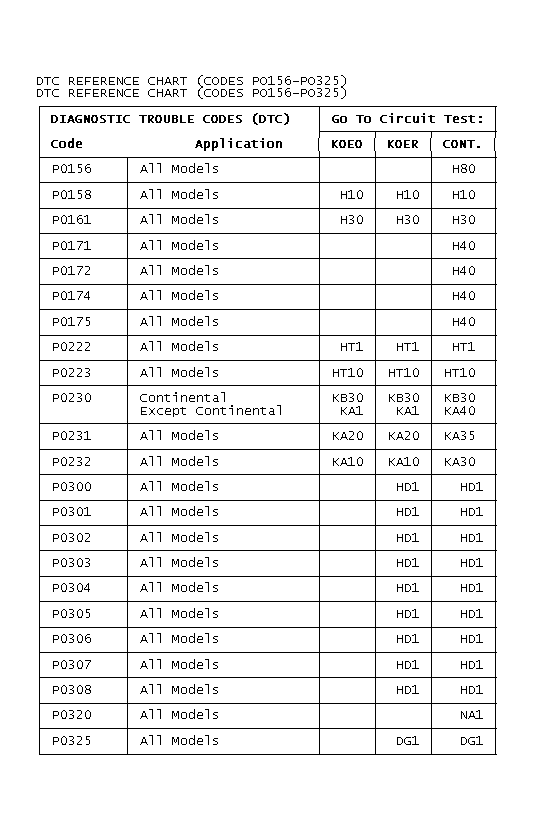

Fig 2: DTC REFERENCE CHART (CODES PO156-PO325)

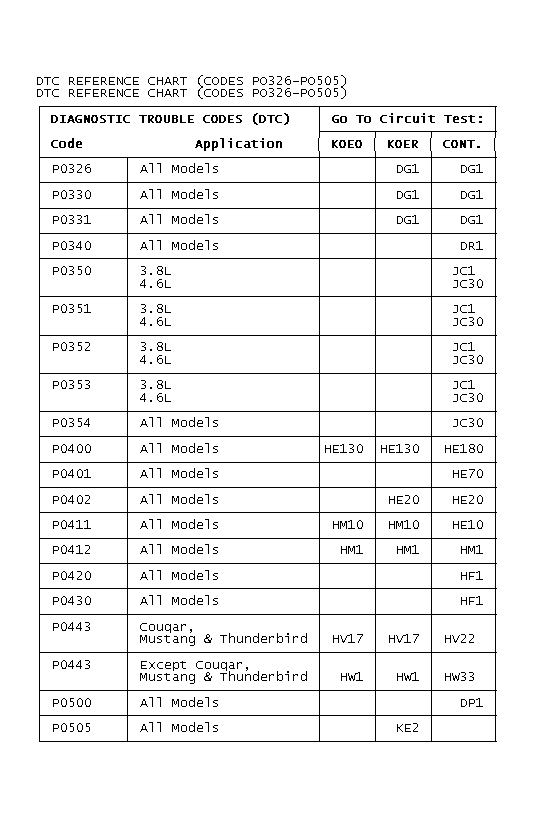

Fig 3: DTC REFERENCE CHART (CODES PO326-PO505)

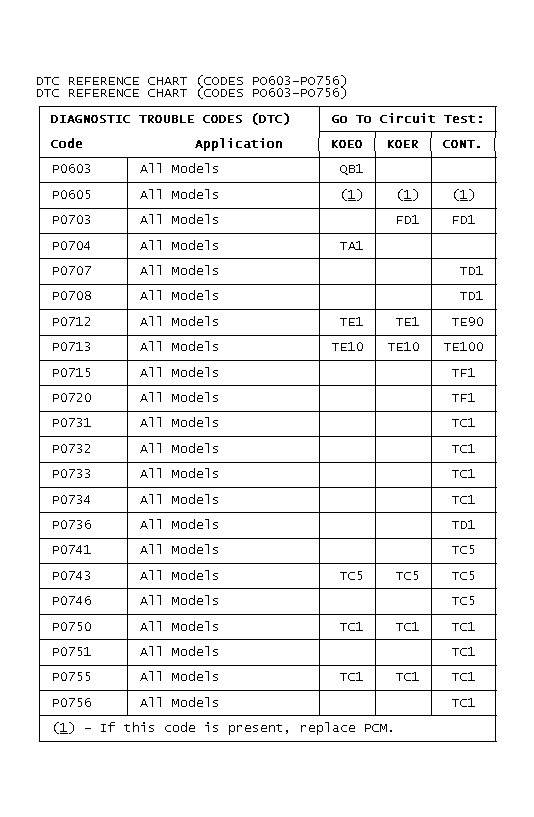

Fig 4: DTC REFERENCE CHART (CODES PO603-PO756)

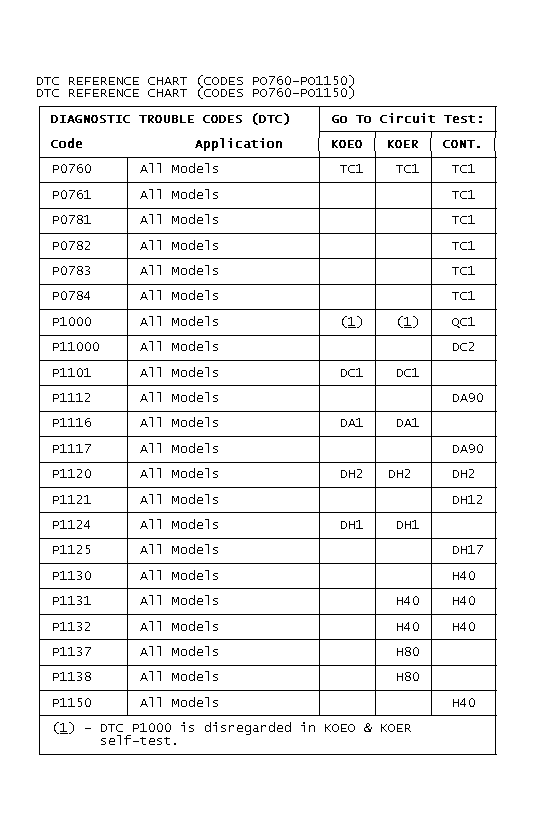

Fig 5: DTC REFERENCE CHART (CODES PO760-PO1150)

Fig 6: DTC REFERENCE CHART (CODES PO1151-PO1364)

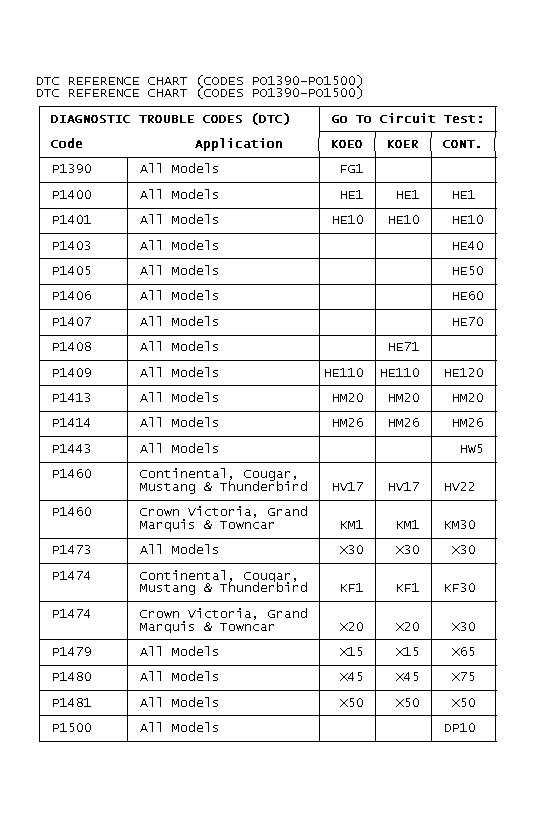

Fig 7: DTC REFERENCE CHART (CODES PO1390-PO1500)

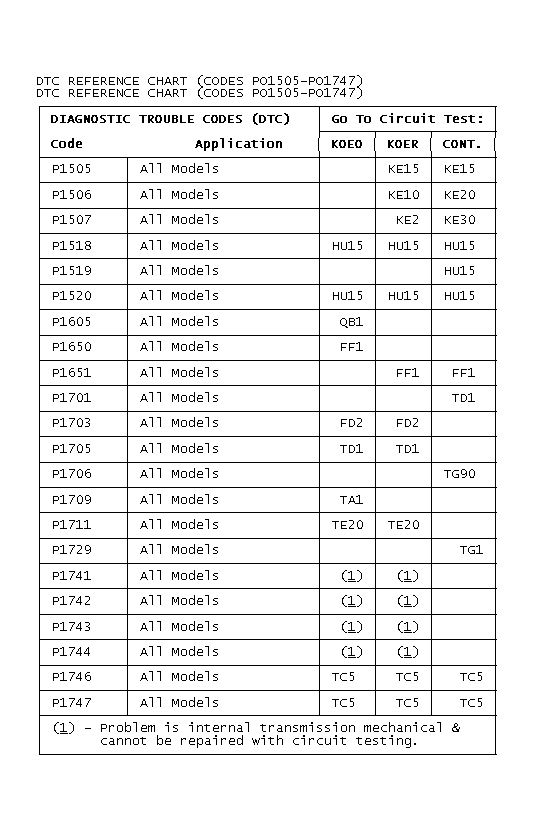

Fig 8: DTC REFERENCE CHART (CODES PO1505-PO1747)

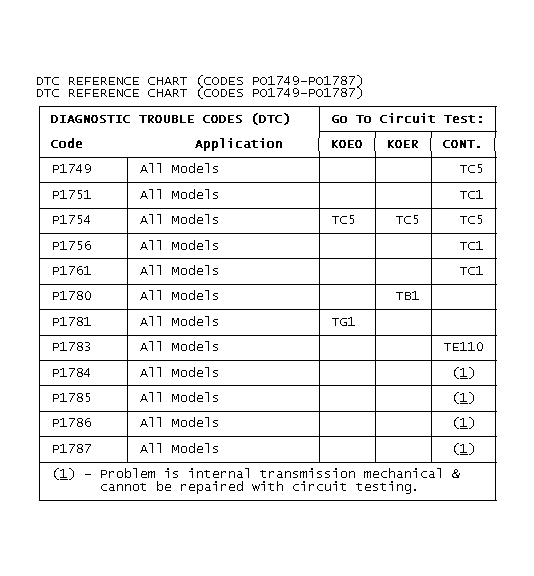

Fig 9: DTC REFERENCE CHART (CODES PO1749-PO1787)
