Heater Control Assembly

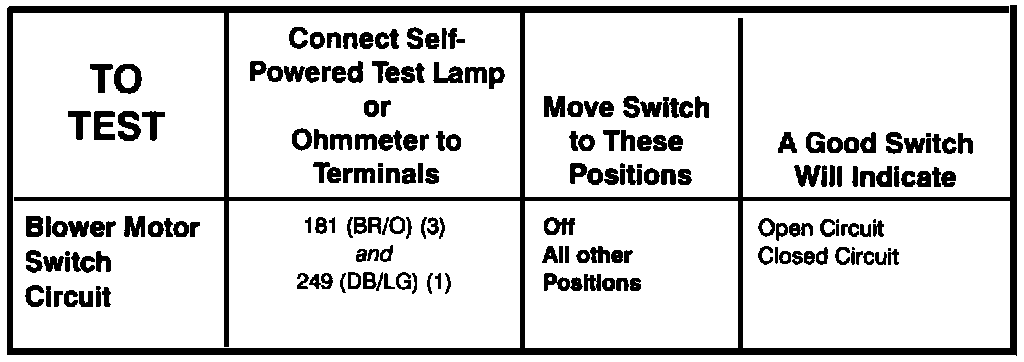

Heater Control Assembly - Component Testing Procedure:

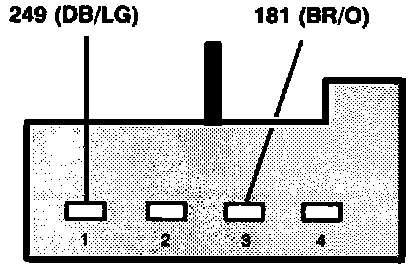

Heater Control Assembly - Terminal Locations:

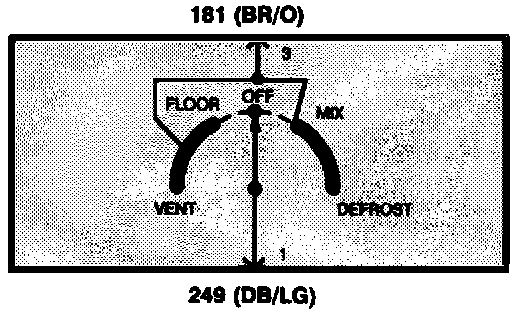

Heater Control Assembly - Schematic:
