Convertible

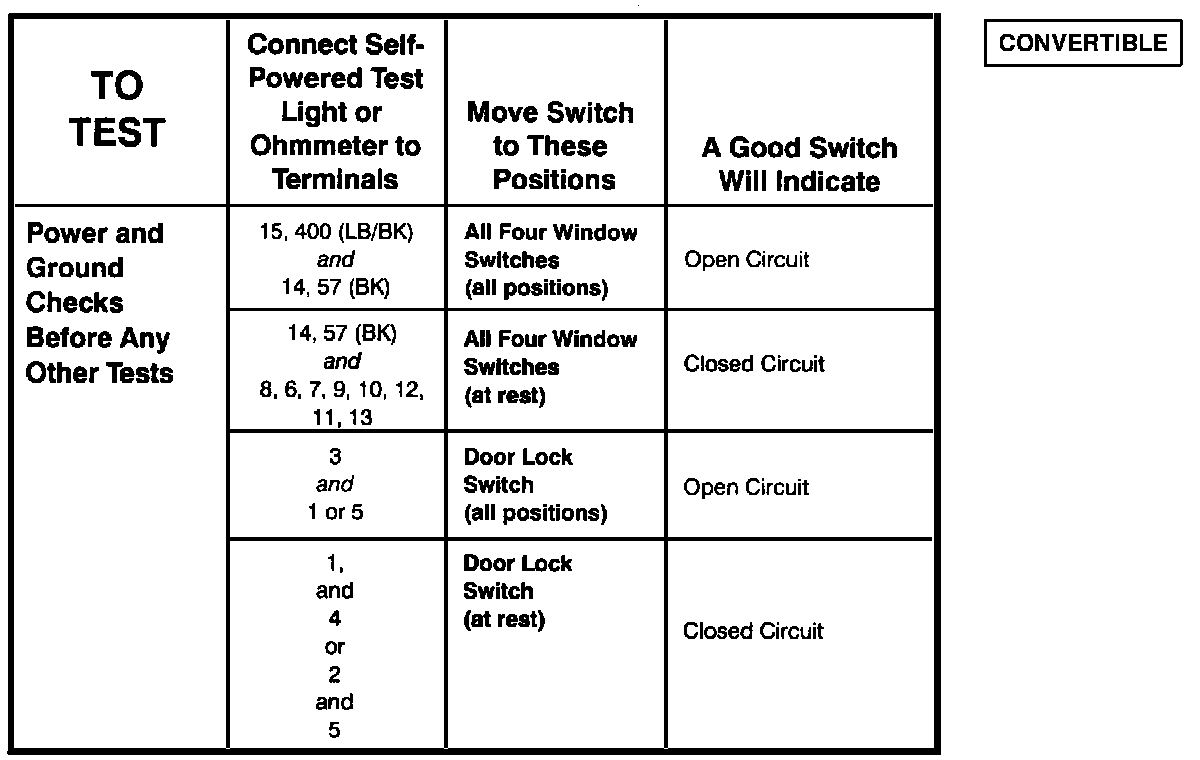

Master Window/Door Lock Control Switch (Convertible) - Component Testing Procedure (Part 1 Of 2):

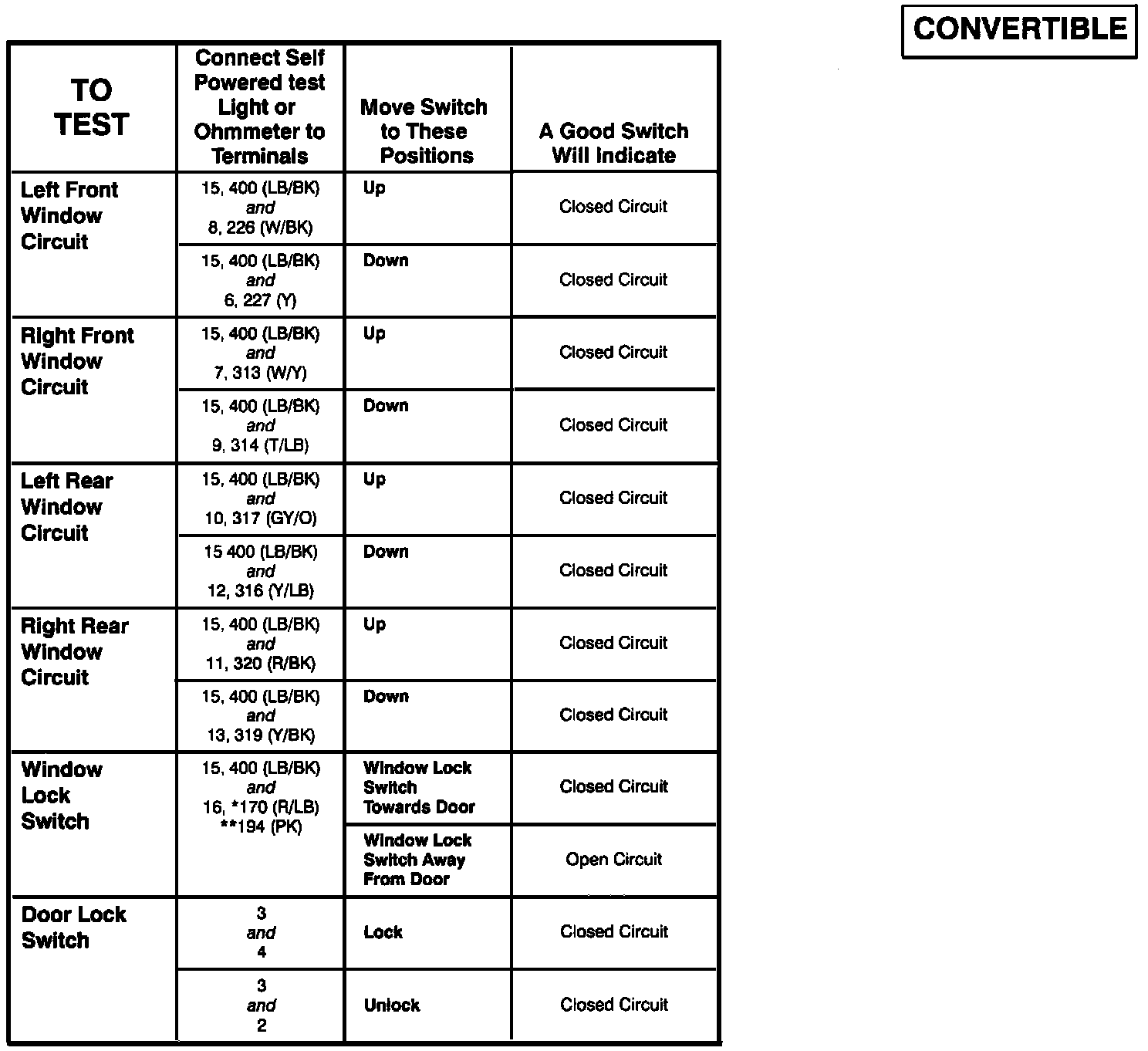

Master Window/Door Lock Control Switch (Convertible) - Component Testing Procedure (Part 2 Of 2):

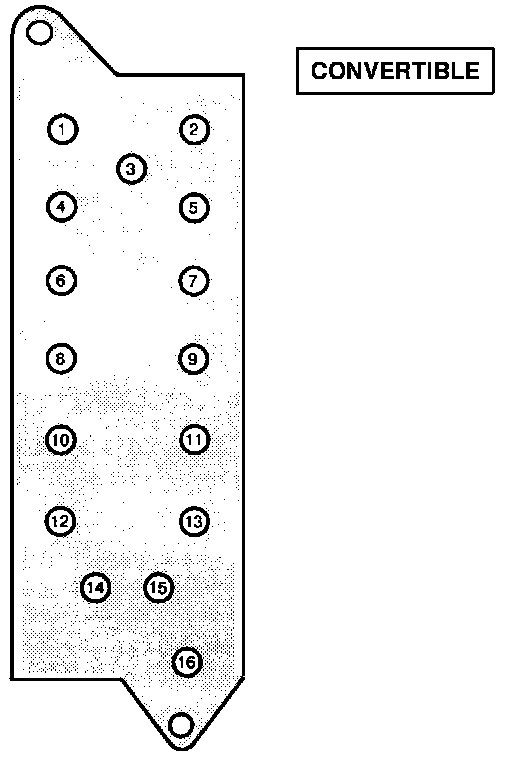

Master Window/Door Lock Control Switch (Convertible) - Terminal Locations:

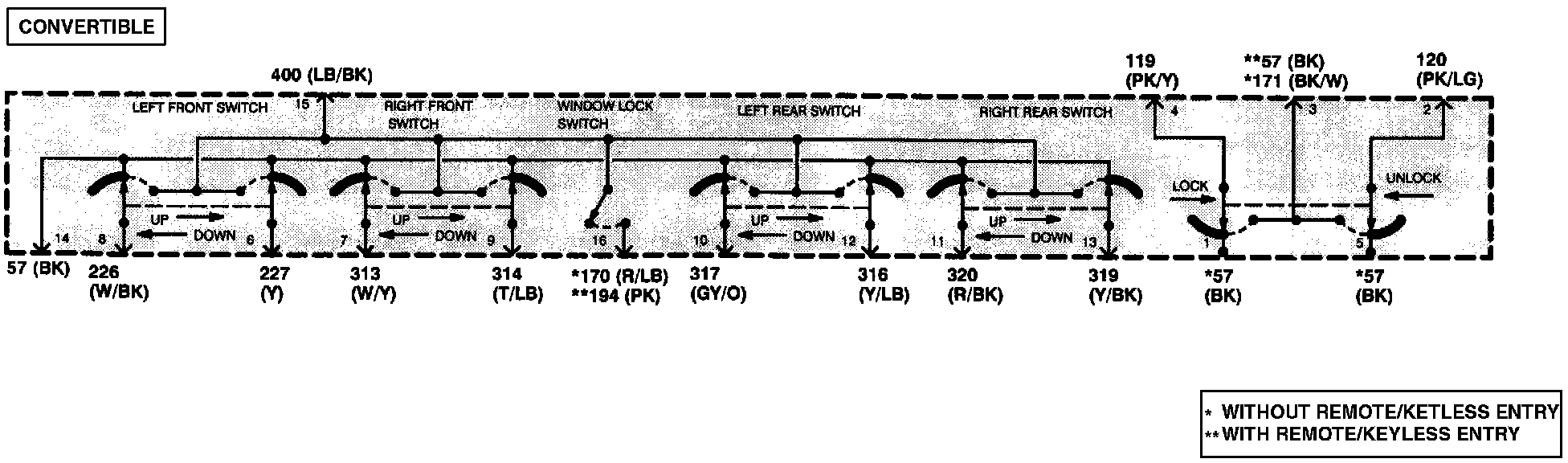

Master Window/Door Lock Control Switch (Convertible) - Schematic:
