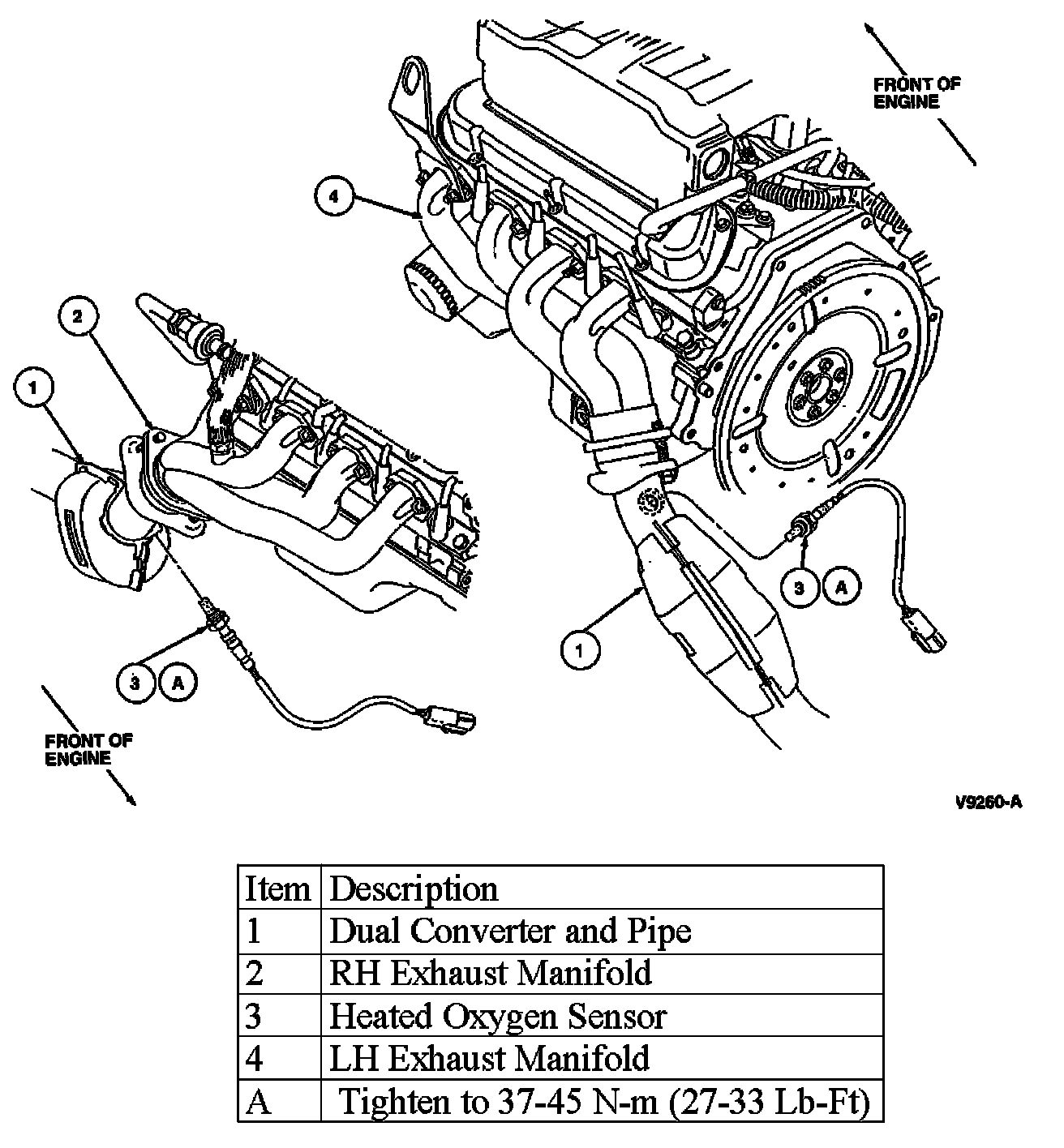

Component Locations





Forward Of Catalytic Converters:






The Heated Oxygen Sensors (HO2S) are located in the dual converter and pipe.
