Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

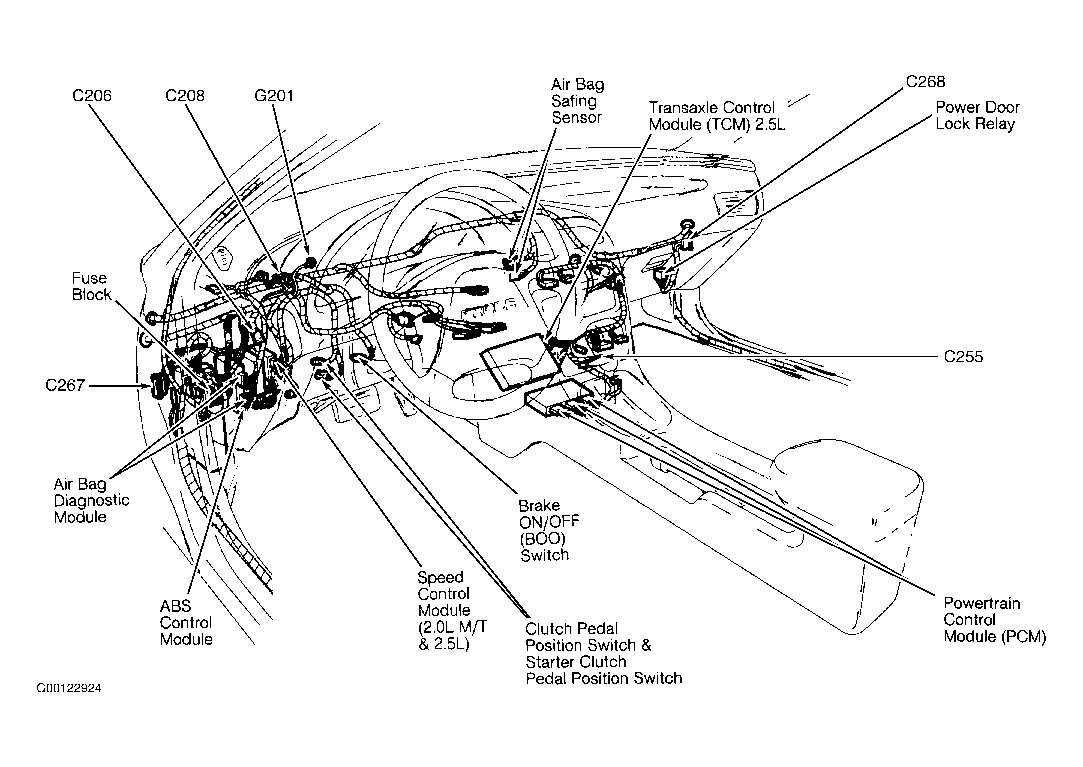

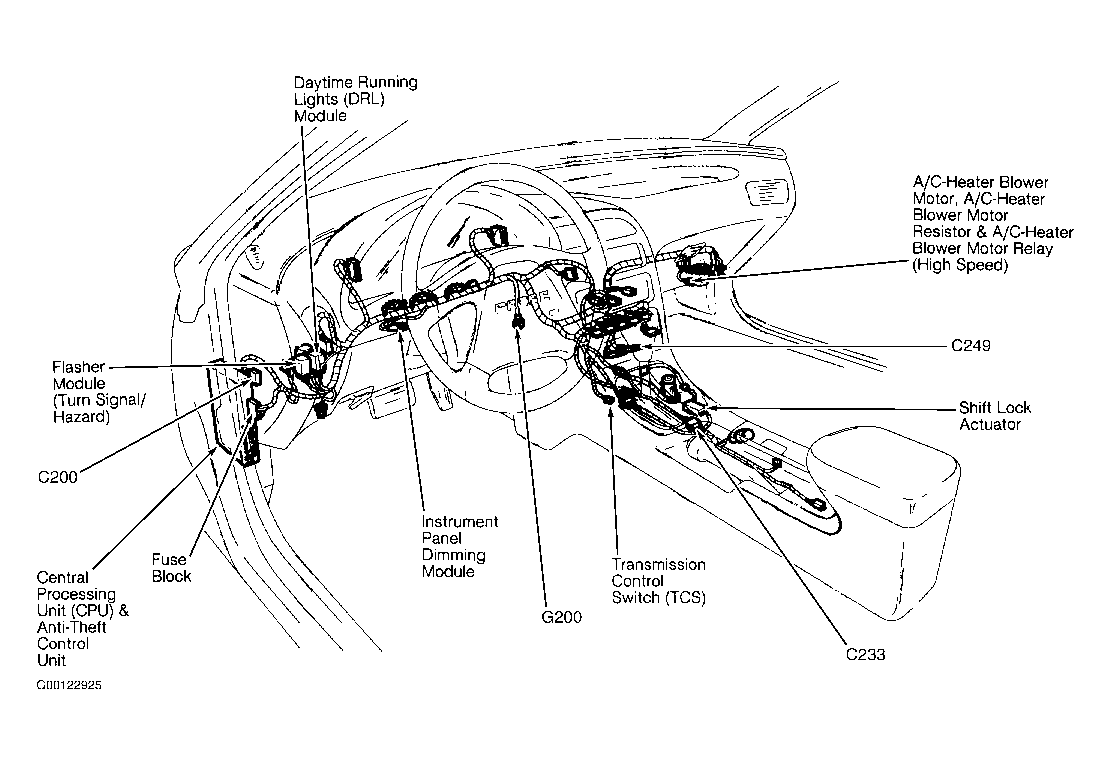

Fuse Block & Instrument Panel Wiring Behind left side of dash, above kick panel. See Figure & Figure .

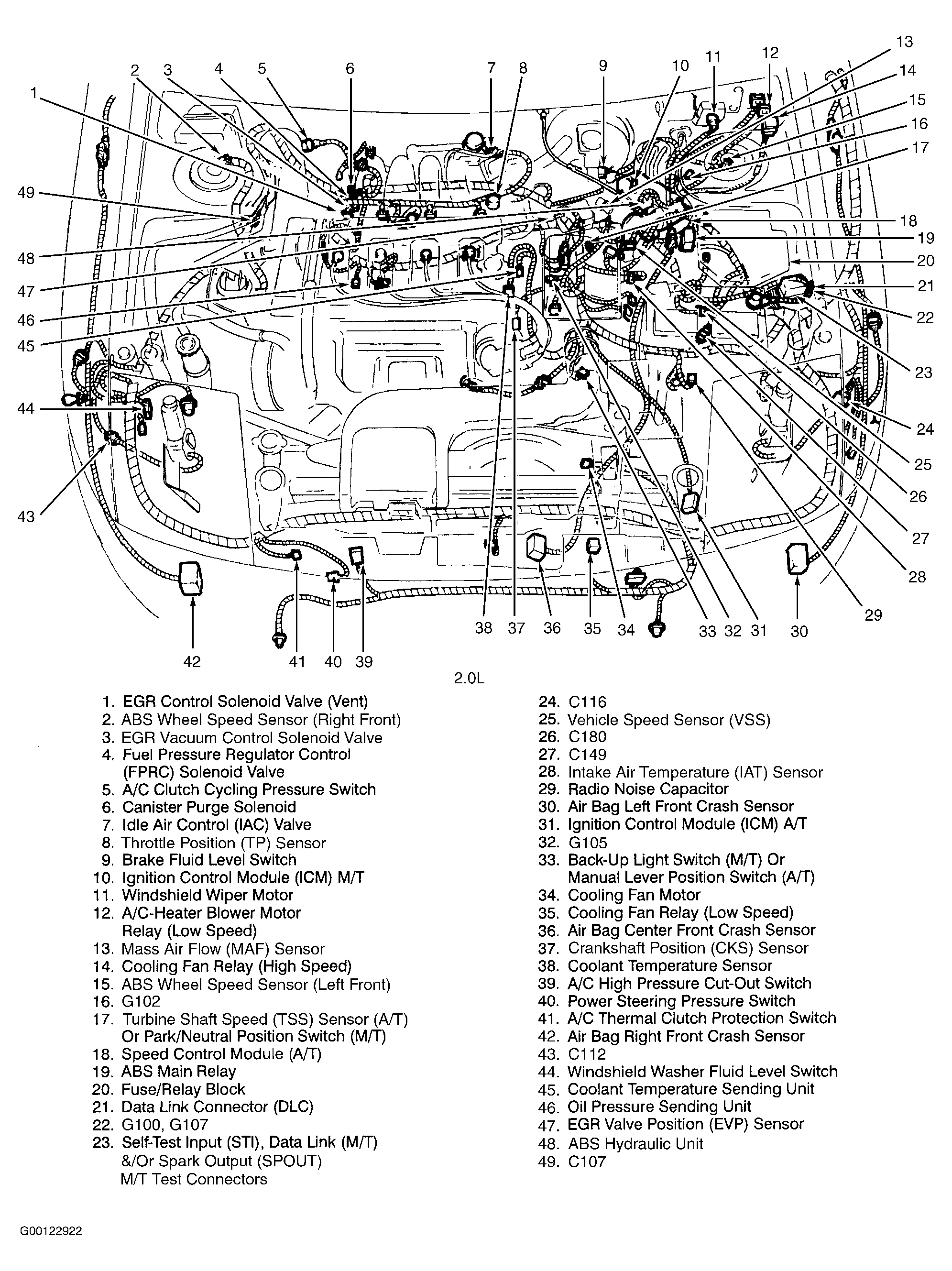

Fuse/Relay Block In engine bay, on left inner fender panel. See Figure .
