Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Behind left side of dash, to left of steering column. See Figure . |
| Air Bag Diagnostic Module | Behind left side of dash, to right of fuse block. See Figure . |
| Anti-Theft Control Unit | Behind left side of dash, on CPU. See Figure . |
| Central Processing Unit (CPU) | Behind left side of dash, on rear of fuse block. See Figure . |
| Daytime Running Lights (DRL) Module | Behind left side of dash, to left of steering column. See Figure . |
| Flasher Module (Turn Signal/Hazard) | Behind left side of dash, to left of steering column. See Figure . |
| Fuel Gauge Sending Unit | Inside fuel tank. See Figure . |
| Ignition Control Module (ICM) A/T | In left front of engine bay near radiator, on frame rail. See Figure . |
| Ignition Control Module (ICM) M/T | In left rear of engine bay, on side of strut tower. See Figure . |
| Instrument Panel Dimming Module | Behind left side of dash, to left of steering column. See Figure . |
| Powertrain Control Module (PCM) | Behind center of dash, forward of center console, near floor. See Figure . |

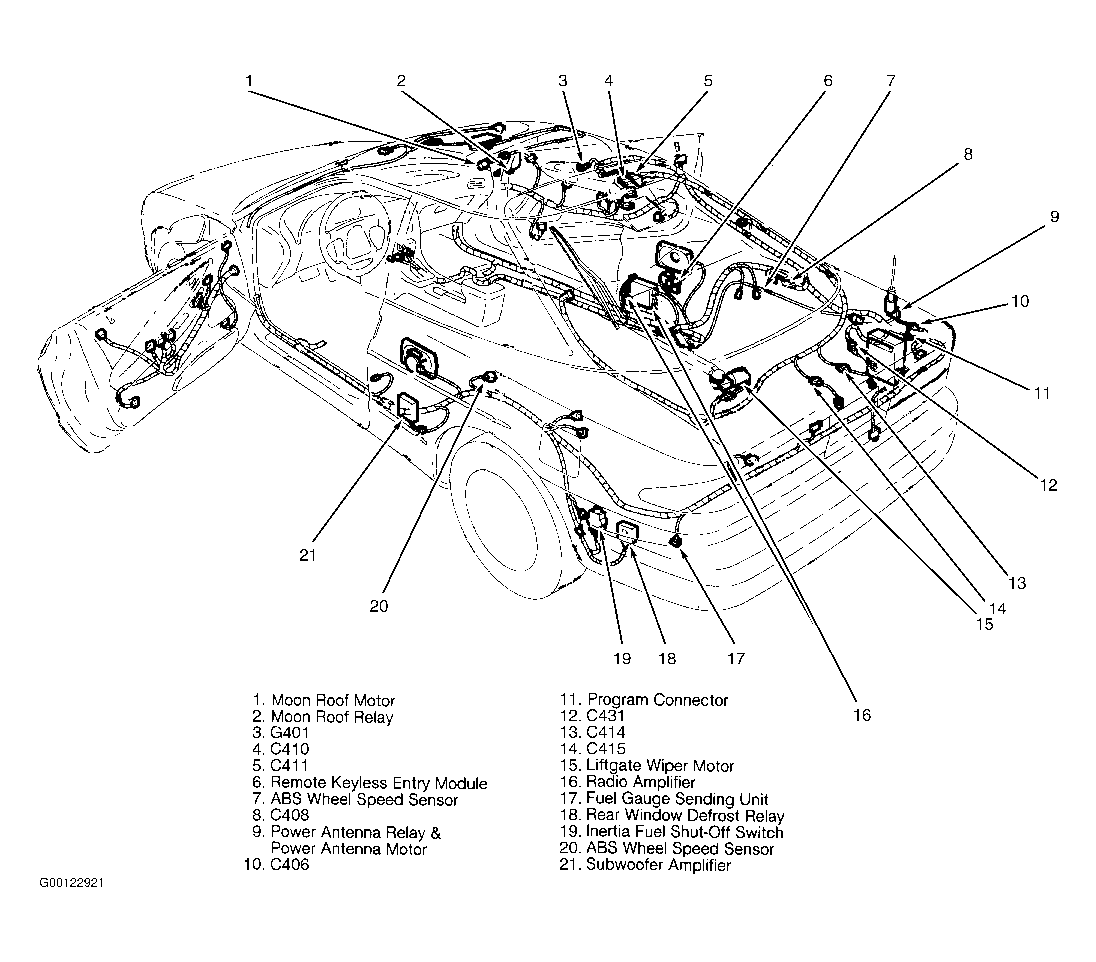

| Remote Keyless Entry Module | On right rear quarter panel, behind trim panel. See Figure . |
| Speed Control Module (A/T) | In left rear of engine bay, near strut tower. See Figure . |
| Speed Control Module (M/T) | Behind left side of dash, left of steering column. See Figure . |
