Circuit Tests: Notes

NOTE: PCM is located forward of center console. For identification of PCM connector terminals, see Fig 1.

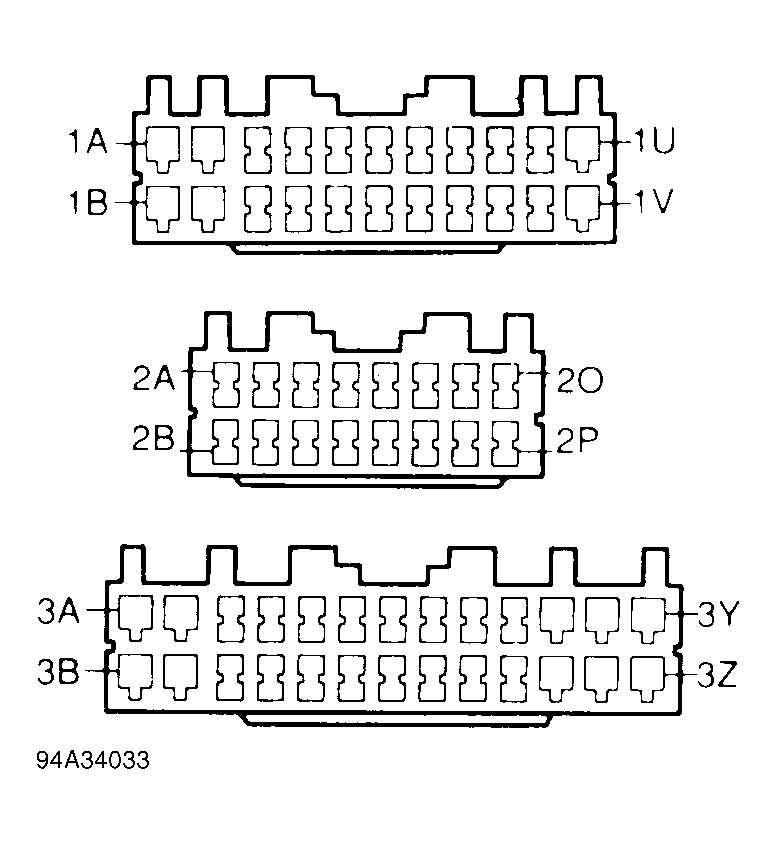

Fig 1: PCM Connector Terminal Identification
G94A34033Courtesy of FORD MOTOR CO.
