Main Relay (Computer/Fuel System): Locations

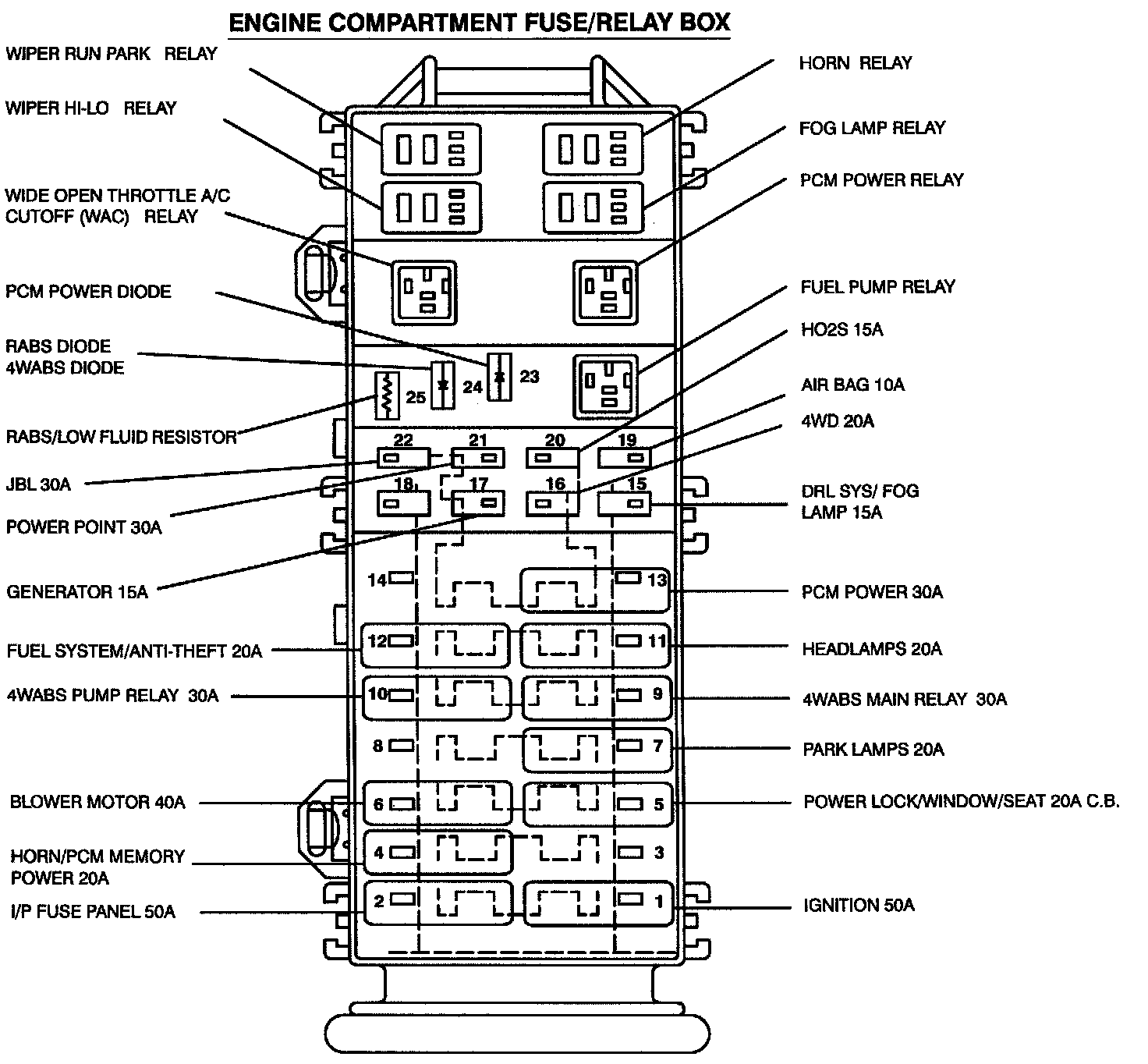

Fuse Panel/Distribution Box:






The PCM Power Relay is located in the engine compartment fuse/relay box.
