Single Switch: Rear

  1. Remove power window switch from vehicle. Test using self-powered test light or ohmmeter. Replace window control switch if continuity is not as specified in testing. With switch in neutral position, continuity should be present between terminals No. 3 and 6, and terminals No. 1 and 7. See Fig 2 .
  2. With master switch in right front UP position, continuity should be present between terminals No. 8 and 11, and between terminals No. 10 and 12. With switch in DOWN position, continuity should be present between terminals No. 2 and 3, and between terminals No. 1 and 7.

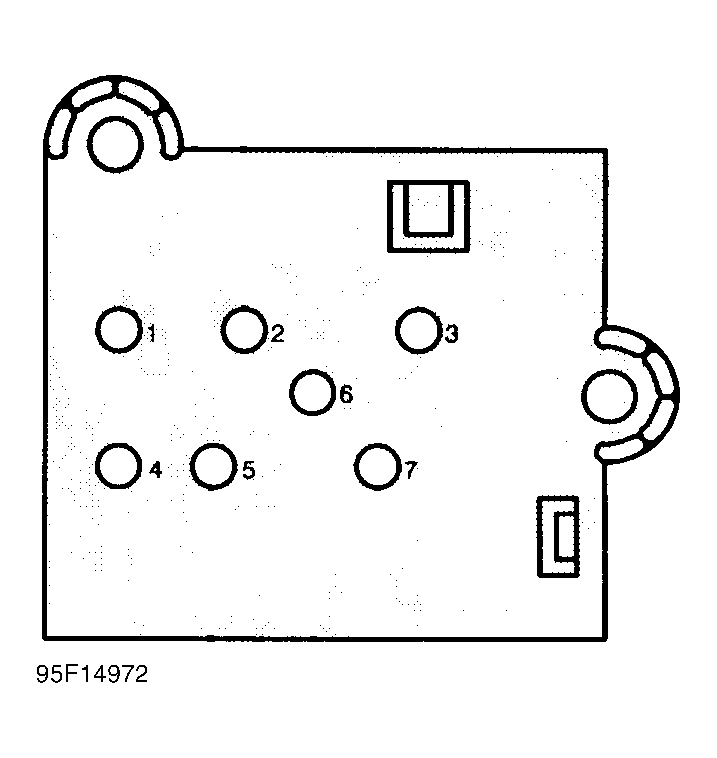

Fig 1: Single Power Window Switch Terminal ID (Sable & Taurus - Right Rear)
G95F14972Courtesy of FORD MOTOR CO.

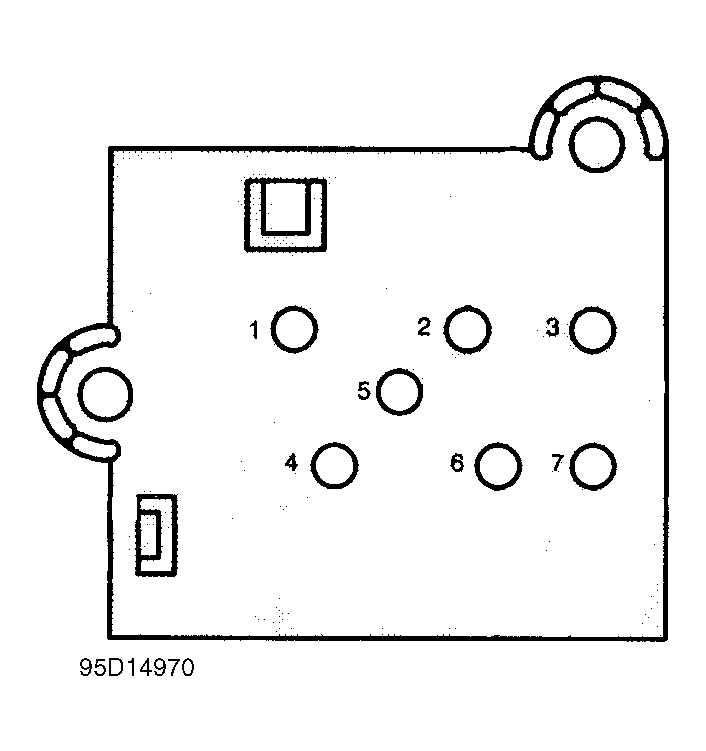

Fig 2: Single Power Window Switch Terminal ID (Sable & Taurus - Left Rear)
G95D14970Courtesy of FORD MOTOR CO.
