Right Front

  1. Remove power window switch from vehicle. Test using self-powered test light or ohmmeter. Replace window control switch if continuity is not as specified in testing. With switch in neutral position, continuity should be present between terminals No. 8 and 11, and terminals No. 9 and 12. See Fig 1 .
  2. With master switch in right front UP position, continuity should be present between terminals No. 8 and 11, and between terminals No. 10 and 12. With switch in DOWN position, continuity should be present between terminals No. 8 and 10, and between terminals No. 9 and 12.

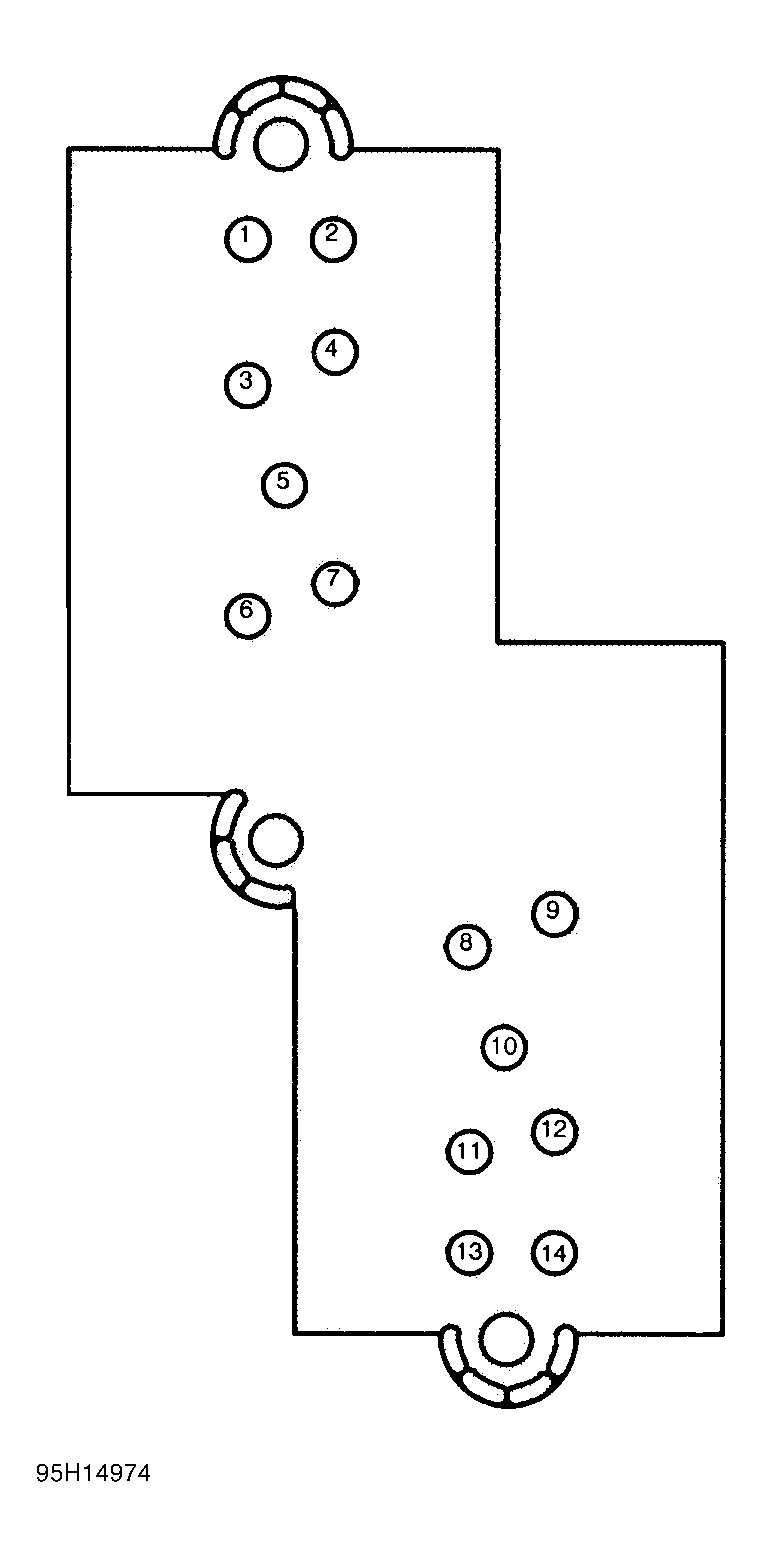

Fig 1: Single Power Window Sw. Terminal ID (Sable & Taurus - Right Front)
G95H14974Courtesy of FORD MOTOR CO.
