Diagnostic Tests Using Warning Light Symptom Sequence Chart: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:

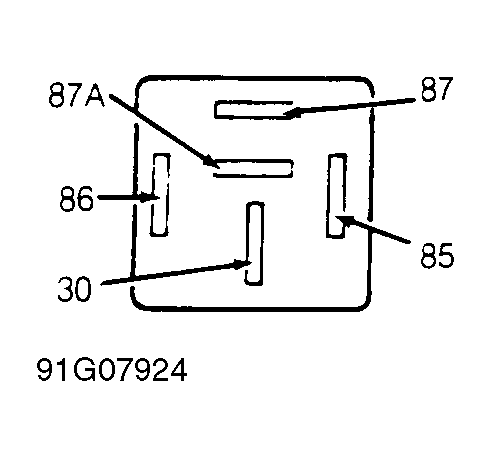

Test procedures require Breakout Box (014-00322) and ABS Adapter (T90P-50-ALA). To identify terminals, see appropriate illustration. See Figure
-14
. See COMPONENT LOCATIONS
for connector and component locations. Measure voltage using digital voltmeter.
