Transmission Position Sensor/Switch: Diagrams

Transmission Range Sensor:

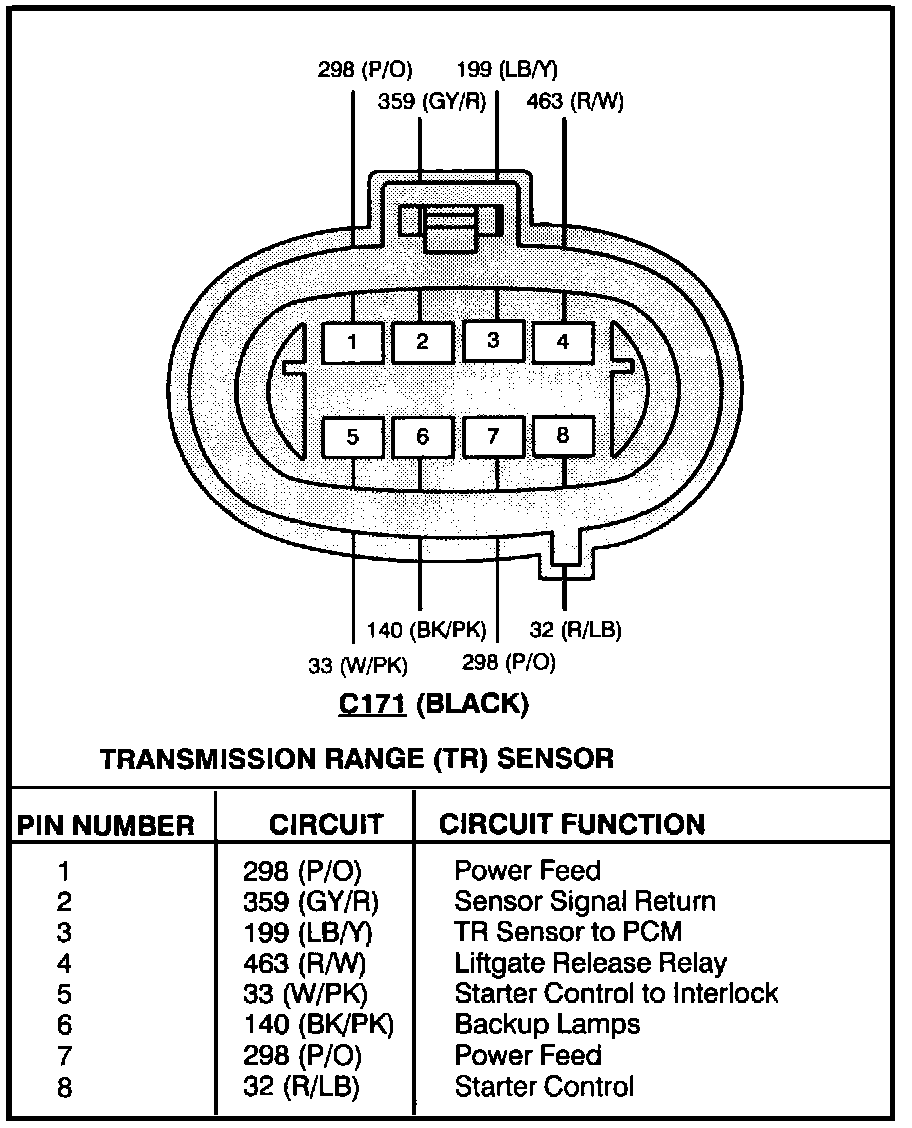

Transmission Range Sensor (With AX4N/AX4S Transmission):

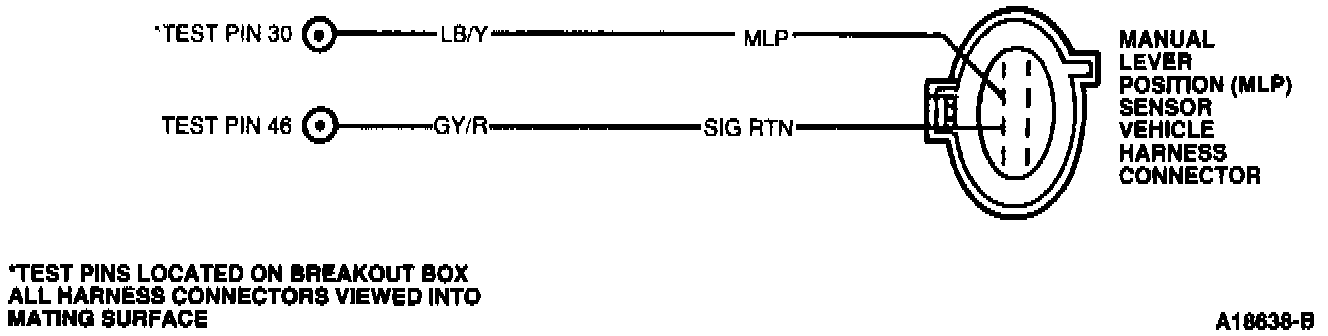

Testing Schematic:
