Right Front Window Control Switch

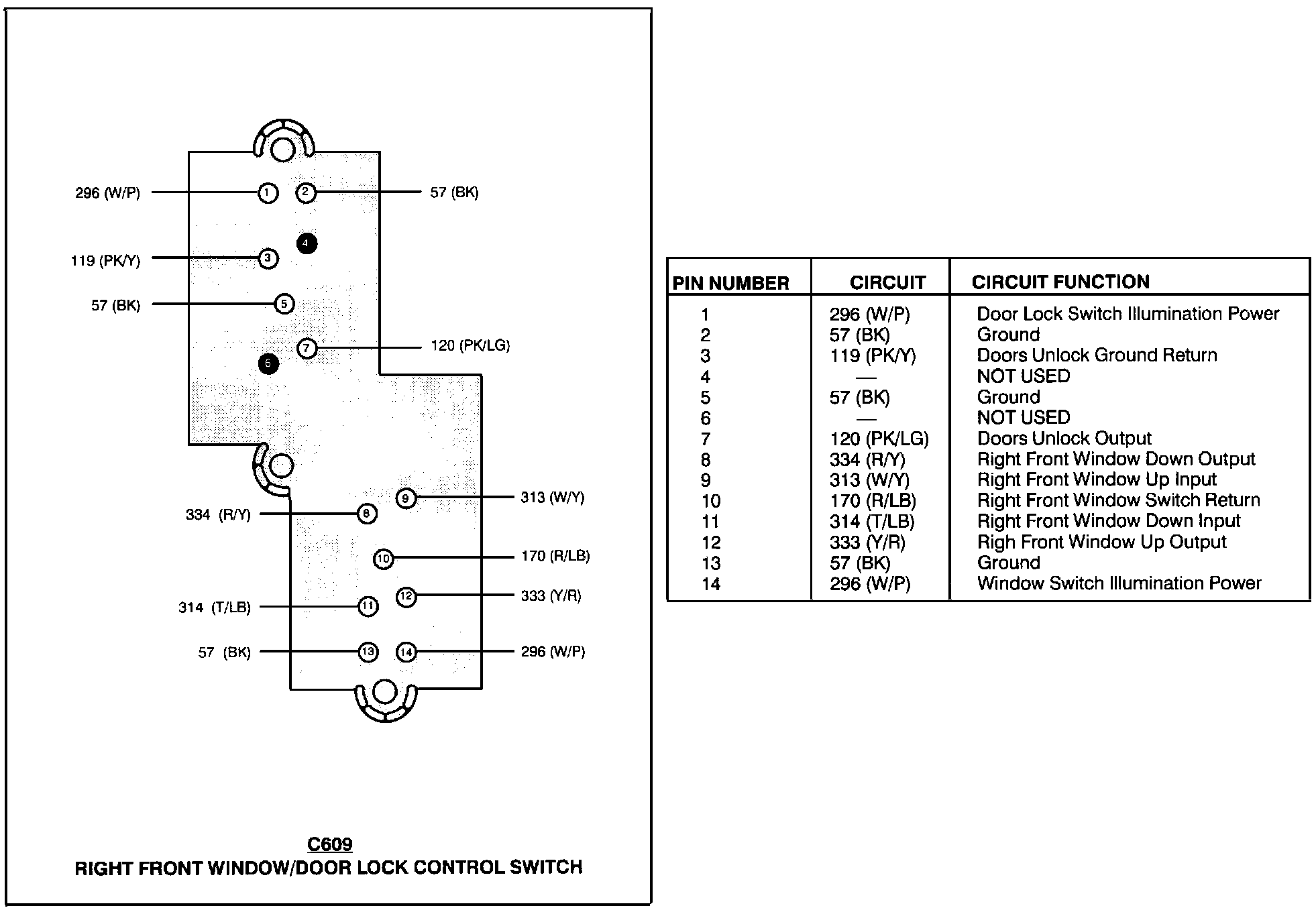

Right Front Window/Door Lock Control Switch:

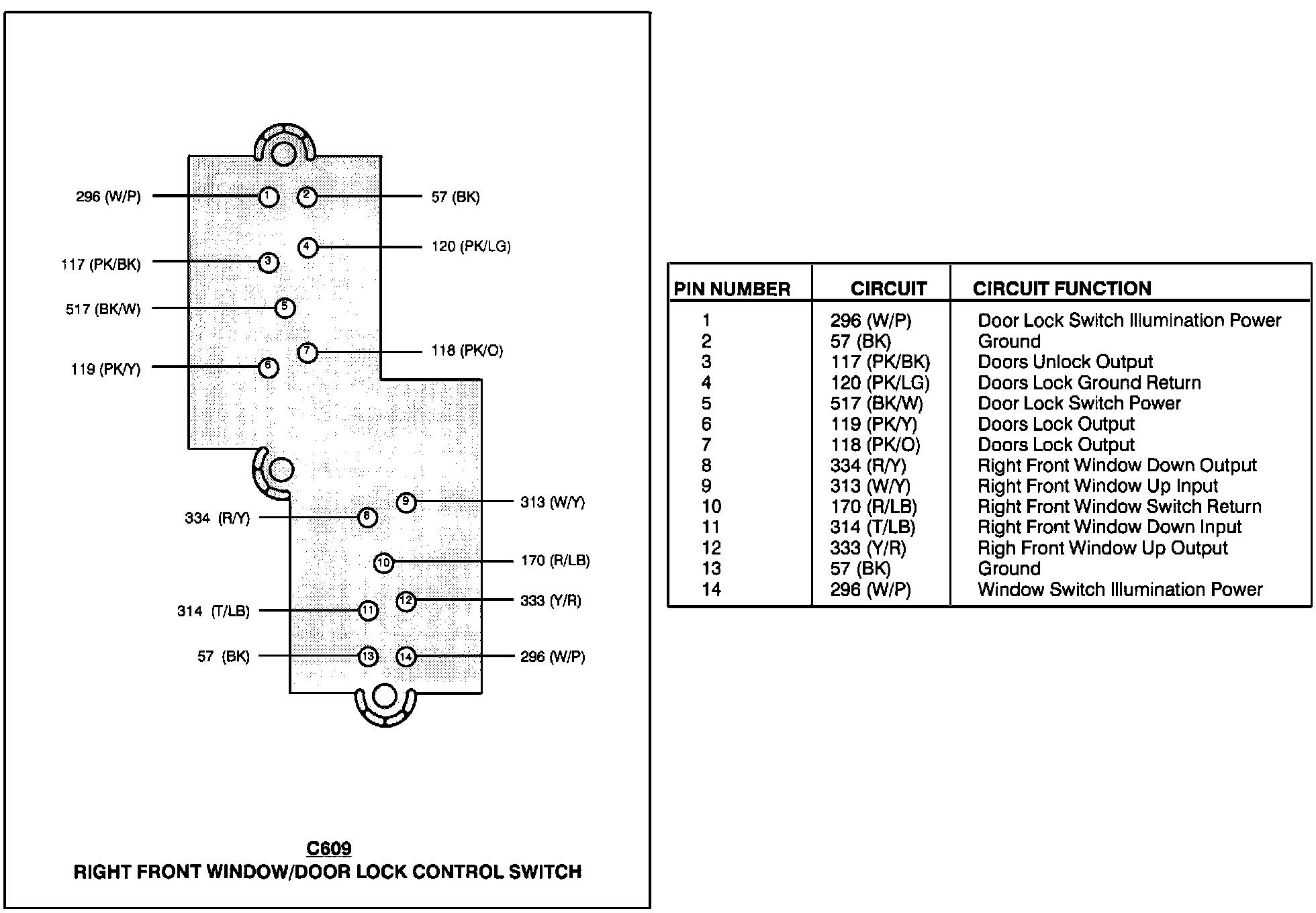

Right Front Window/Door Lock Control Switch:

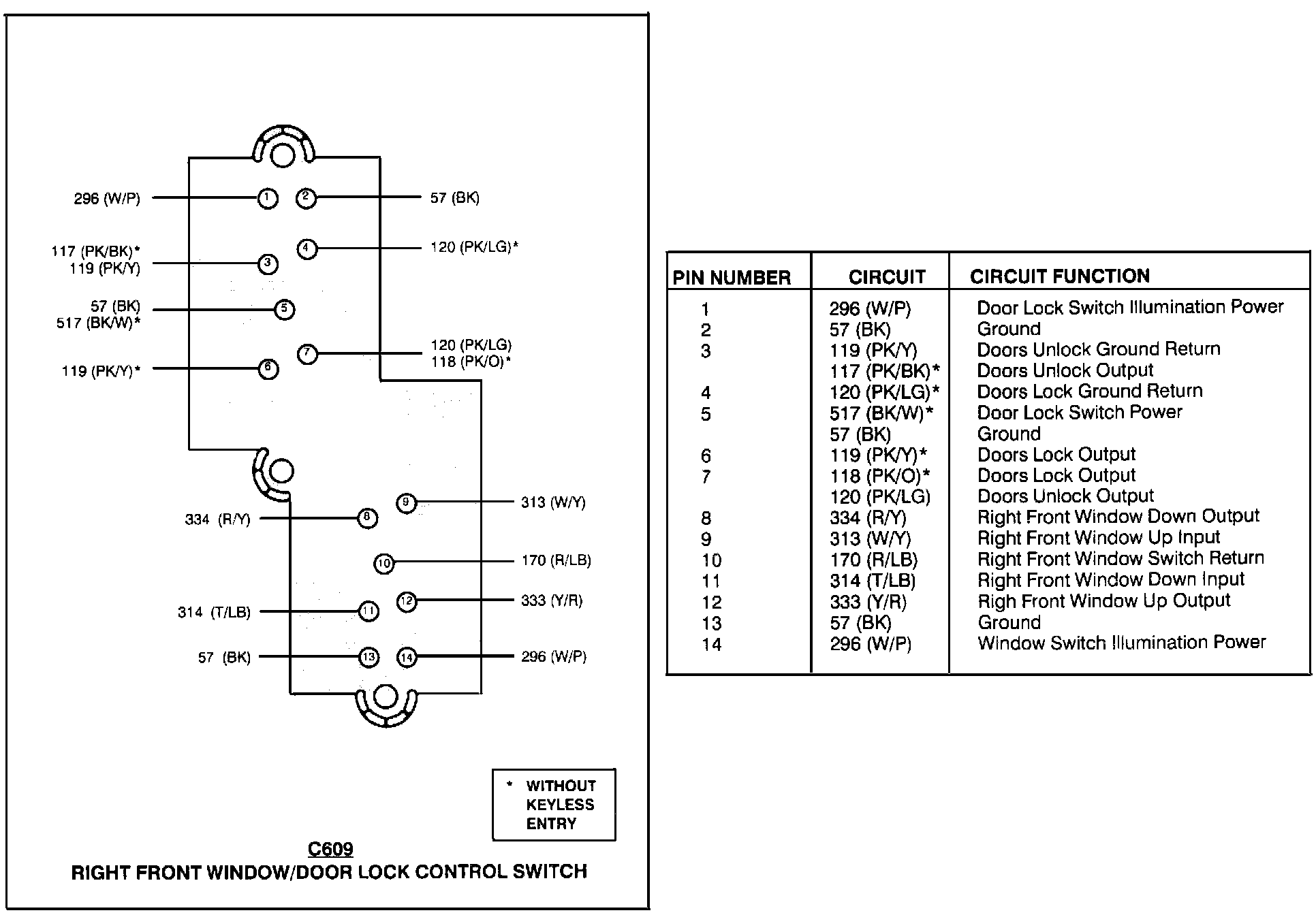

Right Front Window/Door Lock Control Switch:
