Component Locations

NOTE: Ford is providing conflicting information. All information is provided below.

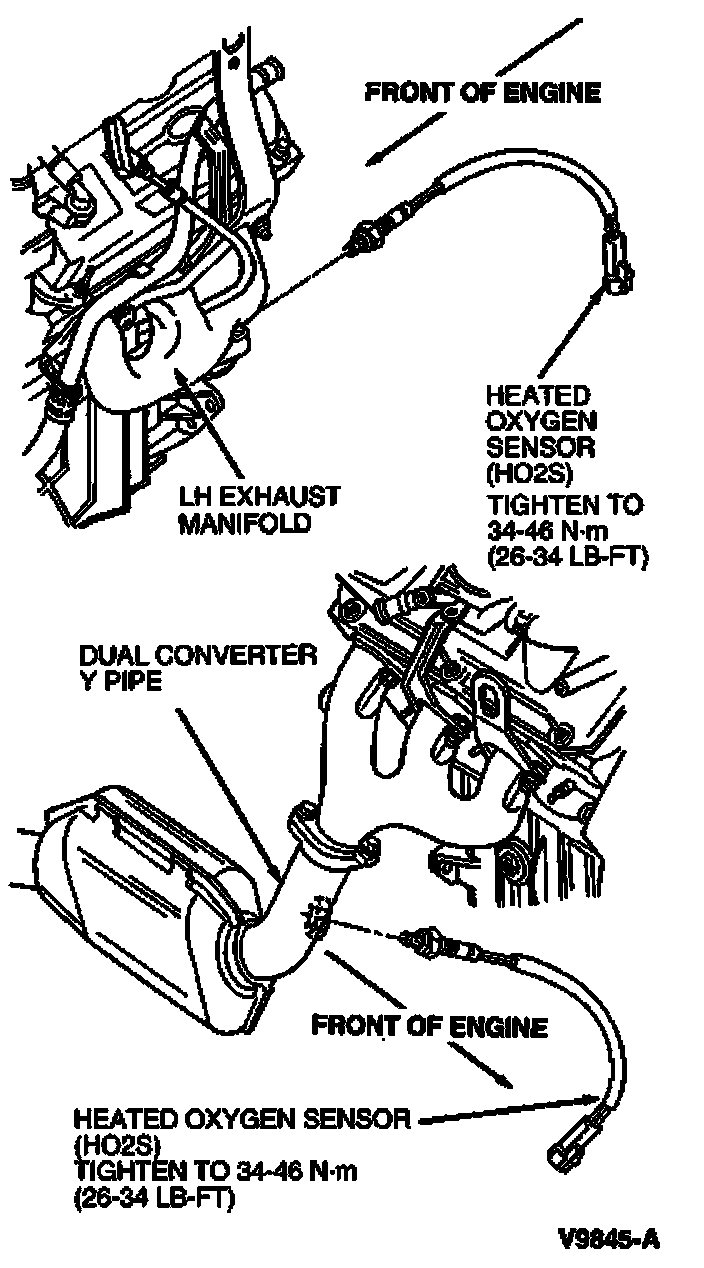

One of the Heated Oxygen Sensors (HO2S) is located in the LH exhaust manifold and the other is located in the dual converter Y pipe.

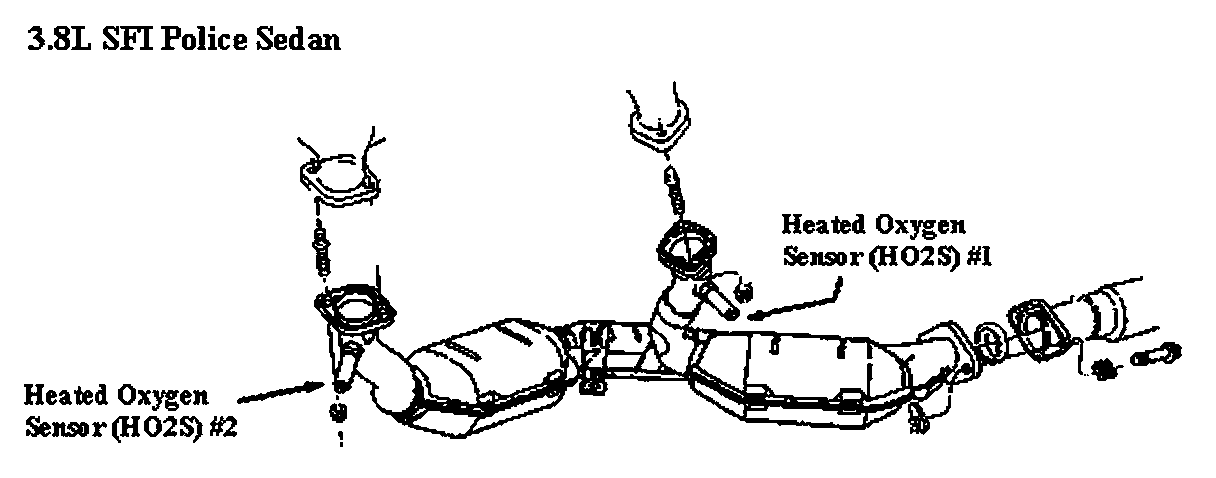

The Heated Oxygen Sensors (HO2S) are located in the dual converter Y pipe.
