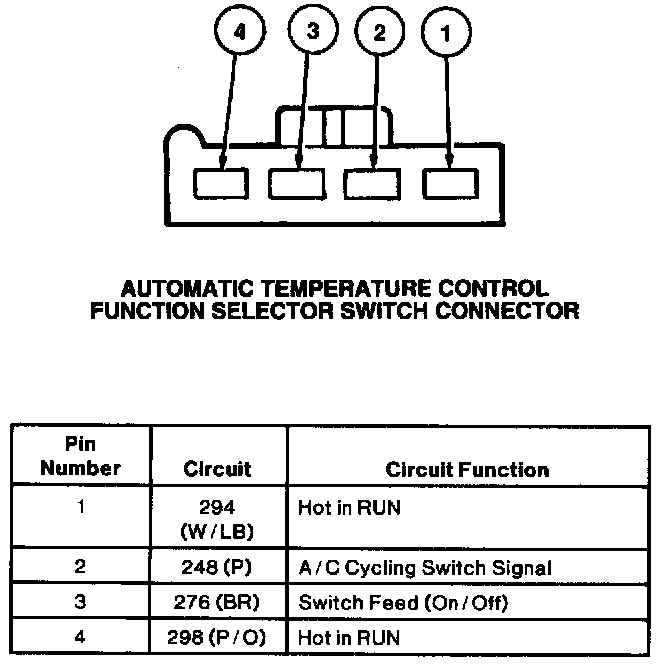

Automatic Temp Control Function Selector Switch Connector
Automatic Temp Control Function Selector Connector:
