Removal & Installation

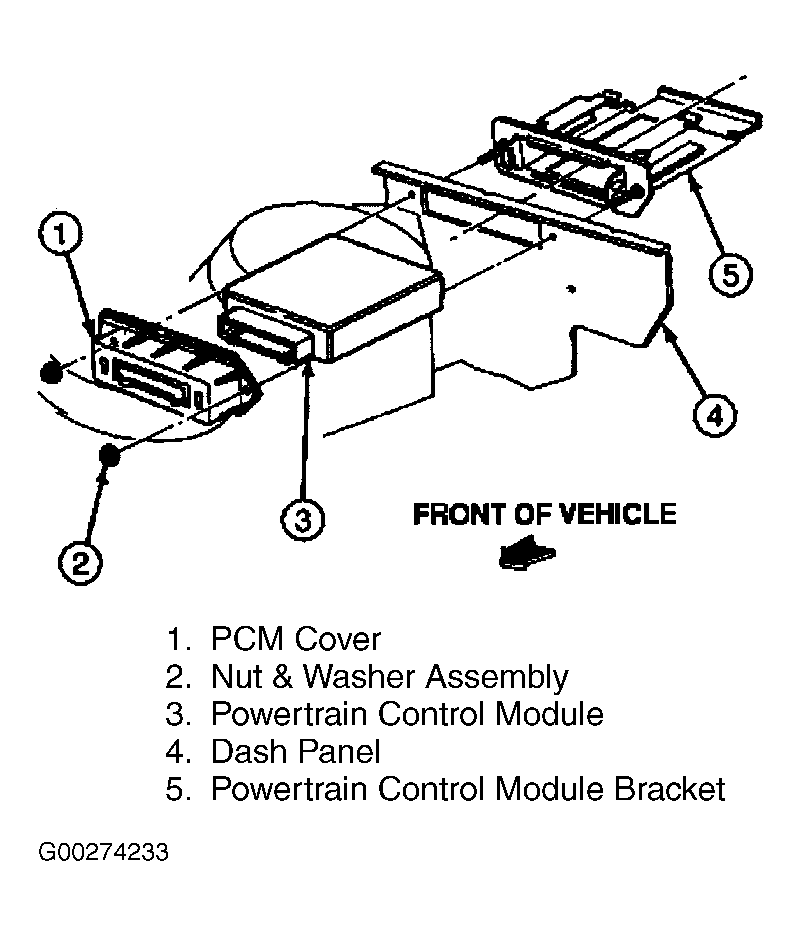

Disconnect negative battery cable. Remove cowl top vent panel. Loosen PCM connector retaining bolt. Unplug harness connector from PCM. Remove 2 PCM cover nuts. See Fig 1 . Remove PCM cover and PCM. To install, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .
PCM LOCATIONS
| Model | Location |
|---|---|
| Windstar | Cowl Area (Passenger side) |
