Pressure Feedback Exhaust Sensor: Service and Repair

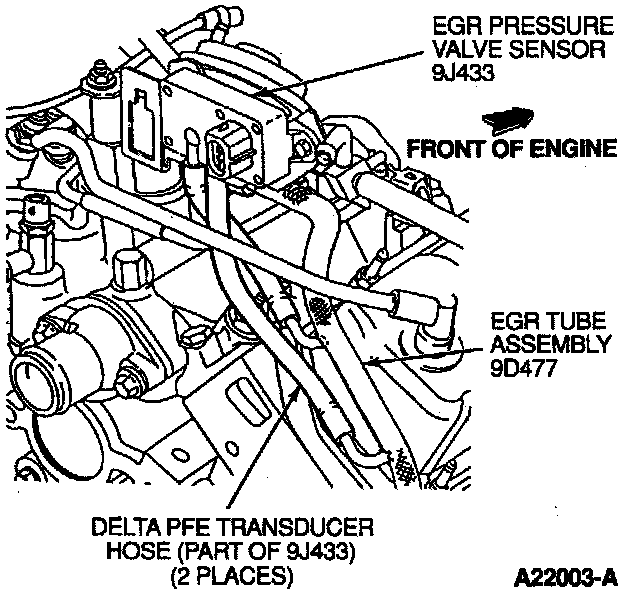

EGR Parts:

REMOVAL
^ Disconnect EGR pressure valve sensor hoses and engine control sensor wiring from EGR pressure sensor. Remove EGR pressure sensor from bracket.

INSTALLATION
^ To install, reverse removal procedure. Tighten retainer nut to 4.5-7.0 Nm (40-61 in lb).
